SU256-SCM

Processor: 6th Gen Intel® Core™
Memory: Up to 8GB
Form Factor: 4″ Single Board Computer
Supports: HDMI
Size: 165 x 115 x 22.1mm
Operating Temperature -20°C to +70°C

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Name
This field is for validation purposes and should be left unchanged.

APPLICATION

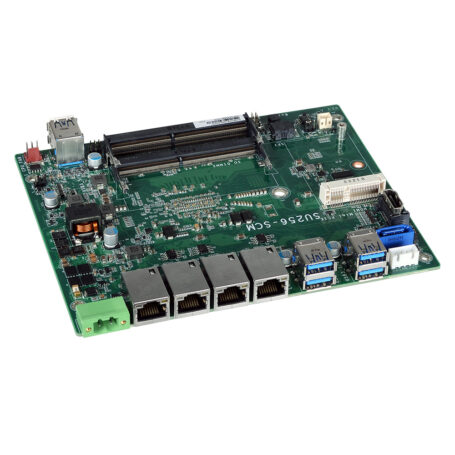

The SU256-SCM is a compact 4” single board computer powered by 6th and 7th Gen Intel® Core™ i7/i5/i3 U-Series processors, offering strong computing in a fanless, low-power design. It supports up to 8GB of DDR4 2400MHz memory via dual SO-DIMM slots and features integrated Intel® HD Graphics with HDMI output, delivering resolutions up to 4096×2304 @ 60Hz.

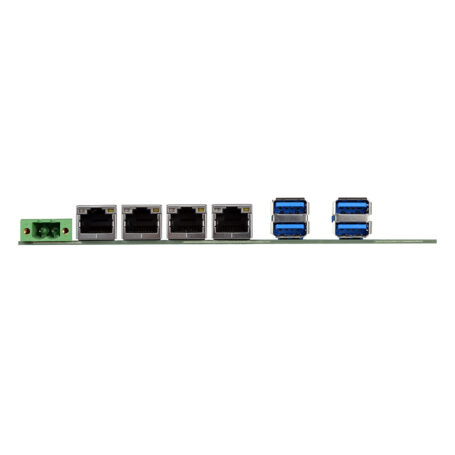

Designed for industrial networking and embedded control, the SU256-SCM includes four Intel® GbE LAN ports, six USB 3.0 ports, and a full-size Mini PCIe slot for expansion. Storage flexibility comes from onboard mSATA and SATA 3.0 support. The board operates on a wide 15–36V DC input through a terminal block and is built for harsh environments with a temperature range of -20°C to 70°C.

With TPM 2.0 (optional), watchdog timer, and support for Windows and Linux OS, the SU256-SCM is ideal for edge computing, network appliances, and embedded systems needing reliable performance in space-constrained, rugged conditions.

feature list

Dual-channel DDR4 2400MHz memory across 2 SO-DIMM slots
Supports single HDMI display up to 4096x2304 @ 60Hz resolution
Multiple Ethernet interfaces: 3 x Intel I210IT and 1 x Intel I219LM with iAMT 9.5 support
Rich connectivity with 6 USB 3.0 ports (4 rear, 2 front)
1 x Mini PCIe slot
1 x mSATA and 1 x SATA 3.0 for flexible storage options
Wide voltage input range from 15V to 36V via terminal block
Supports TPM 2.0 (optional)
Fanless thermal design
MTBF up to 273,084 hours at 25°C

Downloads

Click on the link below for an instant download.

SU256-SCM Datasheet
