APPLICATION

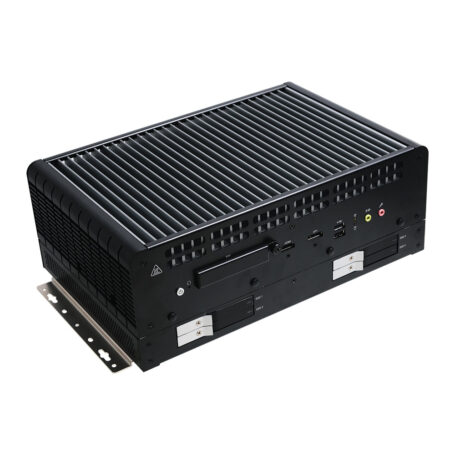

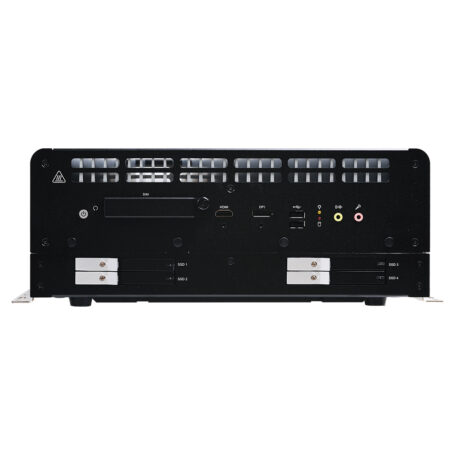

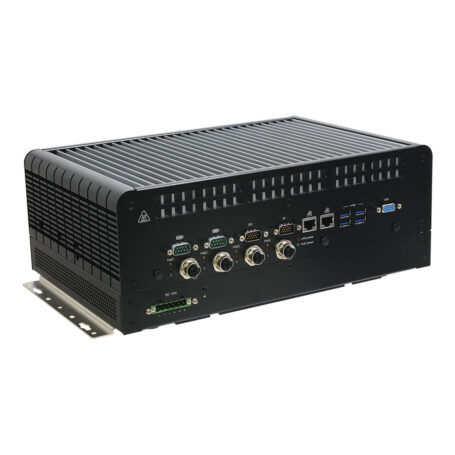

DFI’s RC300-CS is a railway-ready embedded system built around 8th/9th Gen Intel® Core™ processors on the Intel® Q370 platform, designed for high-reliability onboard and trackside computing where AI inference, video analytics and multi-display control are required.
With MXM expansion for NVIDIA® GPUs, rugged M12 PoE for IP cameras, and wide-range DC input options tailored to rolling stock, it delivers compute, acceleration and I/O headroom in a fanless, hardened chassis.
Compliance to EN50155, EN50121-3-2, EN45545 and EN61373 underpins operation in shock, vibration and EMC-challenging rail environments, helping customers meet certification targets. Typical uses include onboard CCTV/NVR, passenger information, condition monitoring, and edge AI for safety and operations across rail and related transport sectors.
feature list
MXM Type A/B/C slot supporting NVIDIA Quadro/GeForce/RTX embedded GPUs.
Four M12 X-coded 802.3af PoE ports (15.4W each).
Triple display output with VGA, HDMI (screw-lock) and DP++ up to 4K.
Hot-swappable 2×/4× 2.5" SSD bays with locks.
Three externally accessible SIM slots and seven SMA antenna holes.
Dual isolated 8-bit DI and 8-bit DO with 2 kV isolation.
Wide-range DC input options, including 110 VDC rail variant and 9–36 VDC model.
Optional integrated UPS kit providing at least 5 minutes non-stop operation at full load.
Comprehensive networking with 2× RJ-45 GbE plus 5× Intel® industrial NICs.
Ruggedised design meeting EN50155, EN50121-3-2, EN45545 and EN61373.
| MODEL NUMBER | PROCESSOR | STORAGE | MXM MODULE |
|---|---|---|---|
| 750-RC3000-000G | Intel® Core™ i7-9700TE | 4x SSD bays | MXM RTX3000 |
| 750-RC3000-100G | Intel® Core™ i7-9700TE | 4x SSD bays | MXM RTX3000 |
| 755-RC3000-600G | Intel® Core™ i7-9700TE | 2x SSD bays | MXM RTX3000 |
| 750-RC30L0-000G | Intel® Core™ i7-9700TE | 2x SSD bays | N/A |
| See datasheet for accessories | |||
