APPLICATION

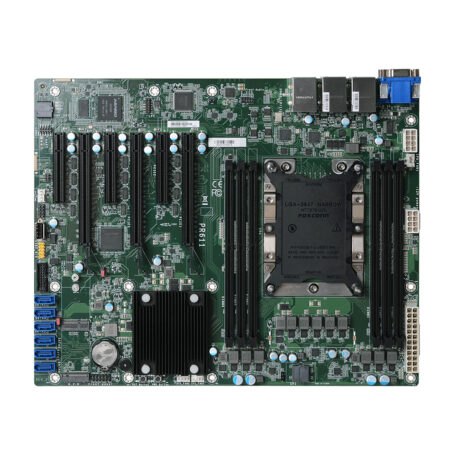

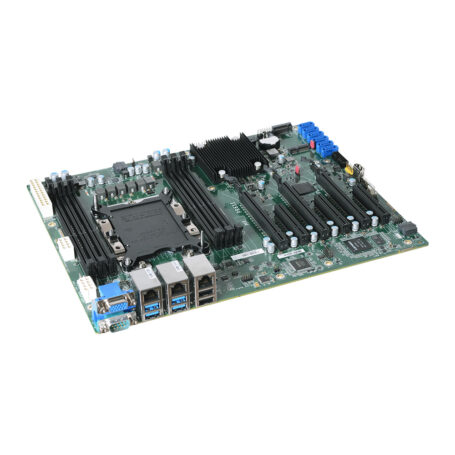

The PR611-C621 is a high-performance ATX server-grade motherboard built for intensive computing and data centre applications. Supporting both 1st and 2nd Gen Intel® Xeon® Scalable processors on the LGA 3647 socket, it features the Intel® C621 chipset and up to 384GB of ECC-RDIMM DDR4 memory across six DIMM slots, supporting speeds up to 2933 MHz. Designed with enterprise flexibility in mind, it includes rich expansion capabilities: three PCIe x16 slots, three PCIe x8 (shared), and dual M.2 slots for storage and wireless connectivity.

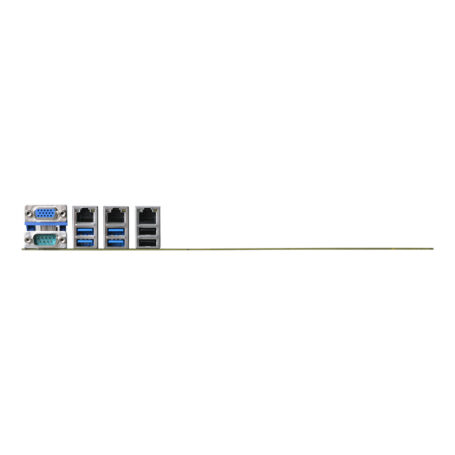

The board offers a wide I/O range with two Intel® I210AT GbE LAN ports, up to six SATA 3.0 connectors, one RS-232 serial port, and a total of 11 USB ports—six USB 3.1 Gen1 and five USB 2.0. A BMC (AST2500) is optionally available for IPMI remote management, and TPM 2.0 support enhances hardware-level security. It supports standard ATX power input and operates in environments from -5°C to 65°C.
Ideal for server deployments, industrial storage, network appliances, and virtualisation workloads, the PR611-C621 delivers enterprise reliability, manageability, and robust I/O in a standard ATX footprint.
feature list
Supports up to 384GB DDR4 ECC-RDIMM memory across 6 slots
Compatible with Intel Optane DC Persistent Memory (DCPMM)
Multiple expansion slots: 3 PCIe x16, 3 PCIe x8, 2 M.2 (M key & E key)
Dual Intel I210AT Gigabit Ethernet ports
Rich I/O: 6 SATA 3.0, 5 USB 2.0, 6 USB 3.1 Gen1, 1 COM port
IPMI management support with RTL8211F (optional)
TPM 2.0 support (optional)
Wide power input support with both 8-pin and 24-pin ATX connectors
Advanced thermal management with support for 3 system fans and 1 CPU fan
High MTBF of over 558,000 hours at 25°C
| MODEL NUMBER | VGA | IPMI-Mgmt | TPM |
|---|---|---|---|
| 770-PR6111-000G | 1 | 1 | 0 |
| 770-PR6111-100G | 0 | 0 | 0 |
| 770-PR6111-200G | 1 | 1 | 1 |
| 770-PR6111-300G | 0 | 0 | 1 |
| 770-PR6111-400G | 1 | 0 | 1 |
