PH10FEU

Processor: Intel® Coffee Lake Processor
Memory: Up to 128GB
Form Factor: MicroATX
Supports: Triple Display Display Port & DVI
Size: 244 x 244 mm
Operating Temperature 0°C to +60°C

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Phone
This field is for validation purposes and should be left unchanged.

APPLICATION

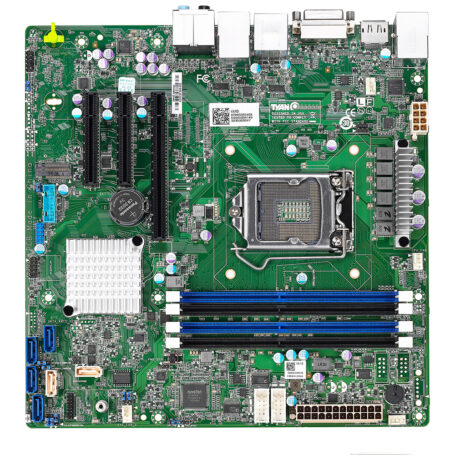

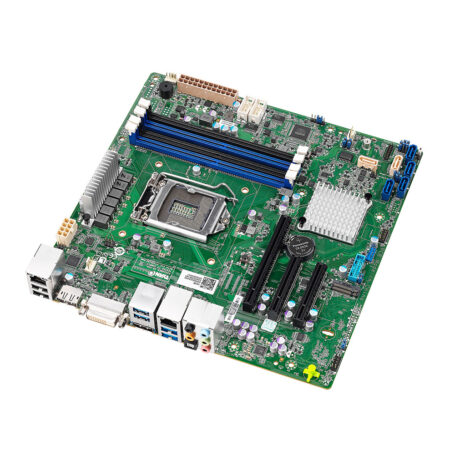

The PH10FEU is a Micro-ATX industrial motherboard supporting 8th and 9th Gen Intel® Coffee Lake processors, including Core i9/i7/i5/i3, Pentium, and Celeron CPUs with up to 95W TDP. Featuring the Intel® Q370 or H310 chipset, it offers up to 128GB DDR4 memory and supports Intel® vPro technology for enterprise-grade manageability.

This board enables triple independent displays through two DisplayPort 1.2 and one DVI-D output, with support for 4K resolution. It includes one PCIe x16, up to two PCIe x4, an M.2 slot, and six SATAIII ports with RAID capabilities on Q370 models. Connectivity is extensive, with dual Intel® Gigabit LAN, USB 3.1 Gen2, USB 3.0, USB 2.0, and four COM ports. With CE and FCC Class B certifications, the PH10FEU is ideal for embedded, industrial automation, and digital signage applications.

feature list

Intel® Coffee Lake Core i7/i5/i3/Pentium/Celeron LGA1151 processors
Intel® Q370 / H310 Chipset
Intel® vPro technology supported
4 x DDR4 DIMM, support up to 128GB
Support triple display for 2 x DisplayPort and DVI
Support PCIe X16 (Gen 3) slot, 2 x PCIe X4 (Gen 3) slot, and M.2 slot
6 x SATAIII (support RAID 0, 1, 5, 10 w/ Q370)
2 x Intel® Gigabit Ethernet
4 x USB 2.0, 2 x USB 3.0, 4 x USB3.1 (Gen 2), 4 x COM
ATX power input

MODEL NUMBER	CHIPSET	MEMORY SLOT	EXTERNAL USB 3.1/3.0/2.0	PCIe x4
PH10FEU-Q370	Intel® Q370	4 (up to 128GB)	4/0/2	2
PH10FEU-H310	Intel® H310	2 (up to 64GB)	0/2/4	1

Downloads

Click on the link below for an instant download.

PH10FEU Datasheet
