APPLICATION

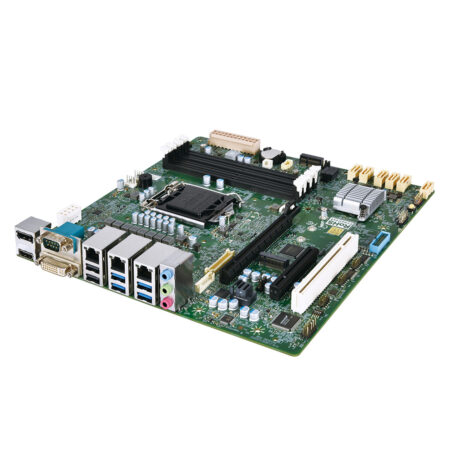

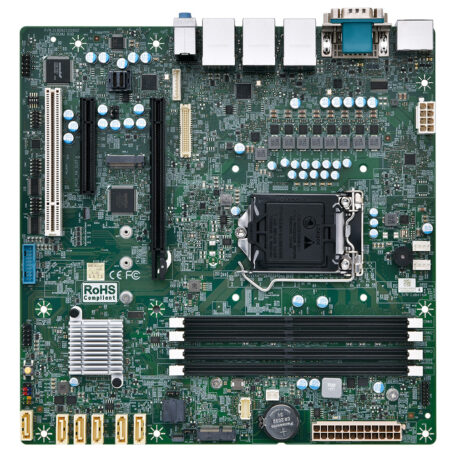

The PH10CMU is a versatile Micro-ATX motherboard supporting 10th and 11th Gen Intel® Comet Lake processors up to 125W TDP via the LGA1200 socket. Featuring H420E, Q470E, or W480E chipsets, it supports Intel® vPro and up to 64GB DDR4 memory. Expansion includes a PCIe x16 slot, a PCIe x8 slot, a legacy PCI slot, plus M.2 NVMe and CNVi interfaces.

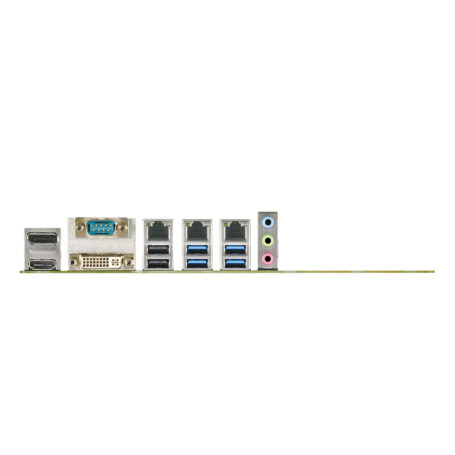

Triple independent 4K displays are supported via DisplayPort, HDMI, and DVI, while connectivity options include up to three Intel® 2.5GbE LAN ports, six USB 3.2 Gen1, four USB 2.0, and four COM ports. With RAID support across up to five SATA III ports and CE/FCC certification, the PH10CMU is ideal for industrial computing, IoT gateways, and edge AI systems.
feature list
Up to Intel® Comet Lake 10th/11th Gen i9 125W (10 Cores) LGA1200 processor
Intel H420E / Q470E / W480E Chipset
Intel® vPro technology supported
4 x DDR4 DIMM, support up to 64GB
Support 1 x PCIe X16 slot, 1 x PCIe X8 slot, and 1 x PCI slot
1 x M.2 2280M-key (NVME), 1 x M.2 2230 E-key (CNVi)
Support triple display for 1 x DisplayPort, 1 x HDMI and 1 x DVI
Up to 5 x SATAIII (support RAID 0, 1, 5, 10)
Up to 3 x Intel® 2.5 Gigabit Ethernet
Up to 6 x USB 3.2 Gen1, 4 x USB 2.0, 4 x COM ports
ATX power input
