APPLICATION

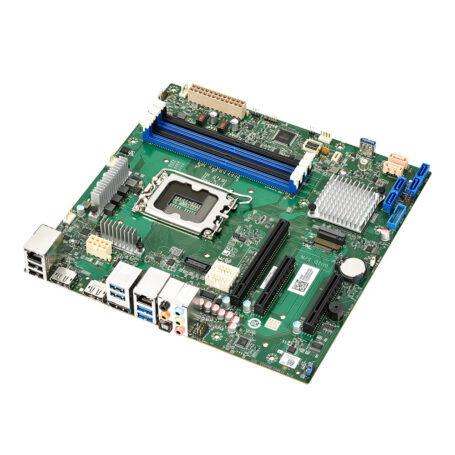

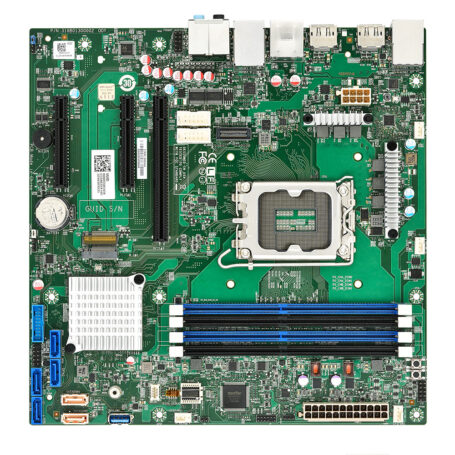

The PH10ADU is a high-performance Micro-ATX motherboard built for Intel® 14th, 13th, and 12th Gen Raptor Lake-S and Alder Lake-S processors, supporting up to 125W TDP. Powered by the Intel® Q670 chipset, it offers Intel® vPro support and up to 128GB DDR4 memory across four DIMM slots. It includes one PCIe x16, two PCIe x8 (x4 lanes), dual M.2 NVMe slots, and supports triple 4K display via three DisplayPort outputs.

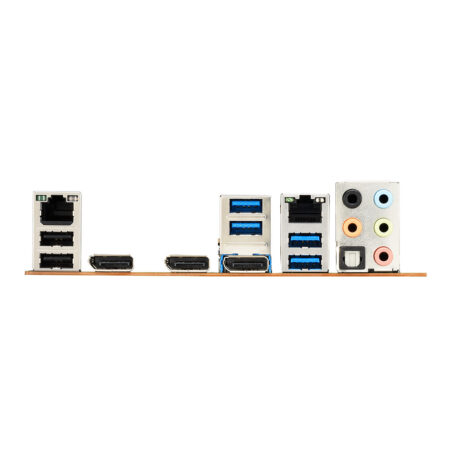

Connectivity includes dual Intel® Gigabit LAN, up to seven USB 3.2 Gen1 ports, four USB 2.0, and two COM ports. Storage is robust with six SATA III ports supporting RAID 0, 1, 5, 10. Designed for industrial and embedded applications, the board meets CE and FCC Class B standards and operates reliably from 0–60°C.
feature list
Intel® Raptor Lake-S Refresh 14th/Raptor Lake-S 13th /Alder Lake-S 12th i9/i7/i5/i3 125W processor
Intel® Q670 Chipset
Intel® vPro technology support (Q670)
4x DDR4 U-DIMM up to 128GB
1 x PCIe X16 slot, 2 x PCIe X8 slot (x4 Lanes), 2 x M.2 2280/2210 M-key (NVME)
Support triple display for 3 x DisplayPort
Up to 6 x SATAIII (support RAID 0, 1, 5, 10)
Up to 2 x Intel® Gigabit Ethernet
Up to 7 x USB 3.2 Gen1, 4 x USB 2.0, 2 x COM ports
ATX power input
