APPLICATION

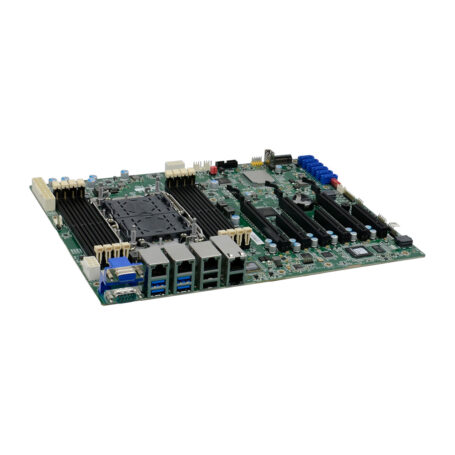

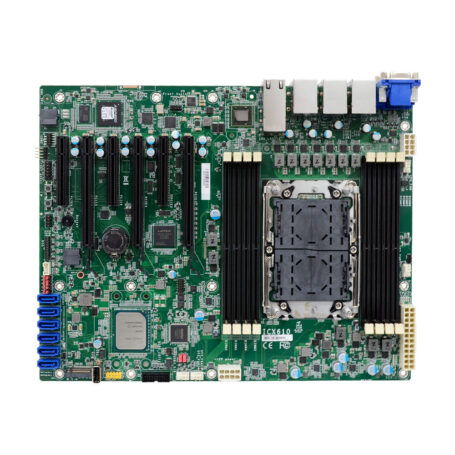

The ICX610-C621A from DFI is a robust ATX server-grade motherboard built for the 3rd Gen Intel® Xeon® Scalable Processor Family using the LGA4189 socket. Designed for high-performance computing and data-intensive enterprise workloads, it supports up to 512GB of ECC DDR4 RDIMM memory across eight slots at speeds up to 3200MHz.
Powered by the Intel® C621A chipset, this board offers exceptional expansion capability with three PCIe Gen4 x16 slots, two PCIe Gen4 x8 slots, and one M.2 M-key slot for NVMe or SATA storage. Networking is enterprise-class, with dual Intel® 10GbE ports, dual Intel® 1GbE ports, and a dedicated IPMI LAN for out-of-band remote management. It also integrates BMC with AST2500 for IPMI support and remote KVM access.
Rear I/O includes VGA, USB 3.1 Gen1, USB 2.0, and dual COM ports, while internally it supports RAID 0/1/5/10 on six SATA ports, front audio, 16-bit GPIO, TPM 2.0, and watchdog timer. With CE, FCC, and UKCA certifications and operating support for Windows Server and Linux, the ICX610-C621A is an ideal solution for edge servers, virtualisation hosts, and industrial back-end systems in mission-critical environments.
feature list
Supports 3rd Gen Intel® Xeon® Scalable Processors (LGA 4189)
Up to 512GB ECC DDR4 RDIMM memory across 8 DIMM slots
Triple PCIe Gen4 x16 and dual PCIe Gen4 x8 expansion slots
Dual 10GbE (Intel® X550-AT2) and dual 1GbE (Intel® I210AT) LAN ports
Dedicated IPMI management via Realtek RTL8211F
Integrated AST2500 BMC graphics with VGA support
1 x M.2 2280 M key slot supporting PCIe Gen3 x4 NVMe or SATA
Six SATA 3.0 ports with RAID 0/1/5/10 support
Rich I/O: 6 USB 3.1 Gen1, 5 USB 2.0, 2 COM ports, 1 front audio
Infineon TPM 2.0 for secure hardware-based encryption
Optional extras: See datasheet
| MODEL NUMBER | 10GbE | IPMI | VGA | COM |
|---|---|---|---|---|
| 770-ICX6101-000G | 2 | 1 | 1 | 2 |
| 770-ICX6101-100G | 2 | 0 | 1 | 1 |
| 770-ICX6101-200G | 2 | 0 | 0 | 1 |
| 770-ICX6101-300G | 0 | 0 | 1 | 1 |
| 770-ICX6101-400G | 0 | 1 | 1 | 2 |
