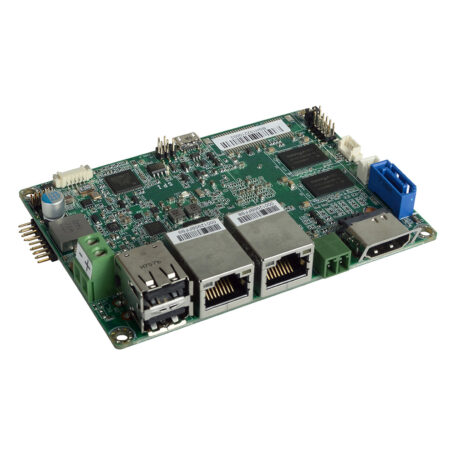

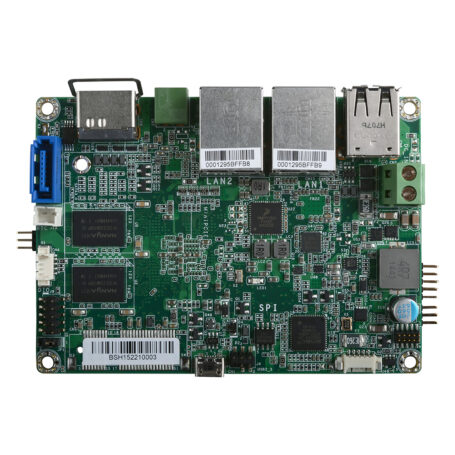

FS053

Processor: NXP i.MX6 Processor
Memory: Up to 4GB
Form Factor: 2.5″ Single Board Computer
Supports: HDMI & LVDS
Size: 100 x 72 x 21.75 mm
Operating Temperature -20°C to +70°C

Make an Enquiry

Phone
This field is for validation purposes and should be left unchanged.
Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA

APPLICATION

The FS053 is a compact 2.5″ Pico-ITX single board computer powered by the NXP i.MX6 Cortex-A9 DualLite or Quad processor, delivering efficient ARM-based performance for embedded applications. With up to 4GB DDR3L memory down and support for both Yocto and Android, it offers flexible platform compatibility for industrial and HMI systems.

This board supports dual independent displays via HDMI and LVDS, making it suitable for graphical interfaces and digital signage. It includes two GbE LAN ports, four USB 2.0 (including OTG), two COM ports, and expansion via full-size Mini PCIe and microSD. SATA 2.0 support is available on Quad-core models.

With wide 9–36V DC input, fanless operation, and an extended operating temperature range of -20°C to 70°C, the FS053 is built for energy-efficient performance in rugged, space-constrained environments like edge gateways, industrial panels, and embedded kiosks.

feature list

NXP i.MX6 Cortex-A9 DualLite or Quad 1.0GHz processor options
Supports both Yocto (default) and Android OS
Integrated eMMC storage options: 8GB, 16GB, and 32GB
Mini PCIe expansion slot supporting PCIe and USB signals
Dual Ethernet ports: ATHEROS AR8033 and LAN7500 (both 10/100/1000Mbps)
Dual independent displays via HDMI (up to 1920x1080) and LVDS (up to 1366x768)
8-bit DIO for digital input/output applications
1 x RS-232/422/485 and 1 x RS-485 (2-wire)
1 x SATA 2.0 interface available with i.MX6 Quad CPU
MTBF up to 486,335 hours at 25°C

MODEL NUMBER	PROCESSOR	MEMORY	TEMPERATURE
770-FS0532-300G	NXP i.MX6 DualLite 1.0GHz	1GB DDR3	0ºC to 60ºC
770-FS0532-200G	NXP i.MX6 Quad 1.0GHz 2	2GB DDR3	0ºC to 60ºC
770-FS0532-100G	NXP i.MX6 DualLite 1.0GHz	1GB DDR3	-20ºC to 70ºC
770-FS0532-000G	NXP i.MX6 Quad 1.0GHz 2	2GB DDR3	-20ºC to 70ºC

Downloads

Click on the link below for an instant download.

FS053 Datasheet
