EC70A-TGU

Processor: 11th Gen Intel® Core™ i7/i5/i3
Memory: Up to 8GB On-board Memory
Form Factor: Compact Industrial Computer
Supports: HDMI, VGA
Size: 181.6 x 57 x 118.4mm
Operating Temperature -20°C to +60°C

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Phone
This field is for validation purposes and should be left unchanged.

APPLICATION

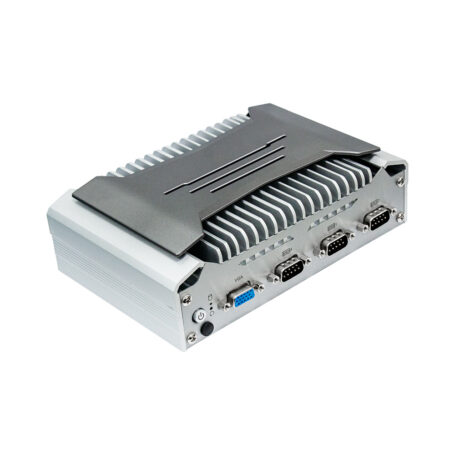

The EC70A-TGU from DFI is a compact, fanless embedded system powered by Intel® 11th Gen Core™ processors (Tiger Lake UP3), offering high performance at just 15W TDP. Designed for industrial edge computing, it comes with onboard memory, an additional DDR4 SO-DIMM slot, and support for triple independent displays via dual HDMI (4K@30Hz) and VGA (2K@60Hz).

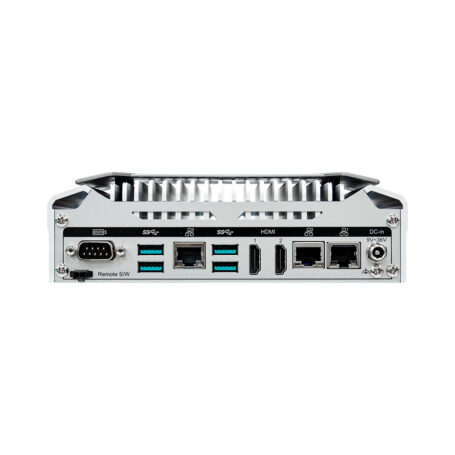

The system supports flexible I/O configurations across multiple SKUs, offering up to 4 GbE LAN ports and 6 USB 3.1 ports, along with multiple RS-232/422/485 COM ports. Expansion capabilities include M.2 slots for NVMe SSD, 5G-NR (via B Key), and Wi-Fi/Bluetooth (via E Key), making it well-suited for AI and IoT applications.

Certified for CE, FCC, UL, and more, and tested against industrial shock and vibration standards, the EC70A-TGU is ideal for smart factory, transportation, and edge AI deployments requiring durability, connectivity, and performance in a space-saving design.

feature list

Powered by Intel 11th Gen Core i7/i5/i3 and Celeron Tiger Lake UP3
Supports 8GB on-board memory and one SO-DIMM DDR4 slot for expanded RAM

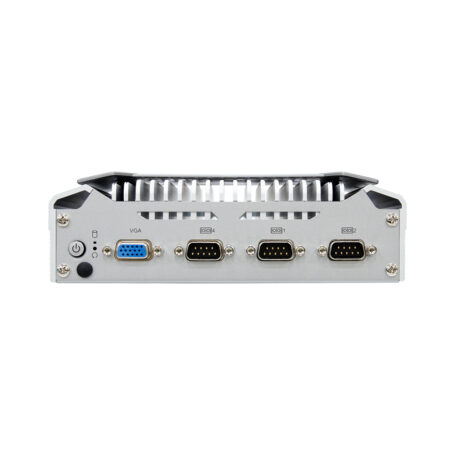

Triple display support

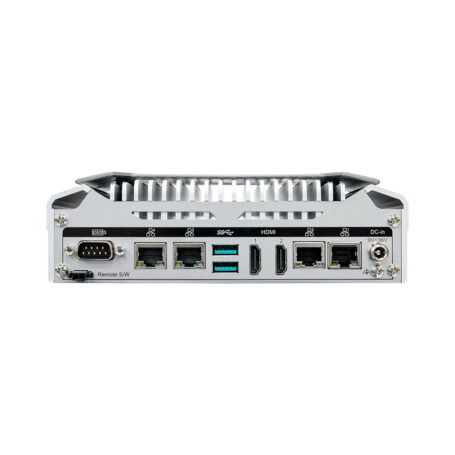

Multiple Ethernet configurations with up to 4 GbE LAN ports

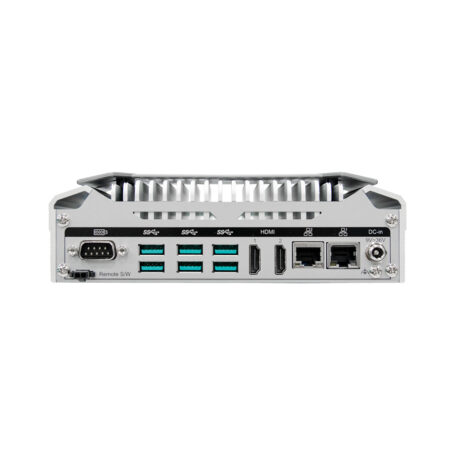

Wide I/O support including up to 6 USB 3.1 ports and 3 COM ports
5G capability via M.2 B key 3042/3052 module slot
Robust design with aluminium + metal construction and versatile wall/VESA/DIN rail mounting
Certified to global standards including CE, FCC Class A, UKCA, UL, CCC, and RoHS

Search:

MODEL NUMBER	CPU	MEMORY	LAN PORTS
EC70A-TGU4062-C5E-8	Intel® Celeron® 6305E	8GB	2
EC70A-TGU4062-I3E-8	Intel® Core™ i3-1115G4E	8GB	2
EC70A-TGU4062-I5E-8	Intel® Core™ i5-1145G7E	8GB	2
EC70A-TGU4062-I7E-8	Intel® Core™ i7-1185G7E	8GB	2
EC70A-TGU4043-C5E-8	Intel® Celeron® 6305E	8GB	3
EC70A-TGU4043-I3E-8	Intel® Core™ i3-1115G4E	8GB	3
EC70A-TGU4043-I5E-8	Intel® Core™ i5-1145G7E	8GB	3
EC70A-TGU4043-I7E-8	Intel® Core™ i7-1185G7E	8GB	3
EC70A-TGU4024-I7E-8	Intel® Core™ i7-1185G7E	8GB	4
EC70A-TGU4062-I7R-8	Intel® Core™ i7-1185GRE	8GB	2
EC70A-TGU4024-I5E8	Intel® Core™ i5-1145G7E	8GB	4

Showing 1 to 11 of 11 entries

Downloads

Click on the link below for an instant download.

EC70A-TGU Datasheet
