APPLICATION
The EC70A-SU is a compact, fanless embedded system powered by 6th and 7th Gen Intel® Core™ U-series processors, offering a balance of performance and energy efficiency for industrial and edge computing environments. It features onboard 4GB or 8GB DDR4 memory and supports dual independent displays via DP++ (up to 4096×2304) and VGA.
Designed for space-constrained deployments, the EC70A-SU includes a 2.5″ SATA drive bay, dual Mini PCIe slots for wireless or mSATA modules, and a wide 15–36V DC input. Rich I/O support includes dual Intel® GbE, four USB 3.0 ports, and four COM ports, one of which is configurable with 8-bit DIO. Built with a rugged aluminum chassis, it supports DIN rail, VESA, or wall mounting.
With support for Windows and embedded operating systems, and wide-temperature operation from -20°C to 60°C (with wide-temp storage), the EC70A-SU is ideal for factory automation, machine control, and IoT edge applications requiring durability, connectivity, and silent operation.
feature list

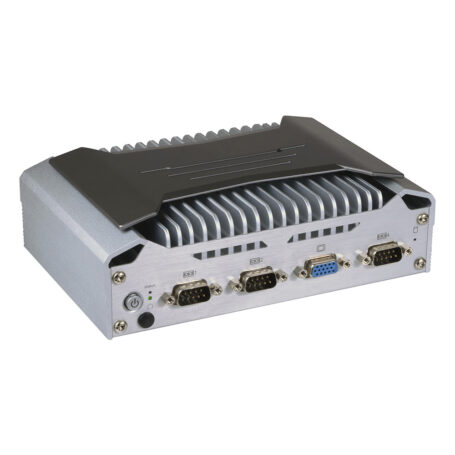

Compact fanless design with aluminum + metal construction
Supports dual display output via DP++ and VGA (up to 4096x2304 and 1920x1200 resolution)
Onboard 4GB/8GB DDR4 2133MHz memory
Wide voltage DC input range from 15V to 36V
Dual Intel GbE LAN ports with iAMT 11.0 support on i5/i7 CPUs

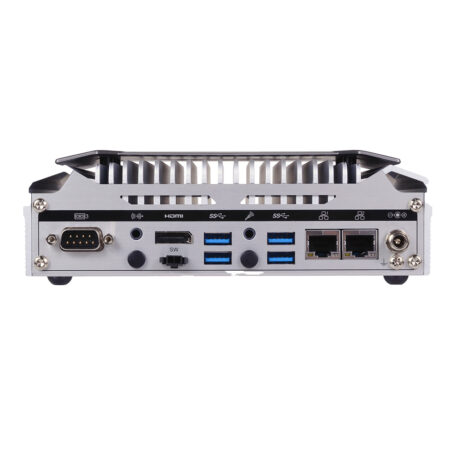

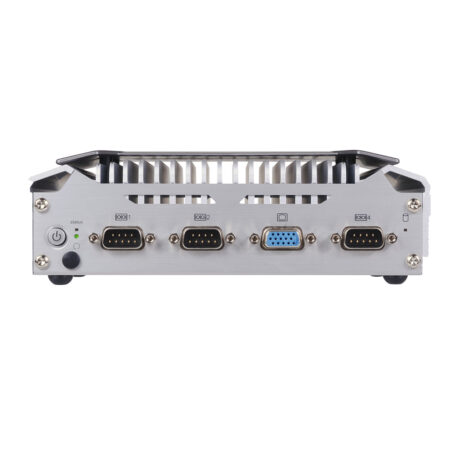

Multiple I/O options: 4 COM ports, 4 USB 3.0, mic-in, and line-out
2 Mini PCIe slots for mSATA and wireless expansion
Built-in watchdog timer programmable from 1 to 255 seconds
VESA/Wall/DIN rail mountable with robust vibration/shock resistance
