APPLICATION

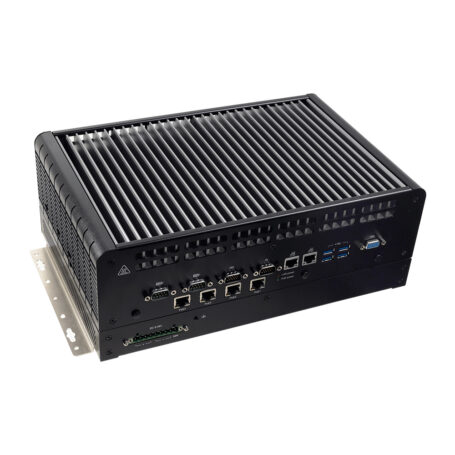

The EC300-CS is a rugged, AI-capable embedded system powered by 8th/9th Gen Intel® Core™ processors and the Intel® Q370 chipset, supporting up to 64GB DDR4 memory and discrete GPU acceleration via an MXM slot rated up to 150W. Designed for high-performance computing in edge AI, smart surveillance, and industrial control, it offers exceptional scalability with three mini PCIe and two M.2 slots, plus 5G support through an M.2 B key.

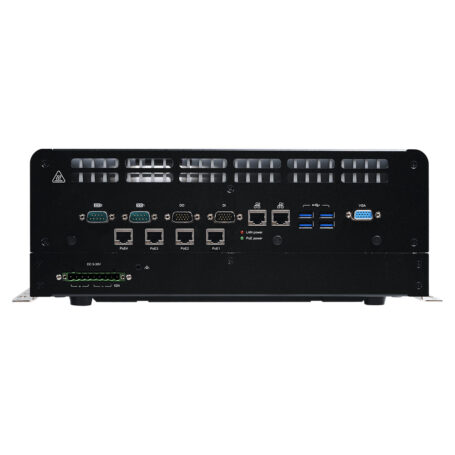

This system features four PoE (802.3af) ports, dual GbE, four USB 3.0, two USB 2.0, and multiple display outputs including DP++, HDMI, and VGA. It supports four swappable 2.5″ SSD bays, and a wide 12V DC input via terminal block. Housed in a durable metal and aluminium chassis, the EC300-CS operates in temperatures from -25°C to 70°C fanless, with brief tolerance up to 85°C under thermal throttling.
With TPM 2.0, MIL-STD-810G shock/vibration compliance, and support for Windows 10 IoT and Ubuntu 18.04, the EC300-CS is built for mission-critical deployments at the industrial edge, combining performance, connectivity, and rugged reliability.
feature list
AI acceleration via MXM Type A/B/C slot supporting up to 150W NVIDIA Quadro GPU
Four 802.3af PoE ports (RJ45) delivering up to 15W per port
Three mini PCIe slots and two M.2 slots (B key and M key)
Supports 5G-NR modules via M.2 B key (3042/3052) with SIM card access
Quad independent displays: DP++, HDMI, and VGA with NVIDIA Optimus technology

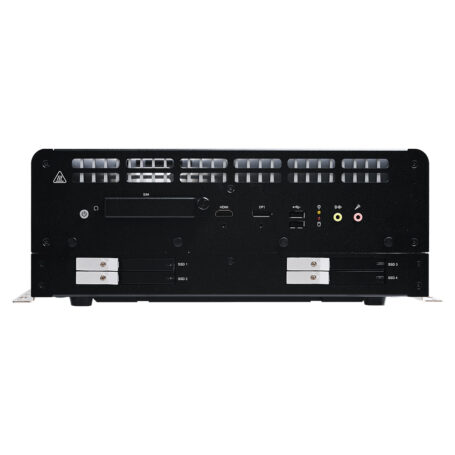

Hot-swappable bays for up to four 2.5" SSDs with secure locks
Integrated 8-bit isolated DI and DO ports with 2KV isolation via DB-9 connectors
Six Intel GbE ports including iAMT support on I219LM (i7/i5 CPUs only)
Watchdog timer programmable from 1 to 255 seconds
MIL-STD-810G shock and vibration tested with IP40-rated metal
See all optional extras in datasheet
