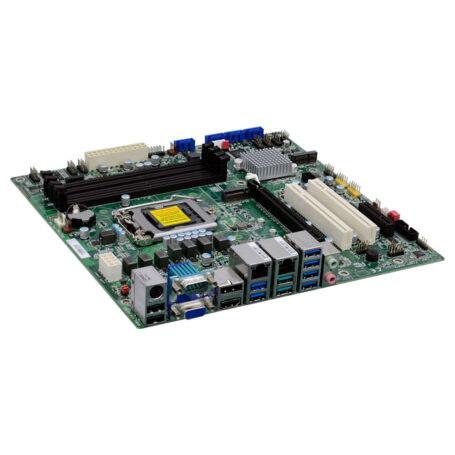

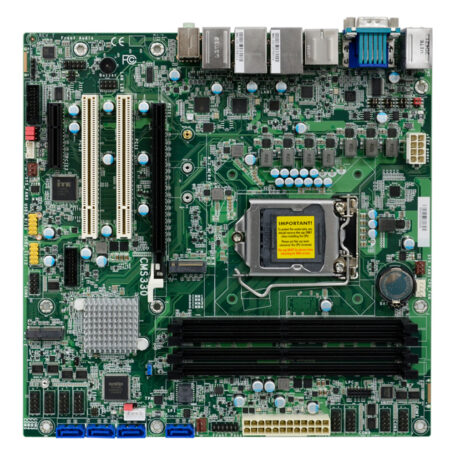

CMS330-Q470E/H420E

Processor: 10th Gen Intel® Core Processors
Memory: Up to 128GB
Form Factor: MicroATX
Supports: VGA, DP++, HDMI
Size: 244 x 244 x 37.6 mm
Operating Temperature -5°C to +65°C

Make an Enquiry

URL
This field is for validation purposes and should be left unchanged.
Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA

APPLICATION

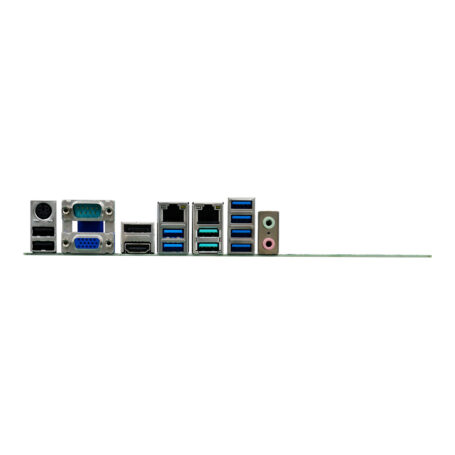

The CMS330-Q470E and CMS330-H420E are Micro-ATX industrial motherboards designed for 10th Gen Intel® Core™ LGA1200 processors with up to 125W TDP. Built to meet diverse industrial computing needs, both models offer triple display support via VGA, DP++, and HDMI, a wide temperature range, and up to 10 COM ports for legacy device integration.

The CMS330-Q470E, powered by the Intel® Q470E chipset, supports up to 128GB DDR4 memory across four UDIMM slots, RAID 0/1/5/10 with four SATA ports, and Intel® AMT for remote manageability. It offers six USB 3.2 ports, extensive PCIe and legacy PCI expansion, and M.2 M and E key slots for NVMe and Wi-Fi modules. In contrast, the CMS330-H420E uses the Intel® H420E chipset and supports up to 64GB DDR4 via two DIMM slots, with a streamlined USB and expansion configuration tailored for budget-conscious industrial applications.

Both models are equipped with dual Intel® GbE LAN, Realtek ALC888 audio, and TPM 2.0 support (optional), making them suitable for automation, kiosks, and control systems that require reliable legacy and high-speed I/O performance.

feature list

Support for 14th, 13th, and 12th Gen Intel® Core™ processors up to 125W TDP
Quad independent display output
Dual 10GbE and dual 2.5GbE Intel® LAN
PCIe Gen5 x16 and multiple Gen4 x4 slots
Dual M.2 M-key NVMe slots
Support for ECC and non-ECC DDR4 up to 128GB
TPM 2.0 for hardware-level security
Multiple USB 3.2 Gen2/Gen1 ports and SATA with RAID 0/1/5/10 support
High MTBF for industrial reliability

MODEL NUMBER	CHIPSET	MEMORY	TPM
770-CMS3302-000G	Intel® H420E Chipset	2 DDR4 UDIMM	N/A
770-CMS3302-100G	Intel® Q470E Chipset	4 DDR4 UDIMM	N/A
770-CMS3302-200G	Intel® H420E Chipset	2 DDR4 UDIMM	TPM 2.0
770-CMS3302-300G	Intel® Q470E Chipset	4 DDR4 UDIMM	TPM 2.0

Downloads

Click on the link below for an instant download.

CMS330-Q470E/H420E Datasheet
