Industrial Computing > BW051

BW051

Processor: Intel® Pentium®/Celeron® N3000
Memory: Up to 8GB
Form Factor: 2.5″ Single Board Computer
Supports: VGA, HDMI & LVDS
Size: 100 x 72 x 21.75 mm
Operating Temperature 0°C to +60°C

Make an Enquiry

Facebook
This field is for validation purposes and should be left unchanged.
Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA

APPLICATION

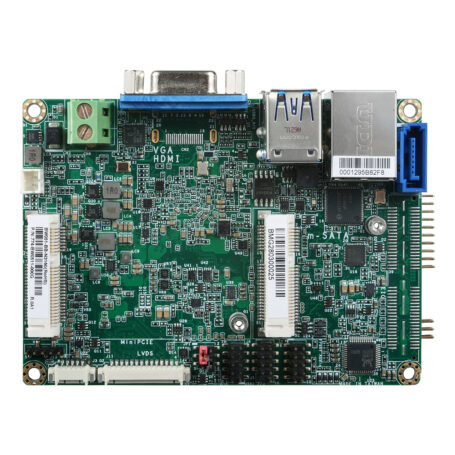

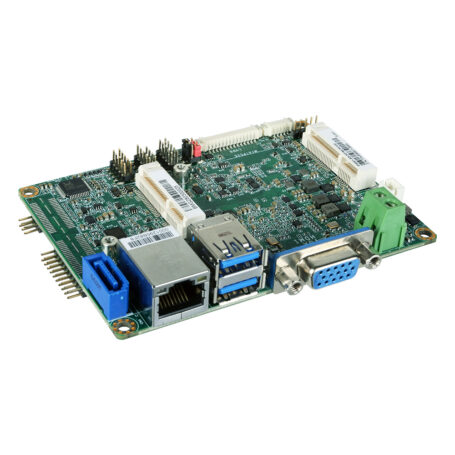

The BW051 is a compact 2.5″ Pico-ITX single board computer built on the Intel® Pentium®/Celeron® N3000 and Atom™ x5-E8000 processors, offering low-power, cost-effective performance for industrial and embedded systems. With a single DDR3L SODIMM slot supporting up to 8GB memory, it efficiently handles light-to-moderate workloads in fanless environments.

The board supports dual independent displays via VGA or HDMI (up to 1920×1080) and LVDS, making it ideal for compact HMI and panel applications. It offers flexible expansion with full-size Mini PCIe, half-size mSATA, and one SATA 3.0 port. I/O includes one Intel® GbE LAN, two COM ports, two USB 3.0, two USB 2.0, audio line-out/mic-in, and 8-bit digital I/O.

Powered by a single 12V DC input, the BW051 operates in temperatures from 0°C to 60°C and is compatible with Windows and Linux, including legacy OS support. This makes it a reliable choice for automation, kiosk, and compact embedded systems requiring low power and solid connectivity.

feature list

Supports Intel® Atom™ x5-E8000 processor (Quad Core, 5W TDP)
Single-channel DDR3L 1600MHz memory via one 204-pin SODIMM
Dual independent displays with support for VGA/HDMI and LVDS
Storage options include 1 x Half-size mSATA and 1 x SATA 3.0 port
1 x Full-size Mini PCIe slot for expansion (PCIe/USB)
Integrated Intel® I211AT PCIe Gigabit Ethernet controller
Rich I/O with 2 x USB 3.0 and 2 x USB 2.0 ports
Audio support with Realtek ALC888S-VD2-GR codec (Line-out and Mic-in)
8-bit digital I/O (DIO)
Watchdog timer programmable from 1 to 255 seconds

MODEL NUMBER	PROCESSOR	VGA/ HDMI
770-BW0512-100G	Intel® Atom™ x5-E8000	VGA
770-BW0512-000G	Intel® Celeron® N3160	VGA
770-BW0512-200G	Intel® Celeron® N3060	VGA
770-BW0512-300G	Intel® Celeron® N3160	HDMI

Downloads

Click on the link below for an instant download.

BW051 Datasheet
