APPLICATION

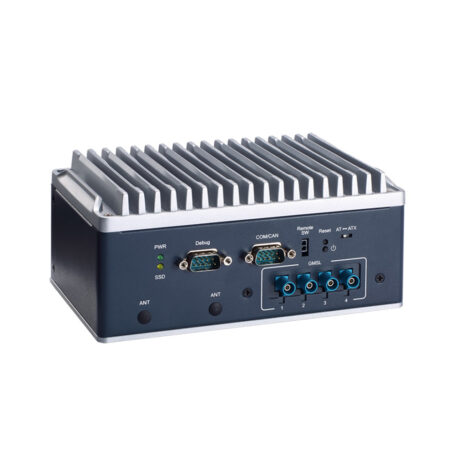

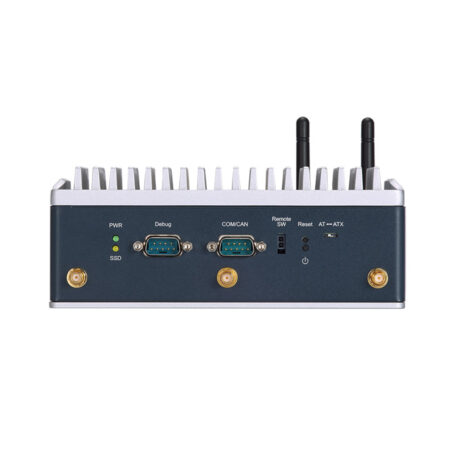

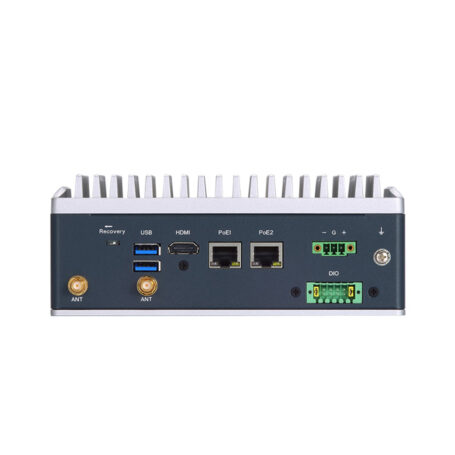

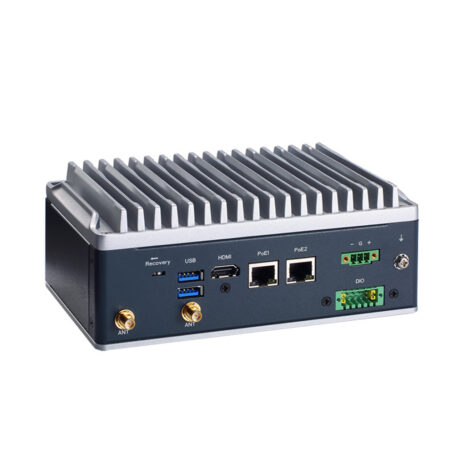

The AIE510-ONX from Axiomtek is a high-performance fanless edge AI platform built around the NVIDIA® Jetson Orin™ NX, delivering up to 100 TOPS for advanced robotics, autonomous machines, and industrial AI deployments.
With its powerful 8-core NVIDIA Arm® Cortex A78AE CPU, 1024-core Ampere GPU, and high-speed LPDDR5 memory, it is engineered for AI-driven vision, sensor fusion, and real-time control in mission-critical applications.
The system supports multiple high-speed connectivity options, including GbE PoE, 2.5 GbE PoE, dual USB 3.2 Gen2, wireless expansion for 5G and Wi-Fi 6E, and optional 4-channel GMSL camera input.
Designed for rugged environments, it operates reliably across wide temperature ranges and features ignition control for in-vehicle use. Fully certified to CE, FCC Class A, UKCA, and E-Mark standards, the AIE510-ONX is an ideal choice for autonomous mobile robots, intelligent transportation, industrial inspection, and defence-grade monitoring systems.
feature list
NVIDIA® Jetson Orin™ NX AI accelerator delivering up to 100 TOPS
Dual PoE ports including 2.5 GbE for high-bandwidth device connectivity
Optional 4-channel GMSL interface for automotive-grade camera integration
Supports 5G, Wi-Fi 6E, and LTE expansion via M.2 and PCIe Mini Card
Ignition power control for in-vehicle and mobile robot applications
Rugged IP40 fanless enclosure for industrial-grade durability
4K-capable HDMI 2.1 output for high-resolution display needs
Isolated DIO (4-in/4-out) for industrial control and automation
Wide operating temperature range from -25°C to +60°C
Remote device management and OTA updates powered by Allxon
| MODEL NUMBER | PROCESSOR | MEMORY | INTERFACE |
|---|---|---|---|
| E27H510100 | NVIDIA® Jetson Orin™ NX | 16GB | N/A |
| E27H510105 | NVIDIA® Jetson Orin™ NX | 16GB | 4-CH GMSL |
| See datasheet for accessories | |||
