APPLICATION

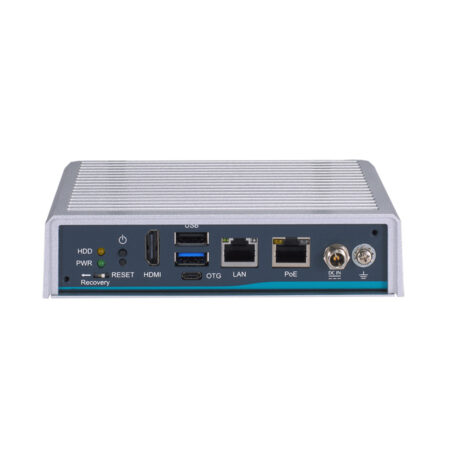

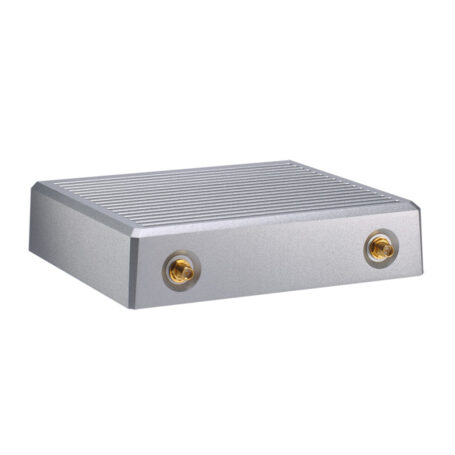

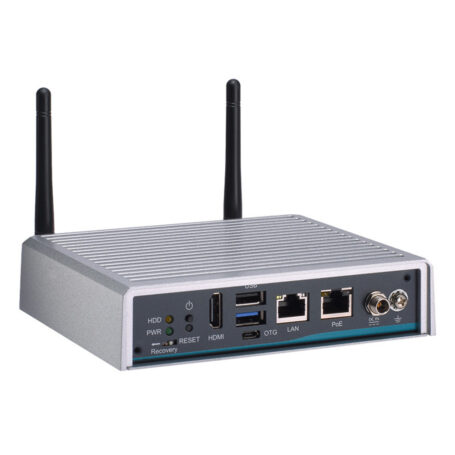

The AIE100-ONX from Axiomtek is a compact, fanless edge AI system powered by the NVIDIA® Jetson Orin™ NX platform, delivering up to 100 TOPS of AI performance for demanding smart city, industrial automation, and intelligent video analytics applications.
With either an 8-core or 6-core NVIDIA Arm® Cortex A78AE CPU, 1024-core NVIDIA Ampere GPU, and high-speed LPDDR5 memory, it offers exceptional processing capability for real-time inference at the edge.
Its rugged IP40-rated enclosure, optional IP42 upgrade, and wide operating temperature range ensure reliability in harsh or semi-outdoor environments. Equipped with GbE LAN and GbE PoE for camera connectivity, HDMI 2.1 for 4K output, and comprehensive remote device management through Allxon, it is built for continuous, secure deployment.
Certified to CE, FCC Class A, and UKCA standards, the AIE100-ONX is ideally suited for sectors including smart transportation, public safety, industrial inspection, and environmental monitoring.
feature list
NVIDIA® Jetson Orin™ NX AI accelerator with up to 100 TOPS performance
Supports remote monitoring and OTA deployment with Allxon DMS
Fanless low-power design for silent, reliable operation
Optional IP42 cover kit for semi-outdoor environments
PoE-enabled GbE port providing up to 15W for camera integration
Rugged aluminium and steel chassis for industrial durability
Wide temperature operation from -25°C to +60°C
4K-ready HDMI 2.1 video output for high-resolution displays
Flexible expansion with PCIe Mini Card and SIM slot
NVMe SSD storage interface for high-speed data access and system boot
| MODEL NUMBER | PROCESSOR | MEMORY |
|---|---|---|
| E27H100105 | NVIDIA® Jetson Orin™ NX | 16GB |
| E27H100108 | NVIDIA® Jetson Orin™ NX | 8GB |
| See datasheet for accessories | ||
Downloads
Click on the link below for an instant download.
