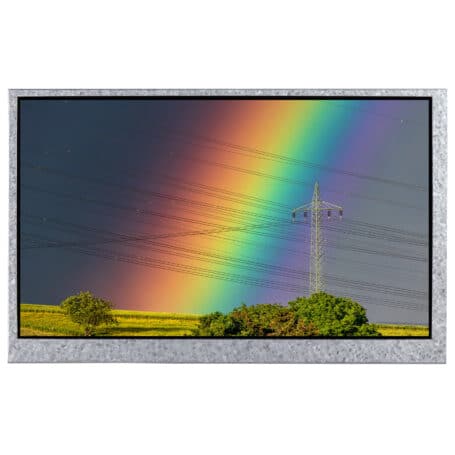

9” HDMI TFT LCD Display
Screen size: 9″
Aspect Ratio: 16:9
Active area: 196.61(W) x 114.15(H) mm
Resolution: 1024 x 600
Brightness: 1050cd/m2 – 1200cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C
Make an Enquiry
The 9″ HDMI TFT LCD Display provide a simple method to incorporate a display into equipment. The range all includes an integrated HDMI bridge, LED backlight driver and pre-installed EDID.
RELEC’s 9″ HDMI TFT LCD Display range fills the gap between 7” and 10.1” industrial grade widescreen options. The range incorporate a low power backlight design, whilst maintaining brightness level of up to 1200 cd/m2, contrast ratios of up to 800 and industrial grade operating temperatures of -20°C to +70°C.
Further modifications are available on these 9″ HDMI TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – customise your display
Brightness options from 1050 to 1200cd/m2
IPS Full Viewing angles
Resolution of 1024 x 600
Low Power Consumption
Operating temperature range -20°C to +70°C
Storage temperature range -30°C to +80°C
Module Supply Voltage: 12 Vdc
Contrast Ratio: 800
LED Life time: 40,000 hours
|OPERATING TEMP (°C)||TOUCH|
|HA-090XIEB0GA1-V||HDMI||1200||-20 to +70||None|
|HA-090XIEBCAA1-V||HDMI||1050||-20 to +70||PCAP|
|HA-090XIEBCBA1-V||HDMI||1050||-20 to +70||PCAP|
