Display > 8” HD IPS TFT LCD Display

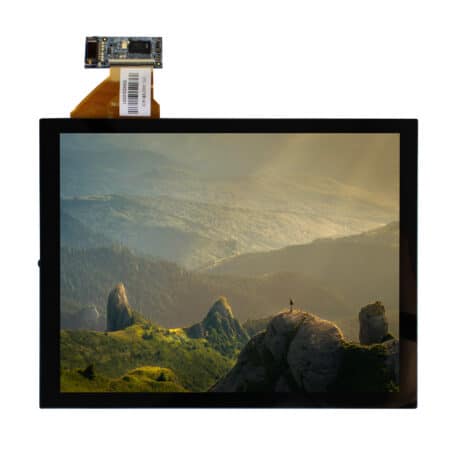

8” HD IPS TFT LCD Display

Screen size: 8″
Aspect Ratio: 16:9
Active area: 177.02(W) x 99.58(H) mm
Resolution: 1280 x 720
Interface: 8-Bit LVDS
Brightness: 600cd/m2 – 1200cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

Make an enquiry

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now


RELEC’s 8″ HD IPS TFT LCD Display range all incorporate a low power backlight design, whilst maintaining brightness level of up to 1200 cd/m2 and industrial grade operating temperatures of -20°C to +70°C. These units all use IPS technology for complete viewing angles.

The 8” TFT LCD Display range includes HD resolution and a wide variety of brightness options, which makes it suitable for any indoor or outdoor application such as medical, industrial, marine and defence applications.

Further modifications are available on these 8″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.

For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.

Options – customise your display

13-080ZIEB0HC0-S LVDS600-20 to +70None
13-080ZIEB0HC1-S LVDS1200-20 to +70None
