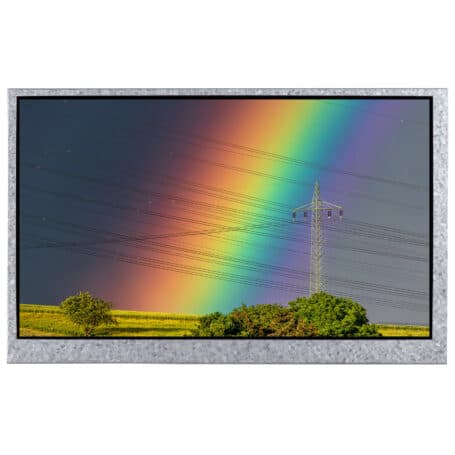

7” WSVGA IPS TFT LCD Display
Screen size: 7″
Aspect Ratio: 16:9
Active area: 154.21(W) x 85.92(H) mm
Resolution: 1024 x 600
Interface: TTL 24-bit RGB & 8-bit LVDS
Brightness: 400cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C
Make an Enquiry
The 7″ WSVGA IPS TFT LCD Display range is one of the most popular sizes available, providing an optimum size for most applications, with an enhanced resolution. RELEC’s range of 7” TFT LCD displays includes IPS technology for complete viewing angles, with brightness levels up to 1500 cd/m2 and contrast ratio of up to 1000.
The 7” IPS TFT LCD Display range includes a wide variety of brightness options, which makes it suitable for any indoor or outdoor application such as medical, industrial, marine and defence applications. The high brightness options make it suitable for use outdoors under direct sunlight.
Further modifications are available on these 7″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – Customise Your Display
Brightness options from 400 to 1500cd/m2
IPS Full Viewing Angles
Resolution of 1024 x 600
Low Power Consumption
TTL 24-bit RGB & 8-bit LVDS Interface
Operating temperature range -20°C to +70°C
Storage temperature range -30°C to +85°C
Module Supply Voltage: 3.3 Vdc
Contrast Ratio: 1000
LED Life time: 70,000 hours
|OPERATING TEMP (°C)||TOUCH|
|QP-070WSVGAMLLC1D#00||8-bit LVDS||400||-20 to +70||PCAP|
|QX-070WSVGAMLD00D||8-bit LVDS||400||-20 to +70||None|
|13-070XIEB4GH1-S||8-bit LVDS||560||-20 to +70||Resistive|
|13-070XIEB0GH1-S||8-bit LVDS||600||-20 to +70||None|
|13-070XIEBCAH1-S||8-bit LVDS||600||-20 to +70||PCAP|
|13-070XIEBCBH1-S||8-bit LVDS||600||-20 to +70||PCAP|
|13-070XIEBCEH1-S||8-bit LVDS||600||-20 to +70||PCAP|
|QP-070WSVGAMLLC03#00||8-bit LVDS||600||-20 to +70||PCAP|
|13-070XIEB4GH8-S||8-bit LVDS||800||-20 to +70||Resistive|
|13-070XIEB0GH8-S||8-bit LVDS||1000||-20 to +70||None|
|FLC-070FMLG100001#00||8-bit LVDS||1000||-20 to +70||None|
|FLC-070FMLG000001#00||8-bit LVDS||1000||-20 to +70||None|
|13-070XIEBCBH6-S||8-bit LVDS||1300||-20 to +70||PCAP|
|13-070XIEB0GH6-S||8-bit LVDS||1500||-20 to +70||None|
|13-070XITBCBH1-S||TTL 24-bit RGB||600||-20 to +70||PCAP|
|13-070XITB0GH1-S||TTL 24-bit RGB||700||-20 to +70||None|
|13-070XITB0GH6-S||TTL 24-bit RGB||1500||-20 to +70||None|
