Display > 7″ Industrial Monitor

7″ Industrial Monitor

Screen size: 7″ (WVGA)
Aspect Ratio: 4:3
Resolution: 800 X 480
Brightness: 500 cd/m²
Mechanical: IP65

Make an Enquiry

LinkedIn
This field is for validation purposes and should be left unchanged.
Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA

APPLICATION

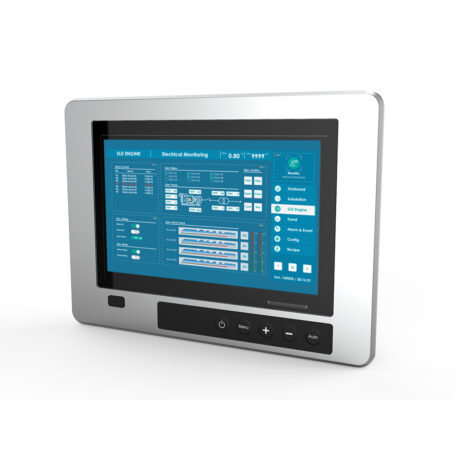

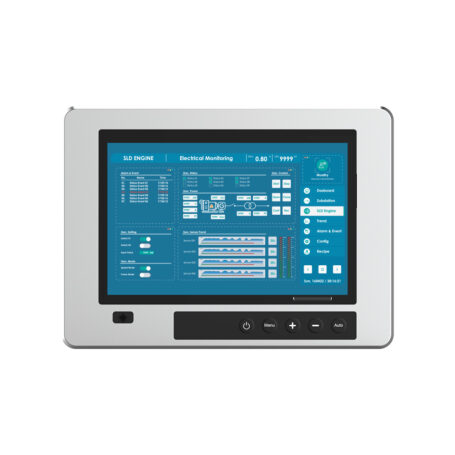

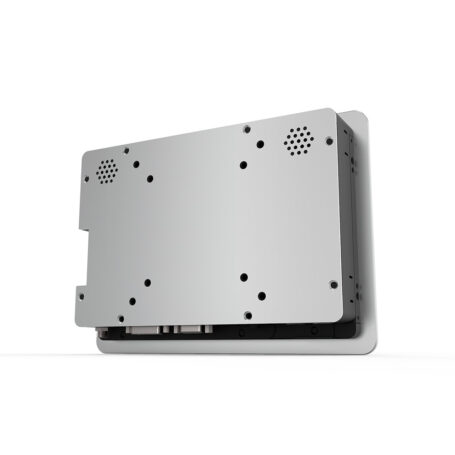

The IDP070-MS 7″ Industrial Monitor is a compact, durable display solution built for demanding industrial environments. Featuring either projected capacitive multi-touch or resistive touch options, it offers reliable user interaction through a 7” TFT LCD panel with 800 x 480 resolution, 500 cd/m² brightness, and a rapid 5ms response time. Its IP65-rated front panel and aluminium bezel ensure resistance to dust and water, making it ideal for factory floors, kiosks, and automation systems.

The 7″ Industrial monitor supports VGA, DVI-D, and HDMI inputs, with optional USB Type-C and DC power (12–24VDC or 20VDC), offering flexible installation in varied setups. An integrated RS232 port and optional Wi-Fi display expand connectivity, while features like remote control for power, brightness, and light sensor add convenience. With support for both VESA and panel mounting, and an extended operating temperature range up to 75°C (optionally -40°C), it’s designed for versatile industrial deployment.

Certified with CE, FCC Class A, and UKCA, the IDP070-MS is well-suited for embedded control panels, HMI interfaces, and rugged display applications where space efficiency and reliability are key.

feature list

Touch options include PCAP and Resistive Touch
IP65-rated front panel
Triple signal interface support: VGA, DVI-D, and HDMI
Optional modular WIFI Display
Multiple mounting options: VESA, Panel Mount, and Din-rail
Advanced power input options including 12–24 VDC or USB Type C 20 VDC
Fast 5ms response time and 130/140 degree viewing angles
Durable aluminium front bezel and lightweight 1.3 kg design
Certified with CE, FCC Class A, and UKCA

MODEL NUMBER	RESOLUTION	TOUCH TYPE / INTERFACE
IDP070PMSC20	800 x 480	PCAP USB Type C
IDP070PMSW24	800 x 480	PCAP 12 to 24VDC input
IDP070RMSC20	800 x 480	Resistive USB Type C
IDP070RMSW24	800 x 480	Resistive 12 to 24VDC input
DM-WIFI	N/A	External Wifi Display Module

Downloads

Click on the link below for an instant download.

IDP070-MS Datasheet
