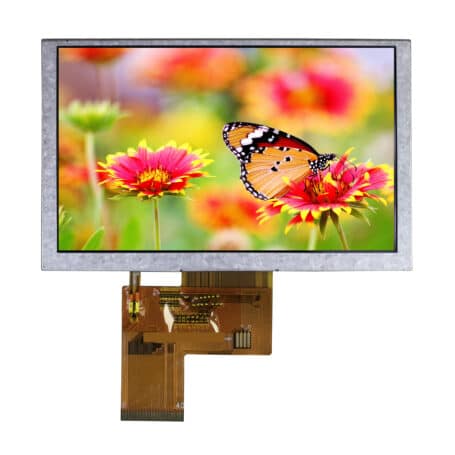

Display > 5” WVGA IPS TFT LCD Display


Screen size: 5″
Aspect Ratio: 16:9
Active area: 108(W) x 64.8(H) mm
Resolution: 800 x 480
Interface: TTL 24-bit RGB & 8-bit LVDS
Brightness: 450cd/m2 – 1000cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +85°C

Make an enquiry

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now


The 5″ WVGA IPS TFT LCD Display range is an optimum size for providing good level of active area, whilst providing a high resolution. The range include brightness up to 1000 cd/m2 and contrast ratio of up to 800. There are options in this range for operating temperature of -30°C to +85°C.

The 5” IPS TFT LCD Display range includes a wide variety of brightness options, which makes it suitable for any indoor or outdoor application such as medical, industrial, marine and defence applications. The high brightness and very wide operating temperature make it an ideal option for harsh environments and mission critical applications.

Further modifications are available on these 5″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.

For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.

Options – customise your display

13-050WISB4GA0-STTL 24-bit RGB 400-20 to +70Resistive
13-050WISBIBA0-STTL 24-bit RGB 450-20 to +70PCAP
13-050WISB0GA0-STTL 24-bit RGB 500-30 to +80None
13-050WISB4GA1-STTL 24-bit RGB 900-20 to +70Resistive
13-050WIEBIBB1-S8-bit LVDS900-20 to +70PCAP
13-050WISBIBA1-STTL 24-bit RGB 900-30 to +80PCAP
FLC-050DMTM000SA1TTL 24-bit RGB 1000-20 to +70None
13-050WIEB0GB1-S8-bit LVDS1000-30 to +80None
13-050WISB00B0-STTL 24-bit RGB 1000-30 to +80None
13-050WISB0GA1-STTL 24-bit RGB 1000-30 to +80None
FLC-050DMT8000SA1TTL 24-bit RGB 1000-30 to +85None
