Display > 4” Square IPS TFT LCD Display
4” square display

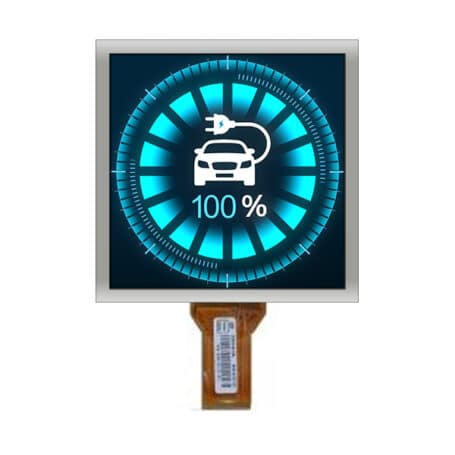

4” Square IPS TFT LCD Display

Screen size: 4″
Aspect Ratio: 1:1
Active area:  71.86(W) x 70.17(H) mm
Resolution: 480 x 480
Interface: 8-bit MIPI
Brightness: 1000cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

Make an enquiry

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now


This 4″ Square IPS TFT LCD Display incorporates a low-power backlight design, whilst maintaining a brightness level of up to 1000 cd/m2 and a contrast ratio of up to 800. Units are designed to operate within a  temperature range  of -20°C to +70°C.

The small size and high brightness options make this 4” Square IPS TFT LCD display perfect for outdoor installations, whilst providing the end equipment a unique design with its square 1:1 aspect ratio. Common applications include outdoor EV charging points, as well other industrial, medical, defence or marine applications.

Further modifications are available on these 4” Square IPS TFT LCD displays, which will enhance performance. Options include;

  • Optical Bonding,
  • Custom Cover Lens Design,
  • Screen Enhancements,
  • Mounting Frames,
  • Adaptor Boards,
  • Custom Cables
  • Enhancement Films.

Custom cover lens designs are available in various  options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.

Options – customise your display

FLC-0402MMT000001#00MIPI1000-20 to +70None
