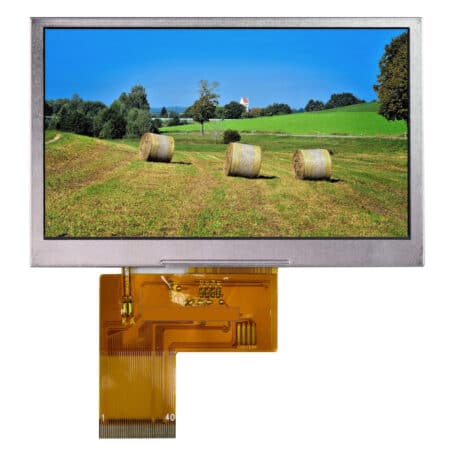

4.3” WQVGA IPS TFT LCD Display
Screen size: 4.3″
Aspect Ratio: 16:9
Active area: 95.04(W) x 53.85(H) mm
Resolution: 480 x 272
Interface: TTL 24-bit RGB
Brightness: 400cd/m2 – 1400cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°c to +70°C
Make an Enquiry
The 4.3″ WQVGA IPS TFT LCD Display range all incorporates a low power backlight design, whilst maintaining a brightness level of up to 1400 cd/m2 and contrast ratio of up to 800. The operating temperature within this range are within industrial levels of -20°C to +70°C
The small size and high brightness options makes these 4.3” WQVGA IPS TFT LCD Displays perfect for any outdoor installation, as well industrial, medical, defence or marine applications.
Further modifications are available on these 4.3″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – customise your display
Brightness options from 500 to 1400cd/m2
IPS Full Viewing Angles
Resolution of 480 x 272
Low Power Consumption
TTL 24-bit RGB Interface
Operating temperature range -20°C to +70°C
Storage temperature range -30°C to +80°C
Module Supply Voltage: 3.3 Vdc
Contrast Ratio: 800
LED Life time: 50,000 hours
|OPERATING TEMP (°C)||TOUCH|
|13-043YISB4GA0-S||TTL 24-bit RGB||480||-20 to +70||Resistive|
|13-043YISBIBA0-S||TTL 24-bit RGB||540||-20 to +70||PCAP|
|13-043YISB0GA0-S||TTL 24-bit RGB||600||-20 to +70||X|
|13-043YISB4GA2-S||TTL 24-bit RGB||720||-20 to +70||Resistive|
|13-043YISBIBA2-S||TTL 24-bit RGB||800||-20 to +70||PCAP|
|13-043YISB0GA2-S||TTL 24-bit RGB||900||-20 to +70||X|
|13-043YISB4GA1-S||TTL 24-bit RGB||1100||-20 to +70||Resistive|
|13-043YISBIBA1-S||TTL 24-bit RGB||1250||-20 to +70||PCAP|
|13-043YISB0GA1-S||TTL 24-bit RGB||1400||-20 to +70||X|
