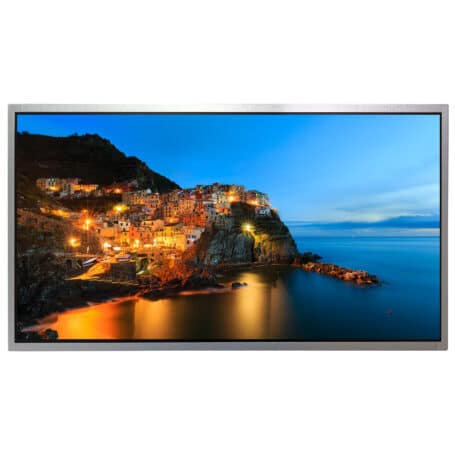

23.8” FHD IPS TFT LCD Display
Screen Size: 23.8″
Aspect Ratio: 16:9
Active Area: 527.04(W) x 294.46(H) mm
Resolution: 1920 x 1080
Interface: 8-bit LVDS
Touch Panel Options: PCAP & Resistive
Operating Temperature 0°C to +50°C
Make an Enquiry
The 23.8” FHD TFT LCD Display features a high brightness of 300 cd/m2, which makes it suitable for any indoor application such as medical, industrial, marine and defence applications.
Further modifications are available on these 23.8” TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – Customise Your Display
Brightness of 300 cd/m2
IPS Full Viewing Angles
Resolution of 1920 x 1080
Low Power Consumption
Operating temperature range 0°C to +70°C
Storage temperature range -10°C to +70°C
Module Supply Voltage: 3.3 Vdc
Contrast Ratio: 600
LED Life time: 50,000 hours
|OPERATING TEMP (°C)||TOUCH|
|13-238HVEEUAA0-S||LVDS||300||0 to +50||PCAP|
