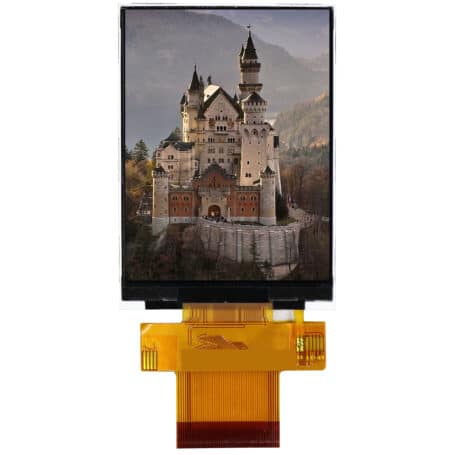

2.8” QVGA IPS TFT LCD Display
Screen size: 2.8″
Aspect Ratio: 3:4
Active area: 43.20(W) x 57.6(H) mm
Resolution: 240 x 320
Interface: MCU / SPI-3 Wire
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C
Make an Enquiry
This 2.8″ IPS TFT LCD Display incorporates a low power backlight design, whilst maintaining a very high brightness level of 1000 cd/m2 and contrast ratio of 800. The operating temperature on this 2.8″ TFT Display is still within industrial grade limits at -20°C to + 70°C.
The small size, low weight and high brightness on this 2.8″ IPS TFT LCD Display makes it the perfect solution for outdoor applications where daylight readability is essential, as well as marine, defence, medical or industrial applications
Further modifications are available on this 2.8″ IPS TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – customise your display
Brightness options from 1000cd/m2
IPS Full Viewing Angles
Resolution of 240 x 320
Native Portrait Orientation
Low Power Consumption
MCU 8080 Interface / 3-wire SPI Interface
Operating temperature range -20°C to +70°C
Storage temperature range -30°C to +80°C
Module Supply Voltage: 3.3 Vdc
Anti-glare surface treatment
Contrast Ratio: 800
LED Life time: 40,000 hours
|OPERATING TEMP (°C)||TOUCH|
|13-028QITB0GA0-S||MCU 8080 / 3-wire SPI||1000||-20 to +70||None|
|13-028QITB0GA0-T||MCU 8080 / 3-wire SPI||1000||-20 to +70||None|
|13-028QITB4HA0-S||MCU 8080 / 3-wire SPI||800||-20 to +70||Resistive|
|13-028QITB4HA0-T||MCU 8080 / 3-wire SPI||800||-20 to +70||Resistive|
