APPLICATION

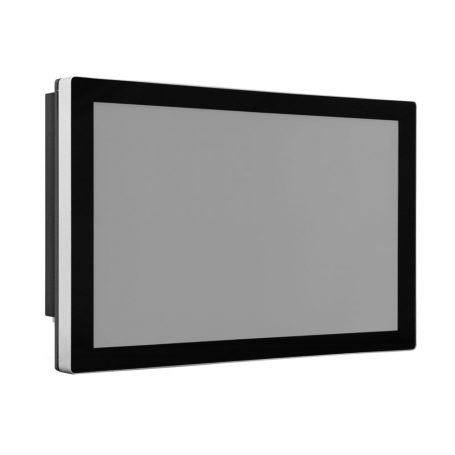

This 19″ Enclosed Monitor consists of a TFT with IPS Technology. The TFT has a 19” diagonally measured with a 1280 x 1024 resolution. It includes a PCAP touch panel that supports a USB interface and a rugged thick cover glass with the option of anti-vandal proof glass and an operating temperature range of -40 to +80°C .

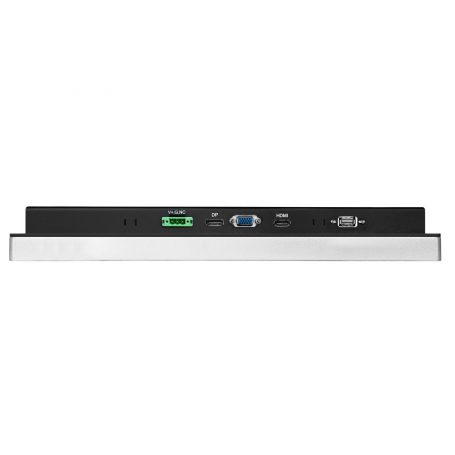

The monitor features a HDMI, VGA and Display Power input, with options to include OSD buttons, either front or rear, M12 Metal Connectors and an auto-dimming brightness. This is enclosed with front IP65 rating, that supports both VESA and panel mounting.
Options – customise your enclosed monitor
 |  |  |
| Anti-fingerprint | Anti-bacterial | Custom cover lens |
Our expert technical team are on hand to guide you through the process of specifying the perfect TFT display solution. Call us today.
feature list
350 to 1000 cd/m2 brightness
Resolution 1280x1024 pixels
PCAP touch panel
High Contrast Ratio
-40°C to +80°C Operating Temp
16.7M Colours
Front IP65 Rated
12 Vdc Input
| MODEL NUMBER | RESOLUTION | TOUCH TYPE / INTERFACE | BRIGHTNESS (CD/M2) |
|---|---|---|---|
| TDM-P190ST | 1280 x 1024 RGB Pixels | PCAP Touch | 350 - 1000 |
