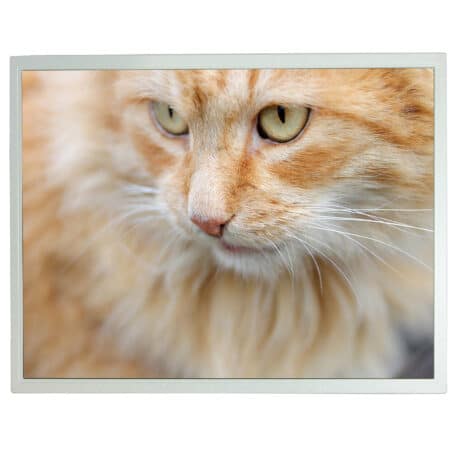

15” XGA IPS TFT LCD Display
Screen size: 15″
Aspect Ratio: 4:3
Active area: 304.1(W) x 228.1(H) mm
Resolution: 1024 x 768
Interface: 8-bit LVDS
Brightness: 300cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +80°C
Make an Enquiry
The 15” XGA IPS TFT LCD Display range features high brightness levels of up to 1500cd/m2, very high contrast ratios and full viewing angle with its IPS technology
The 15” IPS TFT LCD Display range includes a wide variety of brightness options, which makes it suitable for any indoor or outdoor application such as medical, industrial, marine and defence applications. The high brightness, long LED life time and very wide operating temperature make it an ideal option for harsh environments and mission critical applications.
Further modifications are available on these 15” TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – customise your display
Brightness options from 300 to 1500cd/m2
IPS Full Viewing Angles
Resolution of 1024 x 768
Low Power Consumption
8-bit LVDS Interface
Operating temperature range -30°C to +80°C
Storage temperature range -30°C to +80°C
Module Supply Voltage: 3.3 Vdc
Contrast Ratio: 2500
LED Life time: 70,000 hours
|OPERATING TEMP (°C)||TOUCH|
|FLD-150GML20PCSA1#01||8-bit LVDS||300||-20 to +70||PCAP|
|FLC-150GML2000SA1#00||8-bit LVDS||300||-20 to +70||None|
|FLC-150GML2000SA2||8-bit LVDS||500||-30 to +80||None|
|13-150GVEB5GB1-S||8-bit LVDS||800||-20 to +70||Resistive|
|13-150GVEBUAB1-S||8-bit LVDS||900||-20 to +70||PCAP|
|13-150GVEB0GB1-S||8-bit LVDS||1000||-20 to +70||None|
|FLD-150GML60PCSA1||8-bit LVDS||1000||-20 to +70||PCAP|
|FLC-150GML1000SA1||8-bit LVDS||1000||-20 to +70||None|
|FLC-150GML6000SA1#00||8-bit LVDS||1500||-30 to +80||None|
