15.6″ Modular Panel PC
Screen size: 15.6 Inch (HD)
Aspect Ratio: 16:9
Processor: Quad-core Intel® Pentium® N4200 or Intel® Celeron® N3350 or Intel® Celeron® 4305UE or Intel® Core™ processor (optional)
Resolution: 1366 x 768
Make an Enquiry
The ITC151 is powered by Intel® Smart Display Module (SDM) with a swappable design, which ensures upgradable I/O connection to meet the different application requirements and user-friendly quick maintenance without any burden.
The Modular Panel PC can be seamlessly integrated with the RFID reader, a barcode scanner, camera modules, and a thermal printer. It supports multiple types of mounting for various environments, for instance, a desktop stand for the counters, a floor stand at the ideal height for self-services, or a wall mount for constrained spaces.

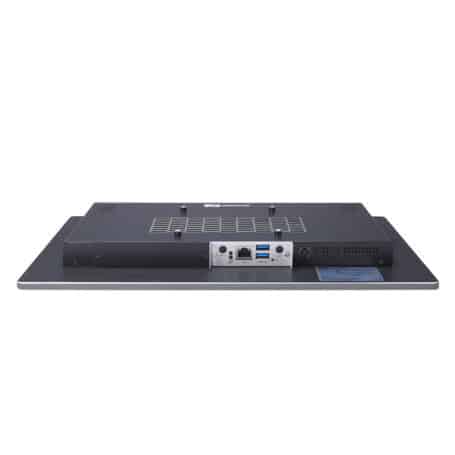

The Panel PC has a full HD TFT LCD display with a 10-point PCAP (Projected Capacitive Touch) touchscreen, with an operating temperature of 0°C to +40°C. The model has up to 8GB system memory and up to 64GB of storage and includes 1 x LAN, 4 x USB 3.0, 1 x audio, 1 x microphone and 2 x antennas I/Os. Additionally, it supports portrait and landscape modes to meet the demands of various applications.

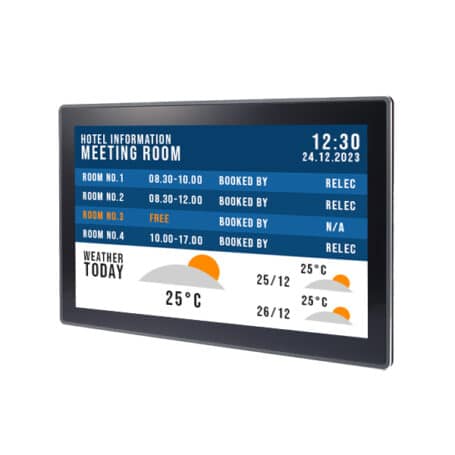

These highly flexible features enable the ITC151 to be deployed in various fields, such as infotainment signage for hotels, self-service kiosk for displays in retail, point-of-care terminals in hospitals, and even in light industrial environments.
Options – customise your display
15.6" FHD TFT LCD
16:9 aspect ratio; 250 nits brightness
Diamond-cut slim bezel under 33.5 mm thickness
Projected capacity touch supported (10-point touch)
Swappable Intel® SDM CPU card
Modular design for various applications
Supports an add-on RFID reader, a barcode scanner, and camera modules (optional)
Supports a thermal printer with counter-top stand or floor stand (optional)
Supports mounting kits (optional)
|MODEL NUMBER||RESOLUTION||TOUCH TYPE / INTERFACE||PROCESSOR|
|ITC151||1336 x 768||PCAP (10-point touch)||Quad-core Intel® Pentium® N4200
Intel® Celeron® N3350
Intel® Celeron® 4305UE
Intel® Core™ processor (optional)
