Display > 12.1” WXGA IPS TFT LCD Display

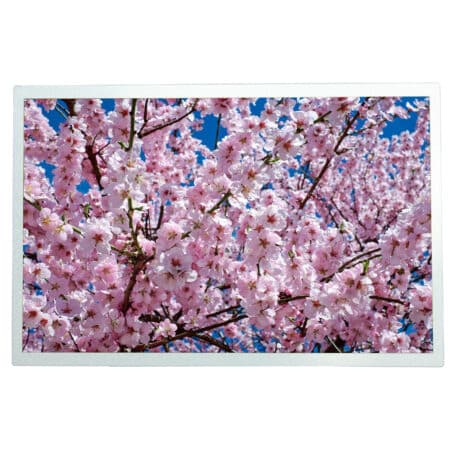

12.1” WXGA IPS TFT LCD Display

Screen size: 12.1″
Aspect Ratio: 16:10
Active area: 261.12(W) x 163.2(H) mm
Resolution: 1280 x 800
Interface: 8-bit LVDS
Brightness: 480cd/m2 – 2000cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +80°C

Make an enquiry

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now


The 12.1” WXGA IPS TFT LCD Display range features high brightness levels of up to 2000cd/m2, high contrast ratios and full viewing angle with its IPS technology

The 12.1” IPS TFT LCD Display range includes a wide variety of brightness options, which makes it suitable for any indoor or outdoor application such as medical, industrial, marine and defence applications. The high brightness, very long LED life time and very wide operating temperature make it an ideal option for harsh environments and mission critical applications.

Further modifications are available on these 12.1″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.

For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.

Options – customise your display

13-121ZILB4GA0-S8-bit LVDS480-20 to +70Resistive
13-121ZILBIAA0-S8-bit LVDS500-20 to +70PCAP
13-121ZILBUAA0-S8-bit LVDS500-20 to +70PCAP
13-121ZILC0GA0-S8-bit LVDS600-30 to +80None
FLD-121HML20PCSA28-bit LVDS600-30 to +80PCAP
FLC-121HML2000SA28-bit LVDS600-30 to +80None
FLD-121HML60PCFA1#008-bit LVDS1000-30 to +80PCAP
FLC-121HML6000SA1#008-bit LVDS1000-30 to +80None
13-121ZILBUAA3-S8-bit LVDS1300-20 to +70PCAP
13-121ZILB00A3-S8-bit LVDS1500-20 to +70None
13-121ZILB00A8-S8-bit LVDS2000-30 to +80None
