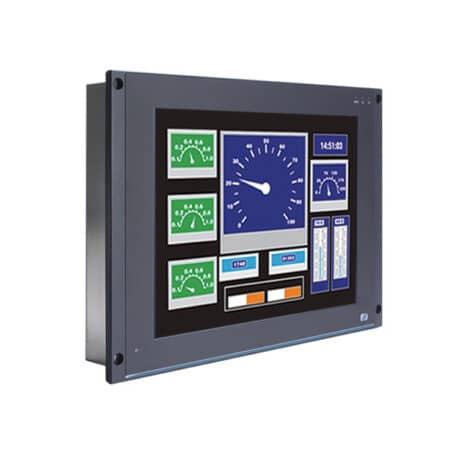

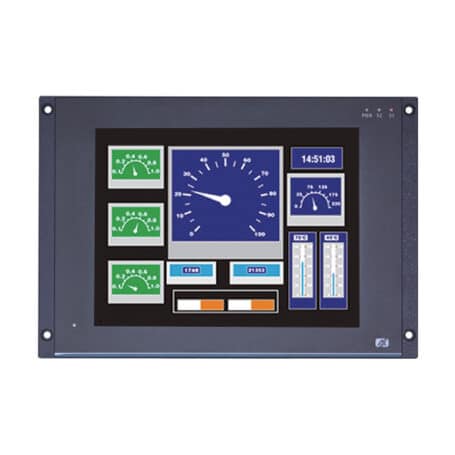

12.1″ Railway Approved Panel PC
Screen size: 12.1” (XVGA)
Aspect Ratio: 4:3
Processor : Intel® Atom® E3845
Resolution: 1024 x 768
Approvals: EN50155 & EN45545-2 Certified
Mechanical: Fully sealed to IP65
Make an Enquiry
This 12.1″ EN50155 Panel PC consists of a TFT LCD with an SVGA resolution and a 5-wire resistive touch panel. This model is powered by an Intel® Atom® E3845 processor with fanless operation. The wide input voltage range of 24-110 Vdc and its full certification to both EN50155 and EN45545-2 makes this 12.1″ Panel PC the perfect option for all rail applications.
This model features a high brightness level of 800cd/m2 for sunlight readability, and an auto-dimming function to provide the optimal brightness level for different ambient brightness.
This Panel PC is housed in a IP65 front facing aluminium front bezel, with a wide operating temperature range of -40°C to +70°C.
Get in touch with one of our experts today, to discuss how this 12.1″ EN50155 Panel PC can be best suited for your application and project. Contact an expert at firstname.lastname@example.org
5-wire resistive touch panel
Fanless with Intel® Atom® processor E3845
2 x LANs, 2 x USB and 2 x COM
Option for a front bezel keypad
24 Vdc to 110 Vdc Input
-40oC to + 70oC Operating Temperature
IP65 rated front bezel
Supports suspension mount, wall mount and VESA mount
EN50155 and EN45545-2 Certified
Windows® 10, Windows® 10 IOT , Windows® 8/8.1, WE8S, Windows® 7, WES7 supported OS
DDR3L, 4GB System Memory
36 W Low power consumption
|MODEL NUMBER||RESOLUTION||TOUCH TYPE / INTERFACE||Processor|
|GOT712S-837||1024 x 768 RGB Pixels||5-Wire Resistive||Intel® Celeron® E3845|
