Display > 11.6” FHD IPS TFT LCD Display

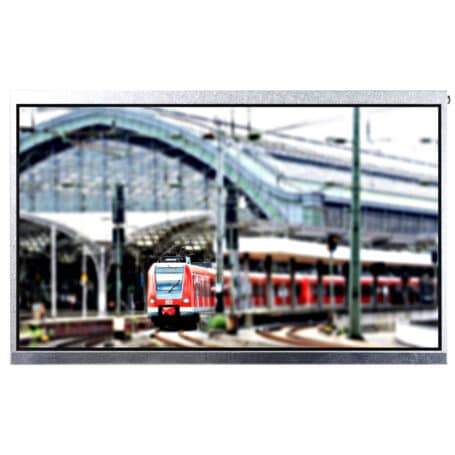

11.6” FHD IPS TFT LCD Display

Screen size: 11.6″
Aspect Ratio: 16:9
Active area: 256.32(W) x 144.18(H) mm
Resolution: 1920 x 1080
Interface: 8-bit LVDS & eDP
Brightness: 900cd/m2 – 1500cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

Make an enquiry

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now


The 11.6” FHD IPS TFT LCD Display range features high brightness levels of up to 1500cd/m2, high contrast ratios, very high resolution relative to its size and full viewing angle with its IPS technology

The 11.6” IPS TFT LCD Display range includes a wide variety of brightness options, which makes it suitable for any indoor or outdoor applications such as medical, industrial, marine and defence applications. The high brightness options make it suitable for use outdoors under direct sunlight. The high resolution on a relatively small size makes it an ideal solution for picture quality applications, such as medical imaging.

Further modifications are available on these 11.6″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.

For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.

Options – customise your display

13-116HIEBCAB1-S8-bit LVDS1000-20 to +70PCAP
13-116HIEB0GB1-S8-bit LVDS1200-20 to +70None
13-116HIEBCAB0-S8-bit LVDS1300-20 to +70PCAP
13-116HIEB0GB0-S8-bit LVDS1500-20 to +70None
13-116HIPBCAB1-SeDP900-20 to +70PCAP
13-116HIPB0GB1-SeDP1000-20 to +70None
