10.4 inch Railway Approved Monitor
Screen size: 10.4” (XGA)
Active Area: 210.4(W) x 157.8(H)mm
Resolution: 1024 x 768
Interface: VGA, DVI & HDMI
Mounting: IP65, VESA or Panel Mount
Make an Enquiry

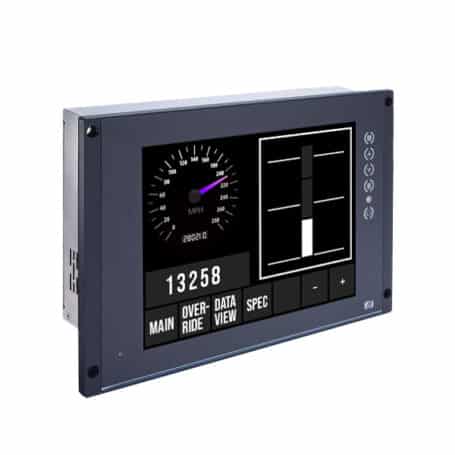

This enclosed monitor consists of a high brightness TFT with wide viewing angles. The TFT has a screen size of 10.4” diagonally measured with a 1024 by 768 resolution and includes a 5-wire resistive touch panel. This features various video inputs, including VGA, DVI & HDMI input and an auto-dimming brightness. This is enclosed in an aluminium casing with IP65 front rated, that supports both VESA and panel mounting and is certified to the requirements of EN50155 for railway applications.
High Contrast Ratio
Wide Viewing Angle
Resolution 1024 x 768 Pixels
500 cd/m2 High Brightness
VGA, DVI & HDMI Input
5-wire Resistive Touch Panel
Operating temp of -25 to +55
VESA Mount & panel Mount
24 Vdc to 110 Vdc input voltage
EN50155 and EN 45545 Certified
Front Bezel OSD Keys
Viewing direction: free direction
|MODEL NUMBER||RESOLUTION||TOUCH TYPE / INTERFACE||BRIGHTNESS
|P710||1024 x 768 RGB Pixels||5-Wire Resistive||500|
|P6105||1024 x 768 RGB Pixels||5-Wire Resistive||500|
