10.4 Inch Panel PC
Screen size: 10.4 Inch (SVGA)
Aspect Ratio: 4:3
Processor: Intel® Celeron® N3060
Resolution: 800 x 600 Pixels RGB
Approvals: 4th edition EN 60601-1, CE & FCC Approved
Make an Enquiry
This Panel PC consists of a TFT LCD with an SVGA resolution and a 5-wire resistive touch panel. This model is powered by an Intel® Celeron® N3060 processor with fanless operation and fully certified for medical applications. The TFT LCD has a 10.4 inch (4:3) diagonally measured active display area with an 800 horizontal by 600 vertical pixel resolution.
Resolution 800x600 pixels
5-wire resistive touch panel
Fanless with Intel® Celeron® processor N3060

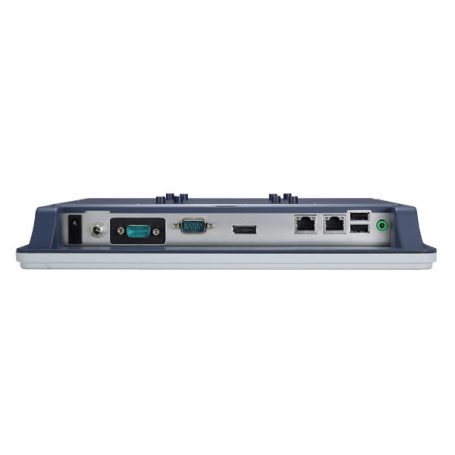

2 x LANs, 4 x USB and 2 x COM
Plastic Enclosure with IP65 rated front bezel
Easy access storage design
Supports panel mount, wall mount, VESA arm & desktop stand
4th EN 60601-1 (ESD contact 8kV, air 15kV), CE and FCC certified
Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES7 supported OS
1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB System Memory
32 W Low power consumption
|MODEL NUMBER||RESOLUTION||TOUCH TYPE / INTERFACE||PROCESSOR|
|MPC102-845||800 x 600 RGB Pixels||5-wire Resistive Touch||Intel® Celeron® N3060|
