Display > 10.4″ HDMI TFT LCD Display
10.4
10.4
10.4
10.4

10.4″ HDMI TFT LCD Display

Screen size: 10.4″
Aspect Ratio: 4:3
Active area: 211.20(W) x 158.4(H) mm
Resolution: 1024 x 768
Interface: HDMI
Brightness: 800cd/m2 – 2000cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +80°C

Make an enquiry
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now

APPLICATION

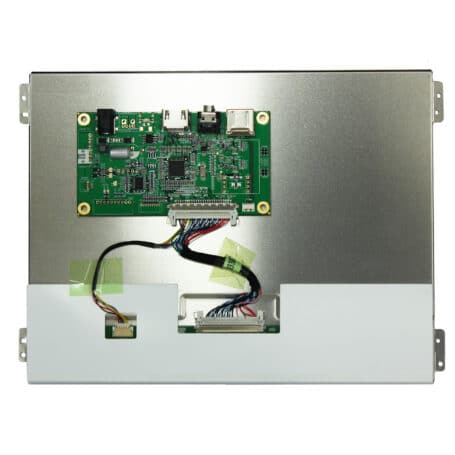

The 10.4″ HDMI TFT LCD Display provide a simple method to incorporate a display into equipment.  The range all includes an integrated HDMI bridge, LED backlight driver and pre-installed EDID.

The 10.4″ HDMI TFT LCD Display range features high brightness levels of up to 1000cd/m2, high contrast ratios, wide operating temperatures of up to -30°C to +80°C and full viewing angle with its IPS technology

The 10.4” HDMI TFT LCD Display range is a popular option for industrial, medical and defence applications, due to its long product lifetime.  This specific range has an improved resolution, wider operating temperatures and high brightness options makes it an ideal solution for any indoor or outdoor installation such as medical, industrial, marine and defence.

Further modifications are available on these 10.4″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.

For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.

Options – customise your display


MODEL NUMBERINTERFACEBRIGHTNESS
(CD/M2)
OPERATING TEMP (°C)TOUCH
HA-104GIECCAF1-VHDMI800-30 to +80PCAP
HA-104GIEC0GF1-VHDMI900-30 to +80None
HA-104GIECCAF2-VHDMI1800-30 to +80PCAP
HA-104GIEC0GF2-VHDMI2000-30 to +80None
