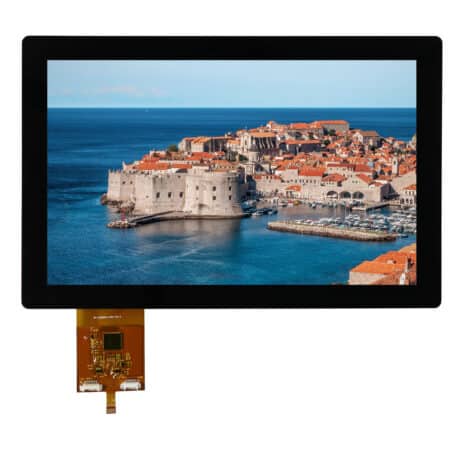

10.1″ HDMI TFT LCD Display
Screen Size: 10.1″
Aspect Ratio: 16:10
Active Area: 216.95(W) x 135.6(H) mm
Resolution: 1280 x 800
Brightness: 500cd/m2 – 1400cd/m2</strong
Touch Panel Options: PCAP & Resistive
Operating Temperature -30°C to +80°C
Make an Enquiry

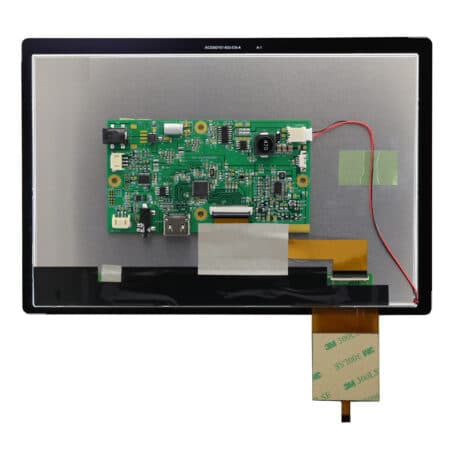

The 10.1″ HDMI TFT LCD Display provide a simple method to incorporate a display into equipment. The range all includes an integrated HDMI bridge, LED backlight driver and pre-installed EDID.
The 10.1″ HDMI TFT LCD Display range features high brightness levels of up to 1400cd/m2, high contrast ratios and full viewing angle with its IPS technology
The 10.1” HDMI TFT LCD Display range includes a wide variety of brightness options, which makes it suitable for any indoor or outdoor application such as medical, industrial, marine and defence applications. The high brightness options make it suitable for use outdoors under direct sunlight.
Further modifications are available on these 10.1″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – Customise Your Display
Brightness options from 500 to 1400cd/m2
IPS Full Viewing Angles
Resolution of 1280 x 800
Low Power Consumption
Operating temperature range -30°C to +80°C
Storage temperature range -30°C to +85°C
Module Supply Voltage: 12 Vdc
Contrast Ratio: 1000
LED Life time: 50,000 hours
|OPERATING TEMP (°C)||TOUCH|
|HA-101ZIEB4UD0-V||HDMI||560||-20 to +70||Resistive|
|HA-101ZIEBCAD0-V||HDMI||600||-30 to +80||PCAP|
|HA-101ZIEBCBD0-V||HDMI||600||-30 to +80||PCAP|
|HA-101ZIEBCHD0-V||HDMI||600||-30 to +80||PCAP|
|HA-101ZIEB0HD0-V||HDMI||700||-30 to +80||None|
|HA-101ZIEB4UD1-V||HDMI||1100||-20 to +70||Resistive|
|HA-101ZIEBCAD1-V||HDMI||1250||-30 to +80||PCAP|
|HA-101ZIEBCBD1-V||HDMI||1250||-30 to +80||PCAP|
|HA-101ZIEBCHD1-V||HDMI||1250||-30 to +80||PCAP|
|HA-101ZIEB0HD1-V||HDMI||1400||-30 to +80||None|
