All-in-One: Compact Power, Backup and Control. CBI250 by Adel.
The space-saving Din rail DC-UPS with integrated battery charging and power management.
CBI250 DC-UPS: All-in-One. Compact Power, Backup and Control.
The CBI250 delivers 12 Vdc and 24 Vdc output, Modbus control, and intelligent battery care for industrial systems.

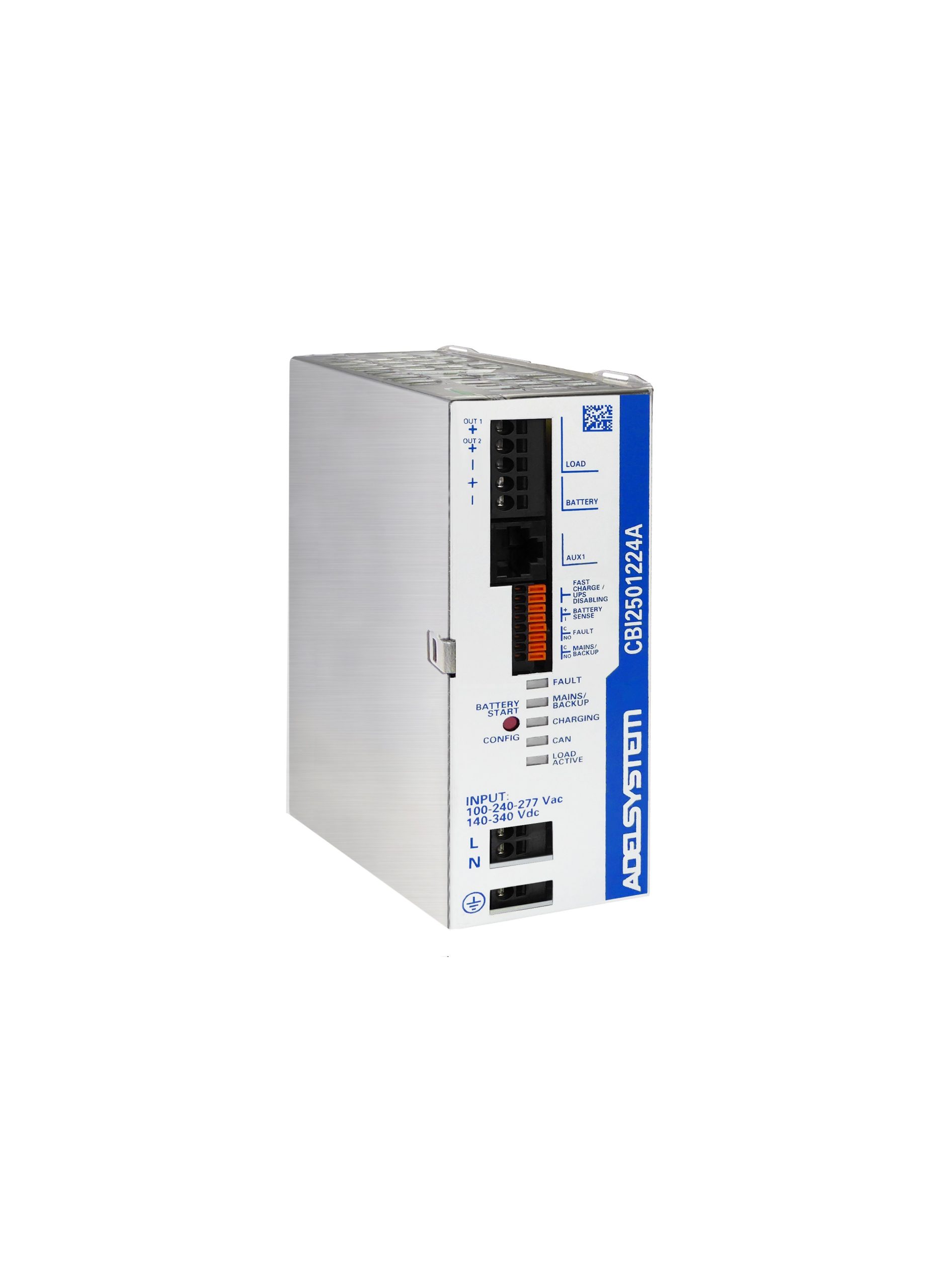

The ADEL System CBI250 is an all-in-one DC-UPS solution combining power supply, battery charger, and advanced power management in a compact DIN rail format. Designed for industrial applications requiring continuity and control, it delivers reliable 12 Vdc or 24 Vdc output with integrated battery backup and monitoring. With intelligent power sharing between load and battery, the CBI250 prioritises load supply while optimising battery charging in real time. Advanced Battery Care algorithms continuously monitor state-of-charge (SoC) and state-of-health (SoH), extending battery life and improving system reliability.
Key features
- All-in-one DC-UPS: power supply, battery charger, and controller
- Selectable output: 12 Vdc or 24 Vdc, 10 A
- Wide input range:85 – 305 Vac / 110–340 Vdc
- High efficiency: ≥93% typical
- Two outputs: static + dynamic (configurable via Modbus)
- Intelligent battery management with 5-stage IUoU charging
- Supports multiple battery types: Lead Acid, AGM, Gel, Li-ion, NiCd/NiMH
- Modbus RTU (RS485) for monitoring, configuration, and diagnostics
- ADELBus integration for system-wide control
- Compact Din Rail Mounting
Applications
Designed for systems requiring power continuity and control:
- Energy and security
- Industrial automation and control systems
- Telecom and remote infrastructure
- Alarm and safety systems (EN54-4 compliant)
- DC motor and LED load management
Compliance & safety
- EN62368-1 safety standards
- EN54-4 fire detection systems
- EMC: IEC 61000-6-2 / 61000-6-4
- CE compliant
Combining power supply, battery backup, and intelligent control in a single unit, the CBI250 simplifies system design while improving reliability and uptime.
CBI250 DC-UPS: All-in-One. Compact Power, Backup and Control.
Explore the CBI250 at www.relec.co.uk or contact Relec to discuss your power continuity requirements.
