Low-Profile AC-DC Supplies for Miniaturisation of Medical and Industrial Devices.
200 W ultra-low-profile AC-DC power supplies

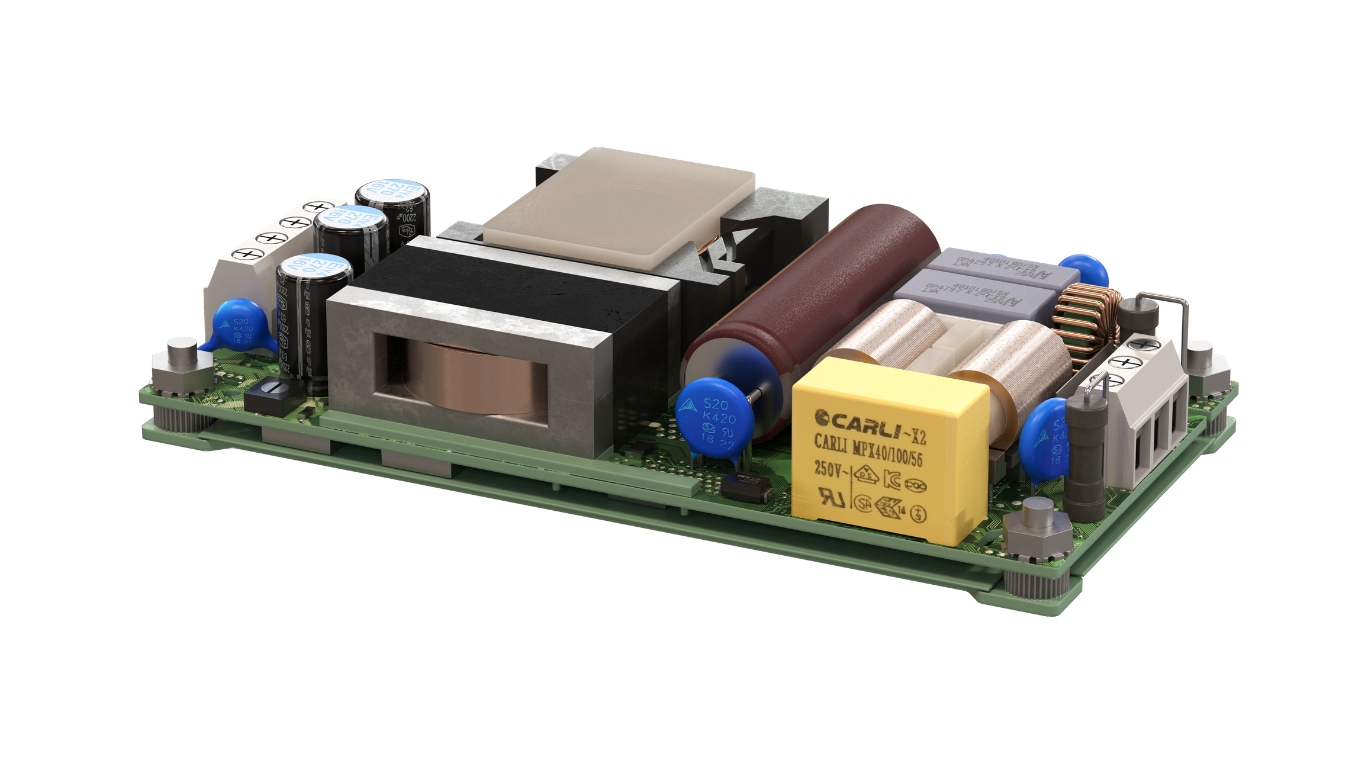

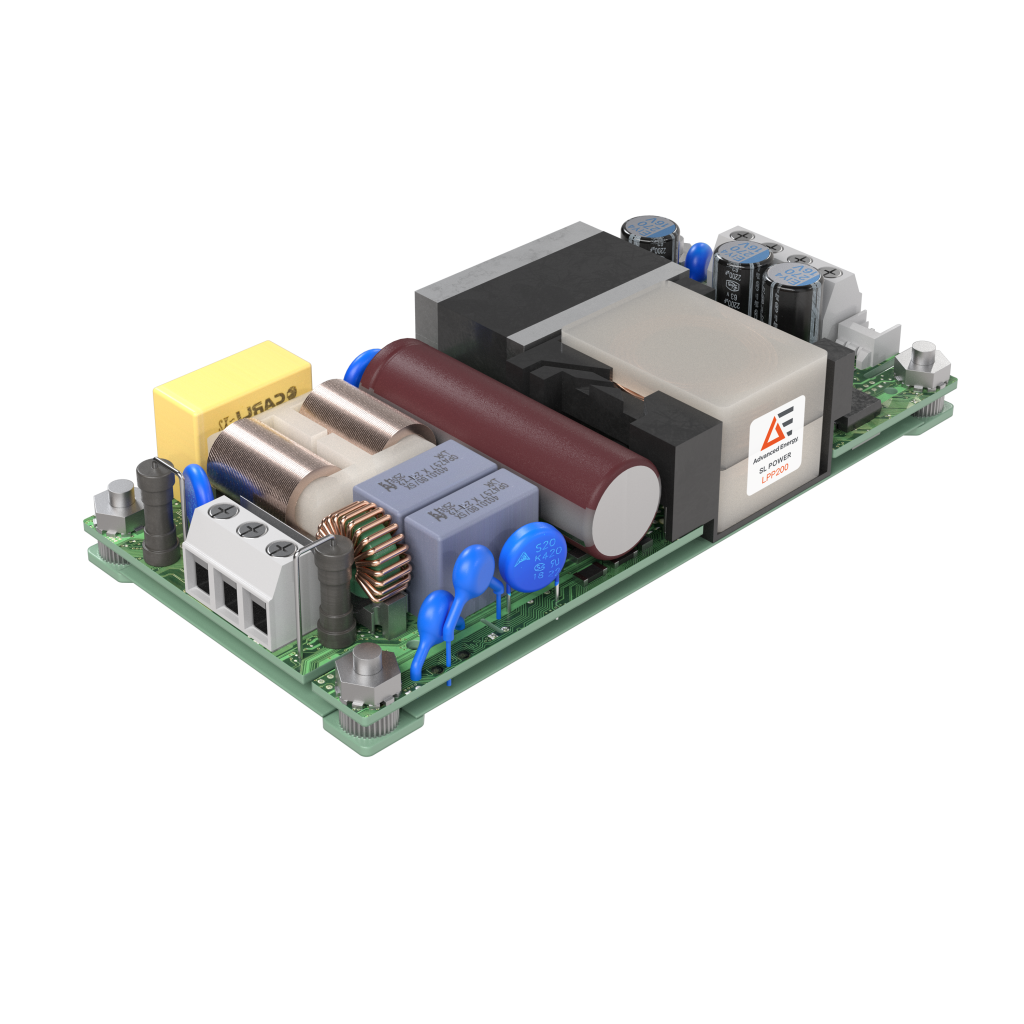

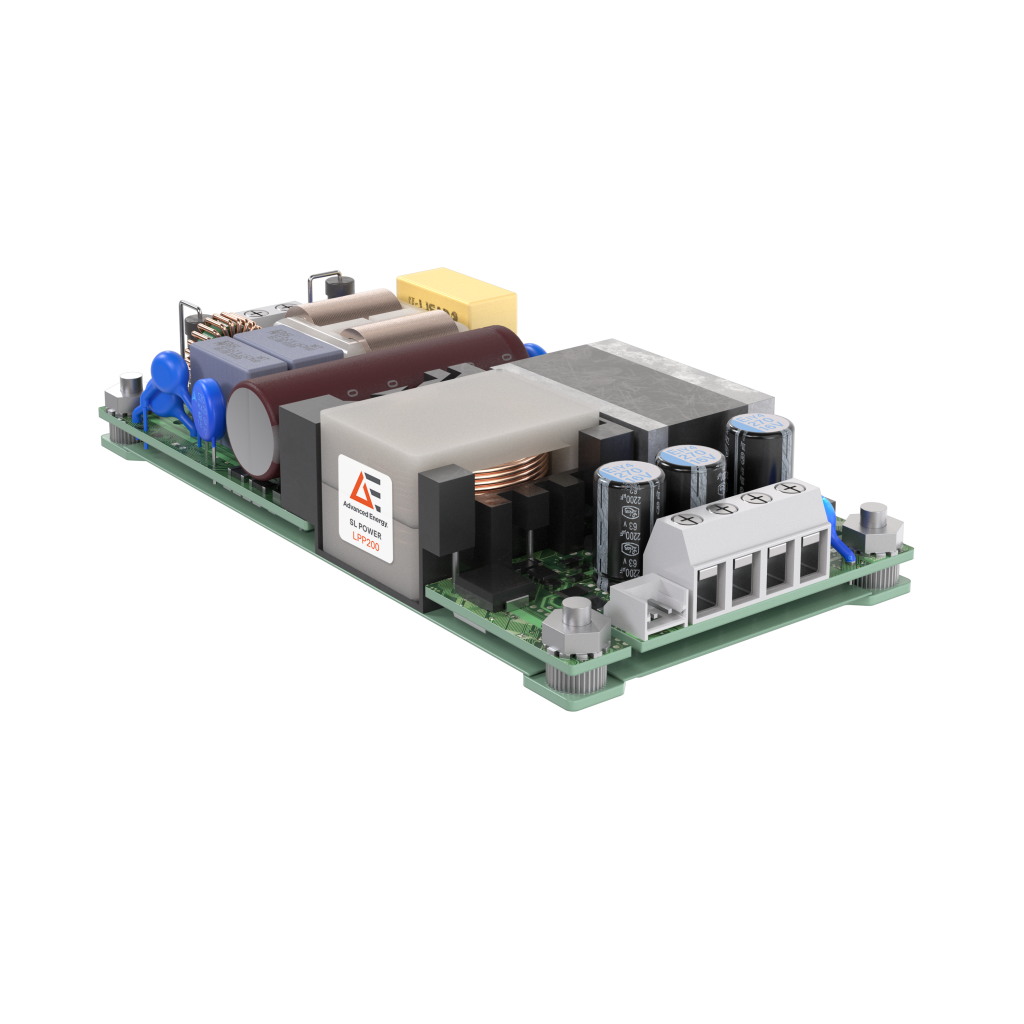

The new LPP200 from Advanced Energy is a small but mighty AC-DC power supply, featuring a compact footprint of 2” × 4” × 0.75”. Designed to support increasing levels of miniaturisation in medical and industrial devices, it is ideal for applications such as patient monitors, medical displays, and infusion pumps, helping manufacturers create more compact systems and improve overall patient experience.
Delivering power densities of up to 33 W/in³ and offering output voltages from 12 V to 48 V, the LPP200 series is built to meet the growing demand for smaller, more efficient system designs.
Key Benefits
- 200W output power
- Input voltage 85 to 264 VAC
- Single outputs
- Low profile height of 0.75”
- Medical and industrial safety certifications
- 12 V auxiliary fan output
Designed for compact medical and industrial systems
The LPP200 series was developed to support the growing demand for smaller, sleeker medical and industrial equipment, where space inside the system enclosure is limited.
Typical applications include:
- patient monitoring equipment
- medical displays
- infusion pumps
- industrial control systems
- embedded electronics
Certifications
The LPP200 series is certified to EN/IEC/cUL60601-1 safety standard and is designed for Type BF (Body Floating) medical applications. The series is also certified to the EN/IEC/cUL62368 safety standard, which is applicable to ITE and industrial applications. With high EMI and EMC performance, the series is ideally suited for demanding medical and heavy industrial requirements.
Technical Specifications
Power Output
120 W (Convection), 200 W (400 LFM airflow)
Efficiency
90% typical
Size
2” x 4” x 0.75”
Input Range
85 to 264 VAC
Output Voltages
12V, 24V &48V
Protections
OVP, OTP, OLP, Short Circuit
Short on height, long on performance. The LPP200 delivers serious power in a compact design, check it out now at www.relec.co.uk.
For more information about the Advanced Energy LPP200 series, or to discuss your application requirements, contact Relec Electronics.
