Chassis Mount Power Supplies
PCA1000F
Input: 85 – 264Vac
Outputs: 5 – 48Vdc
Power: 1000 Watt
Tamb: -20 to 70°C
Dims: 102 x 41 x 178mm
EN & UL Approved
Made in Japan
Outputs: 5 – 48Vdc
Power: 1000 Watt
Tamb: -20 to 70°C
Dims: 102 x 41 x 178mm
EN & UL Approved
Made in Japan

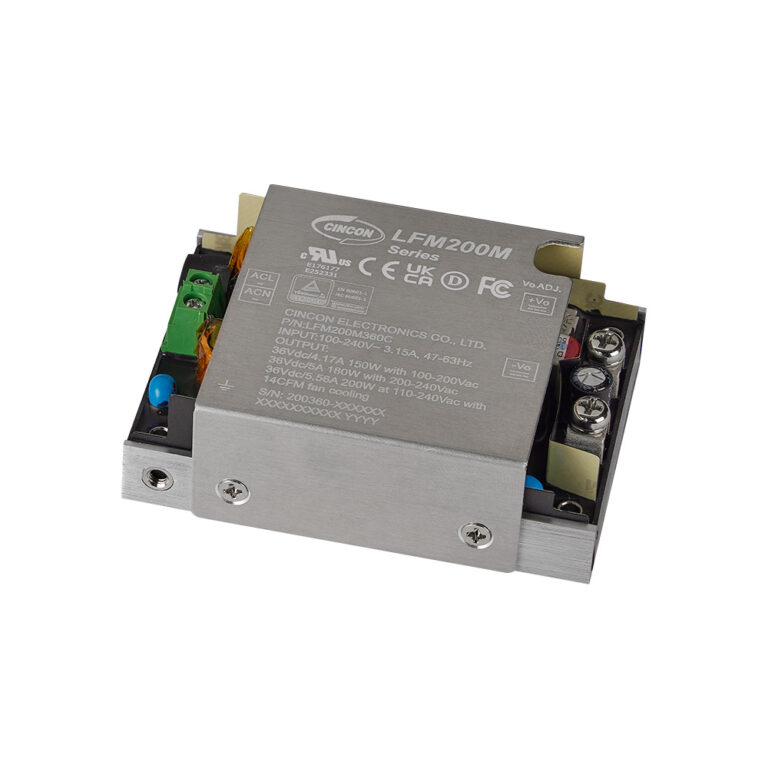

LFM200M Series
Input: 85-264Vac
Outputs: 12 to 54V
Power: 200 Watt
Tamb: -40°C to +80°C
Dims: 78.49 x 57.91 x 25.40 mm
Conduction Cooled
IEC/EN/UL 60601-1 2 MOPP Approved
Outputs: 12 to 54V
Power: 200 Watt
Tamb: -40°C to +80°C
Dims: 78.49 x 57.91 x 25.40 mm
Conduction Cooled
IEC/EN/UL 60601-1 2 MOPP Approved
AD 1500 Series
Input: 90-264VAC
Outputs: 12 to 60VDC – Digital Control
Power: 1500 Watt
Tamb: -20 to 60°C
Dims: 280 x 127 x 64mm
Supports PMBus, MODBUS, RS485, and I2C protocol
Outputs: 12 to 60VDC – Digital Control
Power: 1500 Watt
Tamb: -20 to 60°C
Dims: 280 x 127 x 64mm
Supports PMBus, MODBUS, RS485, and I2C protocol

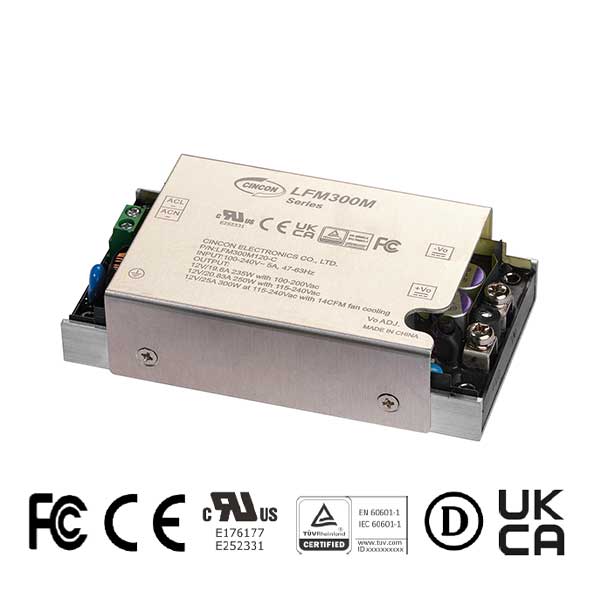

LFM300M Series
Input: 85-264Vac
Outputs: 12 to 54V
Power: 300 Watt
Tamb: -40°C to +80°C
Dims: 104 x 57.9 x 25.4 mm
IEC/EN/UL 62368-1 Approved
IEC/EN/UL 60601-1 2 MOPP Approved
Outputs: 12 to 54V
Power: 300 Watt
Tamb: -40°C to +80°C
Dims: 104 x 57.9 x 25.4 mm
IEC/EN/UL 62368-1 Approved
IEC/EN/UL 60601-1 2 MOPP Approved
K Series (AC)
Input: 85-264Vac
Outputs: 5 to 48V
Power: 150 Watt
Tamb: -40 to +71°C
Dims: 168 x 111 x 80mm (3U x 16TE)
UL / CE EN60950 Approved
5 year warranty
Made in Slovakia
Outputs: 5 to 48V
Power: 150 Watt
Tamb: -40 to +71°C
Dims: 168 x 111 x 80mm (3U x 16TE)
UL / CE EN60950 Approved
5 year warranty
Made in Slovakia
PCA300F
Input: 85 – 264Vac
Outputs: 5 – 48Vdc
Power: 300 Watt
Tamb: -20 to 70°C
Dims: 89 x 41 x 152mm
EN & UL Approved
Made in Japan
Outputs: 5 – 48Vdc
Power: 300 Watt
Tamb: -20 to 70°C
Dims: 89 x 41 x 152mm
EN & UL Approved
Made in Japan
ABS601 Series
Input: 85 – 305Vac
Outputs: 24 – 48Vdc
Power: 600 Watt
Tamb: -30 to 70°C
Dims: 250.5 x 125.0 x 60.0mm
IEC / EN 62368-1, UL 60950-1, UL 62368-1 Compliant
Sealed to IP66/67/68
Made in Slovakia
Outputs: 24 – 48Vdc
Power: 600 Watt
Tamb: -30 to 70°C
Dims: 250.5 x 125.0 x 60.0mm
IEC / EN 62368-1, UL 60950-1, UL 62368-1 Compliant
Sealed to IP66/67/68
Made in Slovakia
PDA15F
Input: 85- 264Vac
Outputs: 5 – 24Vdc
Power: 15 Watt
Tamb: -20 to 70°C
Dims: 31 x 78 x 85mm
UL62368-1 & EN62368-1 Approved
Made in Japan
Outputs: 5 – 24Vdc
Power: 15 Watt
Tamb: -20 to 70°C
Dims: 31 x 78 x 85mm
UL62368-1 & EN62368-1 Approved
Made in Japan

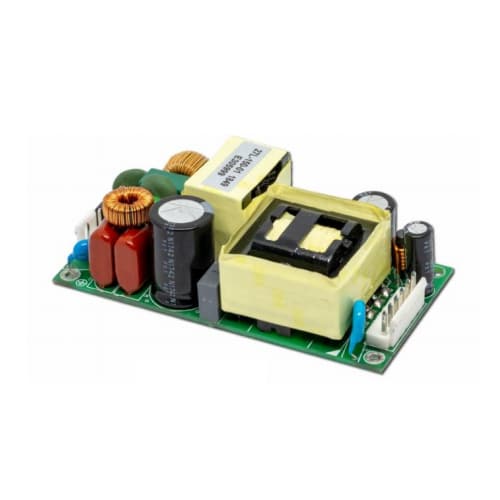

CFM150S Series
Input: 90-264Vac
Outputs: 12V to 48V
Power: 150 Watt
Tamb: -40°C to +80°C
Dims: 4″ x 2″ x 1.4″
UL / CE EN62368 Approved
Outputs: 12V to 48V
Power: 150 Watt
Tamb: -40°C to +80°C
Dims: 4″ x 2″ x 1.4″
UL / CE EN62368 Approved

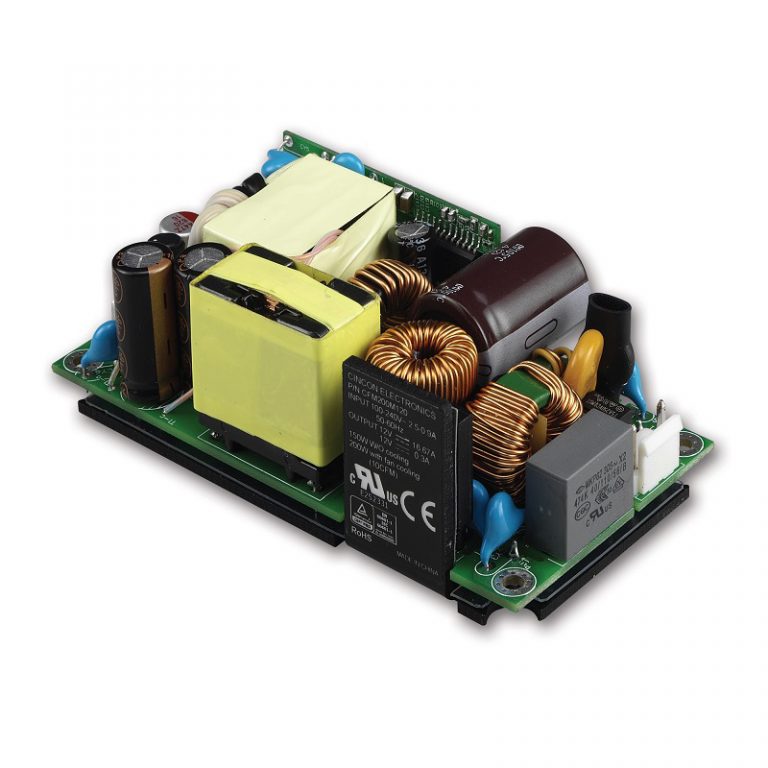

CFM200M Series
Input: 90-264Vac
Outputs: 3V3 to 48V
Power: 200 Watt
Tamb: 0°C to +70°C
Dims: 4″ x 2″ x 1.5″
EN60601 2xMOPP Approved
Outputs: 3V3 to 48V
Power: 200 Watt
Tamb: 0°C to +70°C
Dims: 4″ x 2″ x 1.5″
EN60601 2xMOPP Approved
CFM130M Series
Input: 80-264Vac
Outputs: 12V to 48V
Power: 130 Watt
Tamb: 0°C to +70°C
Dims: 2″ x 3″ x 1.2″
UL / CE EN60335-1 Approved
Outputs: 12V to 48V
Power: 130 Watt
Tamb: 0°C to +70°C
Dims: 2″ x 3″ x 1.2″
UL / CE EN60335-1 Approved

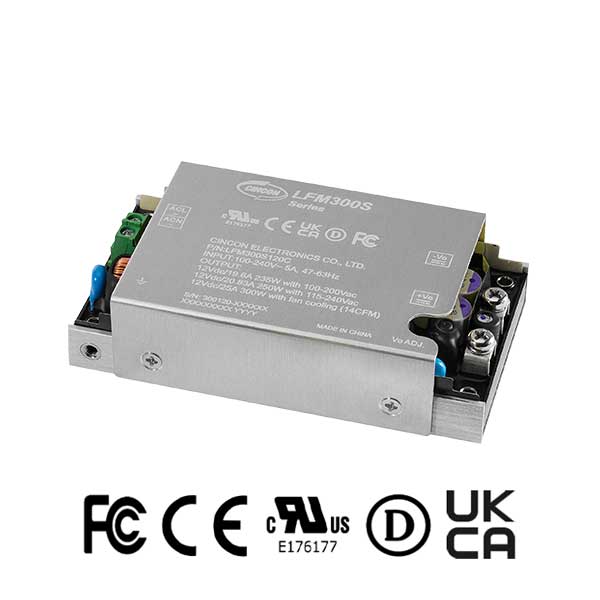

LFM300S Series
Input: 85-264Vac
Outputs: 12 to 54V
Power: 300 Watt
Tamb: -40°C to +90°C
Dims: 104 x 57.9 x 25.4 mm
IEC/EN/UL 62368-1 Approved
Outputs: 12 to 54V
Power: 300 Watt
Tamb: -40°C to +90°C
Dims: 104 x 57.9 x 25.4 mm
IEC/EN/UL 62368-1 Approved

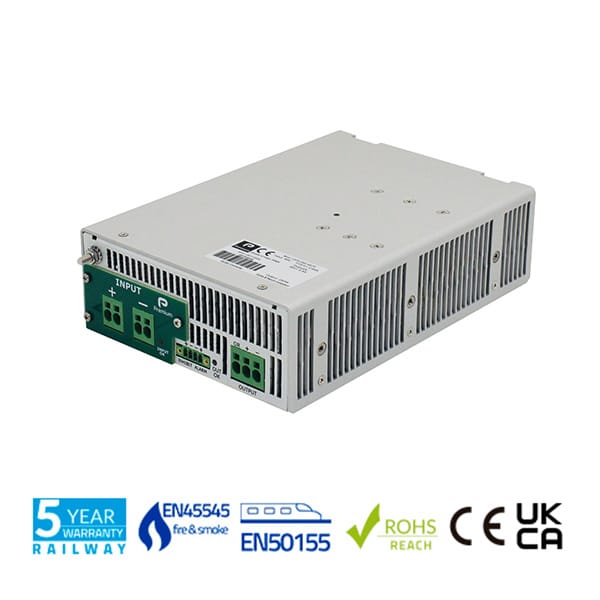

CVS-280 Series
Input: 400 to 1100Vdc
Outputs: 24V, 36V, 72V, 110Vdc
Power: 280W nom, 400W pk
Tamb: -40 to 85°C
Dims: 243 x 162 x 64.5mm
Conforms to EN62368 / EN50155
Made in Spain
Outputs: 24V, 36V, 72V, 110Vdc
Power: 280W nom, 400W pk
Tamb: -40 to 85°C
Dims: 243 x 162 x 64.5mm
Conforms to EN62368 / EN50155
Made in Spain
K Series (DC)
Input: Wide input (4:1)
Outputs: 5 to 48V
Power: 150 Watt
Tamb: -40 to +71°C
Dims: 168 x 111 x 80mm (3U x 16TE)
UL / CE EN60950 Approved
5 year warranty
Made in Slovakia
Outputs: 5 to 48V
Power: 150 Watt
Tamb: -40 to +71°C
Dims: 168 x 111 x 80mm (3U x 16TE)
UL / CE EN60950 Approved
5 year warranty
Made in Slovakia
TCM Series
Input: 9 – 36VDC
Outputs: 12-28VDC
Power: 360 Watt
Tamb: -40 to 85˚C
Dims: 81.28 x 109.22 x 25.4mm
RoHS Compliant
Made in USA
Outputs: 12-28VDC
Power: 360 Watt
Tamb: -40 to 85˚C
Dims: 81.28 x 109.22 x 25.4mm
RoHS Compliant
Made in USA
TCE Series
Input: 9-60VDC
Outputs: 56VDC
Power: 360 Watt
Tamb: -40 to 85˚C
Dims: 81.28 x 109.22 x 25.4mm
RoHS Compliant
Made in USA
Outputs: 56VDC
Power: 360 Watt
Tamb: -40 to 85˚C
Dims: 81.28 x 109.22 x 25.4mm
RoHS Compliant
Made in USA
NCM Series
Input: 9-18, 18-36 or 36-75VDC
Outputs: 2.7-15VDC
Power: 40 Watt
Tamb: -40 to 100˚C
Dims: 67.31 x 109.22 x 25.4mm
RoHS Compliant
Made in USA
Outputs: 2.7-15VDC
Power: 40 Watt
Tamb: -40 to 100˚C
Dims: 67.31 x 109.22 x 25.4mm
RoHS Compliant
Made in USA
CRS-2000 Series
Input: 24/36/48/72/110Vdc
Outputs: 24 to 110V dc
Power: 2000 Watts
Tamb: -25 to 70°C (62.5% Po)
Dims: 314 x 220 x 79mm
Approved to EN62368 / EN50155
Made in Spain
Outputs: 24 to 110V dc
Power: 2000 Watts
Tamb: -25 to 70°C (62.5% Po)
Dims: 314 x 220 x 79mm
Approved to EN62368 / EN50155
Made in Spain
CHR Series
Input: 16.8-160VDC
Outputs: 12-54VDC
Power: 300 Watt
Tamb: -40 to 90˚C
Dims: 184.6 x 116 x 39.7mm
Meets EN50155 standard
Made in USA
Outputs: 12-54VDC
Power: 300 Watt
Tamb: -40 to 90˚C
Dims: 184.6 x 116 x 39.7mm
Meets EN50155 standard
Made in USA
RCM500 Series
Input: 43.2-100.8V or 66-154V dc
Outputs: 24V dc
Power: 500 Watt
Tamb: -40 to +85°C
Dims: 209 x 141 x 40mm
UL / CE EN60950 Approved
5 year warranty
Made in Slovakia
Outputs: 24V dc
Power: 500 Watt
Tamb: -40 to +85°C
Dims: 209 x 141 x 40mm
UL / CE EN60950 Approved
5 year warranty
Made in Slovakia
CBS-10K Series
Inputs: 24/36/72/110Vdc
Output: 500Vdc
Power: 6000W nom, 10000W pk
Tamb: -40 to 55°C (full load)
Dims: 455 x 217 x 85mm
Conforms to EN62368 / EN50155
Made in Spain
Output: 500Vdc
Power: 6000W nom, 10000W pk
Tamb: -40 to 55°C (full load)
Dims: 455 x 217 x 85mm
Conforms to EN62368 / EN50155
Made in Spain

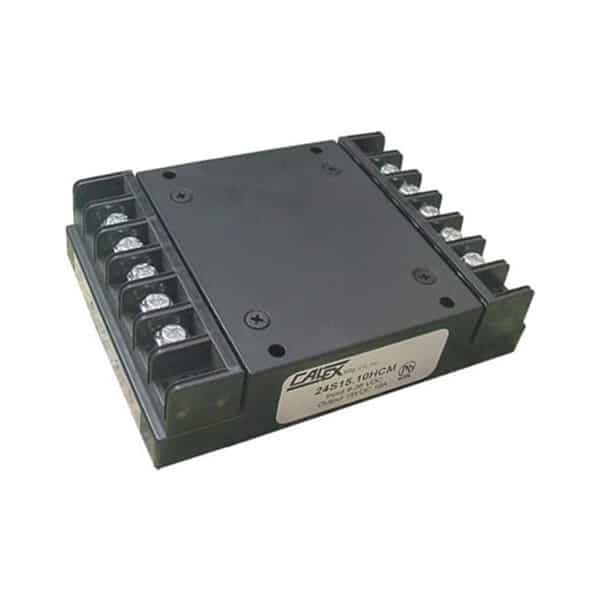

HCM Series
Input: 9-75VDC
Outputs: 3.3-24VDC
Power: 150 Watt
Tamb: -40 to 100˚C
Dims: 109.22 x 81.28 x 25.4mm
Available in RoHS and Non-RoHS
Made in USA
Outputs: 3.3-24VDC
Power: 150 Watt
Tamb: -40 to 100˚C
Dims: 109.22 x 81.28 x 25.4mm
Available in RoHS and Non-RoHS
Made in USA
EC7BW18 ECRT/EDRT Series
Input: 10-160V dc- Single range
Outputs: 5V to +/-24V dc
Power: 20 Watt
Tamb: -40°C to +100°C
Dims: 4.45″ x 2.33″ x 0.68″ (113 x 59.2 x 21.6mm)
3000V ac Isolation
Outputs: 5V to +/-24V dc
Power: 20 Watt
Tamb: -40°C to +100°C
Dims: 4.45″ x 2.33″ x 0.68″ (113 x 59.2 x 21.6mm)
3000V ac Isolation
RCM300 Series
Input: 14.4-50.4V or 43.2-154V dc
Outputs 12 or 24V dc
Power: 300 Watt
Tamb: -40 to +85°C
Dims: 188.6 x 116 x 38mm
IEC / EN 62368-1 Approved
5 year warranty
Made in Slovakia
Outputs 12 or 24V dc
Power: 300 Watt
Tamb: -40 to +85°C
Dims: 188.6 x 116 x 38mm
IEC / EN 62368-1 Approved
5 year warranty
Made in Slovakia
ACI-3000 Series – Inrush Limiter
Inputs: 12/24/36/48/72/110Vdc
Power: 3000 VA
Tamb: -40 to +80°C
EN 62368-1 Approved
5 Year Warranty
Made in Spain
Power: 3000 VA
Tamb: -40 to +80°C
EN 62368-1 Approved
5 Year Warranty
Made in Spain
OCS-260 Series
Input: 12/24/36/48/72/110Vdc
Outputs: 120 or 230Vrms ac
Power: 260 VA
Tamb: -25 to 70°C
Dims: 220 x 100 x 39.5mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 120 or 230Vrms ac
Power: 260 VA
Tamb: -25 to 70°C
Dims: 220 x 100 x 39.5mm
EN62368 / EN50155 Approved
Made in Spain
ODX-4500 Series
Input: 72/110Vdc
Outputs: 400V ac
Power: 4500 VA
Tamb: -25 to 70°C
Dims: 393 x 220 x 80.5mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 400V ac
Power: 4500 VA
Tamb: -25 to 70°C
Dims: 393 x 220 x 80.5mm
EN62368 / EN50155 Approved
Made in Spain
ODS-3000 Series
Input: 24/36/48/72/110/120/300Vdc
Outputs: 120 or 230Vrms ac
Power: 3000 or 4000VA
Tamb: -25 to 70°C
Dims: 387 x 194 x 78.5mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 120 or 230Vrms ac
Power: 3000 or 4000VA
Tamb: -25 to 70°C
Dims: 387 x 194 x 78.5mm
EN62368 / EN50155 Approved
Made in Spain
ODS-750 Series
Input: 12/24/36/48/72/110Vdc
Outputs: 120 or 230Vrms ac
Power: 750 VA
Tamb: -25 to 70°C
Dims: 292 x 130 x 49.6mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 120 or 230Vrms ac
Power: 750 VA
Tamb: -25 to 70°C
Dims: 292 x 130 x 49.6mm
EN62368 / EN50155 Approved
Made in Spain
ODX-6000 Series
Input: 24/48/72/110Vdc
Outputs: 400V ac
Power: 4500 – 6000VA
Tamb: -25 to 70°C
Dims: 455 x 260 x 84.5mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 400V ac
Power: 4500 – 6000VA
Tamb: -25 to 70°C
Dims: 455 x 260 x 84.5mm
EN62368 / EN50155 Approved
Made in Spain
ODX-1300 Series
Input: 24/72/110Vdc
Outputs: 230 or 400Vrms ac
Power: 1300 VA
Tamb: -25 to 70°C
Dims: 315 x 178 x 66.5mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 230 or 400Vrms ac
Power: 1300 VA
Tamb: -25 to 70°C
Dims: 315 x 178 x 66.5mm
EN62368 / EN50155 Approved
Made in Spain
OVX-6400 Series
Input: 400-900Vdc
Outputs: 400Vac 3ph
Power: 6400VA / 8000W pk
Tamb: -25 to 80°C
Dims: 85.8 x 372 x 450.3 mm
Meets EN50124-1 / EN50155 / EN62368-1
Made in Spain
Outputs: 400Vac 3ph
Power: 6400VA / 8000W pk
Tamb: -25 to 80°C
Dims: 85.8 x 372 x 450.3 mm
Meets EN50124-1 / EN50155 / EN62368-1
Made in Spain
ODX-3000 Series
Input: 24/36/48/72/110Vdc
Outputs: 400V ac
Power: 3000 VA
Tamb: -25 to 70°C
Dims: 393 x 220 x 80.5mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 400V ac
Power: 3000 VA
Tamb: -25 to 70°C
Dims: 393 x 220 x 80.5mm
EN62368 / EN50155 Approved
Made in Spain
ODS-1500 Series
Inputs: 12/24/36/48/72/110Vdc
Outputs: 120 or 230Vrms ac
Power: 1500 VA
Tamb: -25 to 70°C
Dims: 360 x 160 x 64.5mm
EN62368 / EN50155 Approved
Made in Spain
Outputs: 120 or 230Vrms ac
Power: 1500 VA
Tamb: -25 to 70°C
Dims: 360 x 160 x 64.5mm
EN62368 / EN50155 Approved
Made in Spain
OPS-260 Series
Input: 12/24/36/48/72/110Vdc
Outputs: 120 or 230Vrms ac
Power: 220W
Tamb: -40 to 70°C
Dims: 67 x 249 x 135mm – Sealed to IP66
EN45545-2 / EN50155 Approved
Made in Spain
Outputs: 120 or 230Vrms ac
Power: 220W
Tamb: -40 to 70°C
Dims: 67 x 249 x 135mm – Sealed to IP66
EN45545-2 / EN50155 Approved
Made in Spain
ACB-3000 Series Power Transfer Switch
Input: 230Vac or 120Vac (50hz)
Outputs: 230Vac & 120Vac
Power: 3000VA
Tamb: -40 to +85°C
Dims: 78,34 x 60 x 200mm
IEC 62368-1 Approved
Made in Spain
Outputs: 230Vac & 120Vac
Power: 3000VA
Tamb: -40 to +85°C
Dims: 78,34 x 60 x 200mm
IEC 62368-1 Approved
Made in Spain
