APPLICATION
The ABS601 Series of AC-DC power supplies provides up to 600 W of regulated output power through a wide input voltage range 85 – 305 VAC in a single output of 24 VDC or 48 VDC.
The ABS601 Series comes in a 4.92 x 9.86 x 2.36 inch form factor with a full set of protection features.

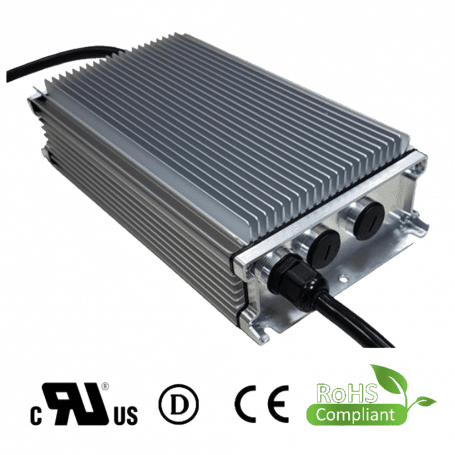

The ABS601 Series is available in an aluminium extruded chassis having fins for an optimal heat dispersion via natural convection. The input / output connections are fixed to the chassis through water tight glands, which combined with the sealed enclosure, give the power supply an IP66/67/68 ingress protection grade.
The -SL option offers a 5 VDC stand-by output and a set of control signals: +/- remote sense, remote On/Off (-PS_Inhibit), power good (PS_Ok), I-share (ISHARE1+V_SLOGIC). The ABS601 Series complies with the latest international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
These power supplies are ideal for telecom, datacom, industrial equipment and other applications.
feature list
Sealed enclosure, IP66/67/68 Ingress Protection grade
High efficiency up to 94% (50% to 100% load)
Low stand-by power consumption (< 0.35 W)
Universal input voltage range 85 – 305 VAC
Input inrush current limiting <30 A
800 W peak power (up to 10 s)
Single 24, 48 VDC voltages
Active PFC, EN61000-3-2 compliant (Class C, >25% load)
Low earth leakage current (typ. <400 µA, 264 VAC, 60 Hz)
Over temperature, OV, OC and SC protections.
Stand by +5 V, 1.5 A output.
Remote On / Off signal
IT approval to IEC/EN 60950-1and IEC/EN 62368-1
LED lighting approval to UL 8750
UV resistant input / output cables
Overall dimensions 125.0 x 250.5 x 60.0 mm (4.92 x 9.86 x 2.36 in)
RoHS 3 compliant (Directive 2015/863/EU)
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| ABS601-1T24 | 85 - 305Vac | 24Vdc | 600W |
| ABS601-1T24-SL | 85 - 305Vac | 24Vdc | 600W |
| ABS601-1T48 | 85 - 305Vac | 48Vdc | 600W |
| ABS601-1T48-SL | 85 - 305Vac | 48Vdc | 600W |
