Power > CRS-2000 Series

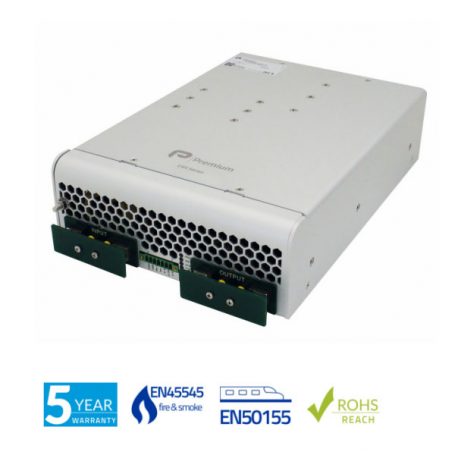

CRS-2000

CRS-2000 Series

Input: 24/36/48/72/110Vdc
Outputs: 24 to 110V dc
Power: 2000 Watts
Tamb: -25 to 70°C (62.5% Po)
Dims: 314 x 220 x 79mm
Approved to EN62368 / EN50155
Made in Spain

Make an enquiry
Request a sample
X

Make an Enquiry

  • This field is for validation purposes and should be left unchanged.
X

Request a Sample

  • This field is for validation purposes and should be left unchanged.
have a question? Contact us now

APPLICATION

The CRS-2000 Series are 2000W DC-DC converters ideally suited to the railway industry. They are fully approved to EN50155, EN50121-3-2 & EN45545

The CRS-2000 series have galvanic isolation between input & output, & and a fixed switching frequency.

For optimum regulation, the remote sensing terminals can be connected to the load. This will allow a power cable voltage drop of up to 0.3 V on each cable to be offset.

The device is protected against overloads and short-circuits by means of a current limiting circuit. The device is also protected against reverse polarity input voltage, and the input fuse blows if an improper connection is made.

When a converter input under-voltage condition occurs, the converter is disabled, thus preventing the battery from becoming totally discharged.

MODEL NUMBERINPUT RANGEOUTPUTPOWER
CRS-2000-695114.4-33.6VDC24V2000W
CRS-2000-695214.4-33.6VDC48V2000W
CRS-2000-695314.4-33.6VDC72V2000W
CRS-2000-695414.4-33.6VDC110V2000W
CRS-2000-695521.6-50.4VDC24V2000W
CRS-2000-695621.6-50.4VDC48V2000W
CRS-2000-695721.6-50.4VDC72V2000W
CRS-2000-****21.6-50.4VDC110V2000W
CRS-2000-695928.8-67.2VDC24V2000W
CRS-2000-696028.8-67.2VDC48V2000W
CRS-2000-****28.8-67.2VDC72V2000W
CRS-2000-****28.8-67.2VDC110V2000W
CRS-2000-696343.2-100.8VDC24V2000W
CRS-2000-696443.2-100.8VDC48V2000W
CRS-2000-****43.2-100.8VDC72V2000W
CRS-2000-****43.2-100.8VDC110V2000W
CRS-2000-696766-154VDC24V2000W
CRS-2000-696866-154VDC48V2000W
CRS-2000-****66-154VDC72V2000W
CRS-2000-697066-154VDC110V2000W

Downloads

Click on the link below for an instant download.

  • CRS-2000 Series Datasheet
