CFM Series AC DC Converters with 200% Peak Load Capability

14th June 2022

When you need that little bit extra to power your smart home

Today’s homes have more automated devices than ever before. This trend is partly driven by the so-called smart home and while a lot of the attention is on wireless connectivity to transmit data from sensors, the real workhorse that is making this evolution happen are miniature power supplies which serve the countless motors in appliances.

In tandem with the trend for automation in the home, miniaturisation means that these appliances are reducing in size, requiring smaller motors and smaller power supplies to deliver energy efficiently. These devices often need a power supply that can offer higher power levels for short periods of time, such as when the motors first start up.

200% Peak power for motor driven applications

Typical applications are kitchen appliances, such as coffee machines or food blenders, as well as newer applications such as robot vacuums and automatic door, window and curtain systems for security. Healthcare settings will also have electric beds to raise the patient in comfort. All of these require extremely small, efficient power supplies to drive compact motors inside the end product.

Another common feature is that the design is expected to be small, lightweight and inexpensive to buy and run. They are also expected to have a long operating life.

These design constraints require a specialised power supply to drive the motor reliably and efficiently. Principally, it needs to withstand a high transient peak current without entering protection mode. A higher wattage power supply may be able to accommodate the peak current but increases the size (and often the cost) of the end product which is destined for the price-sensitive consumer market. Cincon’s CFM series of peak load power supplies have been designed to meet these, as well as new and emerging motor-driven applications. We look at some typical applications below:

Coffee Machines

In a coffee machine, for example, the motors are used to grind coffee beans in seconds as well as powering the pumps to force the water through the coffee. This requires a power supply that can withstand 120W peak load for five seconds and 80W of nominal power.

Robot Vacuums

Robot vacuums are convenient household appliances that have been introduced relatively recently. Here, the motor drives the vacuum’s wheels to move it around the floor. The design principle behind the robot vacuum is to be small, neat and agile. When it bumps into walls or furniture, the motor needs higher wattage against the torque to change the direction of travel. An extra 50%-100% of output current is required for two to three seconds when an obstacle is met. In a traditional power supply design, overcurrent protection would ‘kick in’ and the power supply would fail. The CFM series provides a peak load power feature ensures the robot’s wheels receive sufficient current to drive the wheels in another direction.

Automatic Doors / Curtains / Blinds

Automatic doors, windows and curtains are convenient security features in a smart home. By necessity, the motor is integrated into a device which is located in a tight, confined space. Again, peak current requirement can be high during operation, and Cincons CFM series has been developed for use in these smart home applications.

Healthcare Beds

In some homes, particularly for those with limited mobility, as well as in hospitals and care homes, electric beds and chairs are a practical way to help users and prevent injury in carers. The motor is used to elevate the bed, with a person in it. This action must only take a few seconds but can require peak power of up to 132W within one second while operating at less than 60W nominal output power. The Cincon CFM61S is able to achieve peak load to 120W which is  double the rated output power. The CFM61S can be modified to marginally above the higher output wattage to meet the needs of a specific application.

CFM Series Peak Laod AC DC Convertrs from Cincon

CFM25S Series

Input: 90 – 264Vac
Outputs: 5 to 48Vdc
Power: 25W / 50W Peak
Tamb: -30 to +80°C
Dims: 2″ x 1.1″ x 1.0″
UL/EN62368 Approved
EN60335 Approved

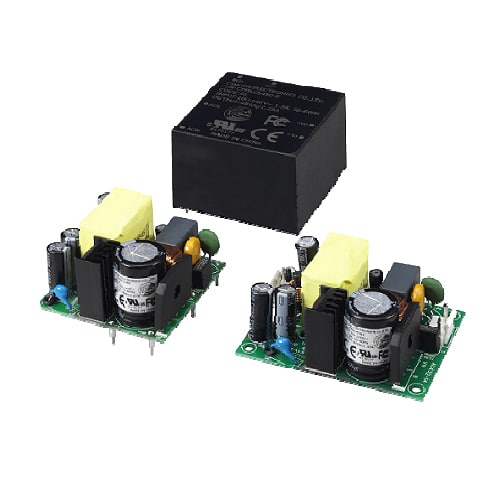

CFM61S Series | 60 Watt | UL / CE EN62368 Approved | AC-DC PowerCFM61S Series | 60 Watt | UL / CE EN62368 Approved | AC-DC Power

CFM61S Series

Input: 90 – 264Vac
Outputs: 5 to 48Vdc
Power: 60W / 120W Peak
Tamb: -30 to +70°C
Dims: 2″ x 2″ x 1.5″
UL/EN62368 Approved
EN60335 Approved

CFM41S AC-DC Converter Open Frame
CFM41S Open Frame by Cincon

CFM41S Series

Input: 90 – 264Vac
Outputs: 5 to 48Vdc
Power: 40W / 80W Peak
Tamb: -30 to +80°C
Dims: 2″ x 2″ x 1.0″
UL/EN62368 Approved
EN60335 Approved

CFM81S Series

Input: 90 – 264Vac
Outputs: 5 to 24Vdc
Power: 80W / 160W Peak
Tamb: -30 to +70°C
Dims: 3″ x 2″ x 1.4″
UL/EN62368 Approved
EN60335 Approved
