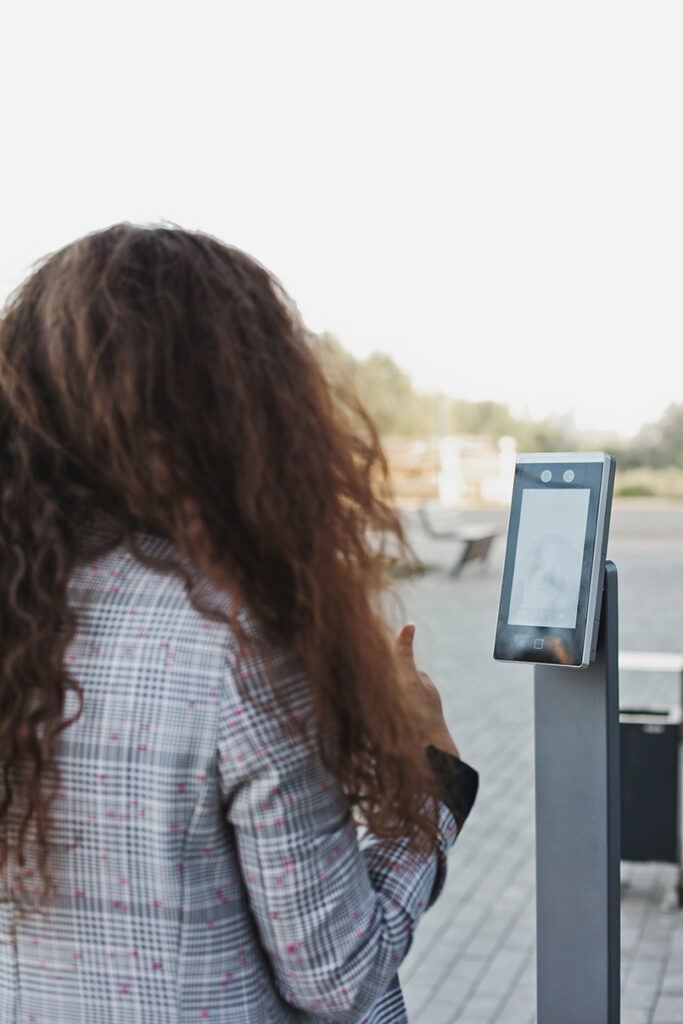

Site Access Display Solution

"We want a display for our site access system"


Our customer was looking for a series of rugged displays and touch screens for use in a high security site access system.  The solution had to be vandal proof, weather resistant and scalable from 5″ to 12.1″ using the same interfaces across all sizes.

  • 10.4 LVDS TFT LCD Display

    Screen Size: 10.4″ VGA, XGA, SVGA
    4:3 Aspect Ratio
    Active area: 211.1(W) x 158.4(H) mm
    Resolution: 800 RGB x 600;
    1024 RGB x 768 pixels
    Interface: LVDS-6/8 bit 20/30 pin interface


The H2O line of touch panels from Rocktouch provided the perfect base product, but we needed to ensure that we could meet all of our customers requests.  Given the nature of the application we had to find a solution which used a minimum of 3mm toughened with optical bonding glass yet still offer excellent water rejection.

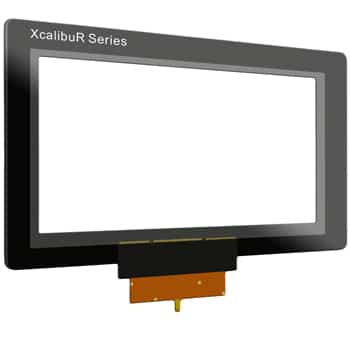

  • 10.1 PCAP Touch Panel

    Construction: Glass/Film/Film (GFF)
    Number of fingers: 10
    Cover lens: Up To 10mm
    Signal to Noise ratio: 32V
    Full Water & Glove Touch


Our final solution was a suite of products with the following features:

  • Vandal proof cover glass
  • Anti reflective coating
  • -40 degree operation & UV protection
  • Low prototyping costs

Give us a call today and let’s see if we can find your ideal display solution.

  • 15.6 LVDS TFT LCD Display

    Screen size: 15.6″
    WXGA Widescreen
    Active area: 344.2(W) x 193.5(H) mm
    Resolution: 1366 RGB x 768 Pixels
    Interface: LVDS-8 Bit 30 Pin
