1500 W Power That Listens.
High-power meets high voltage, digitally programmable AC-DC power supply designed for industrial systems requiring precision control, scalability, and advanced communication. The AD-1500-HV series delivers up to 1500 W with configurable output, parallel capability, and multiple interface options for system integration.

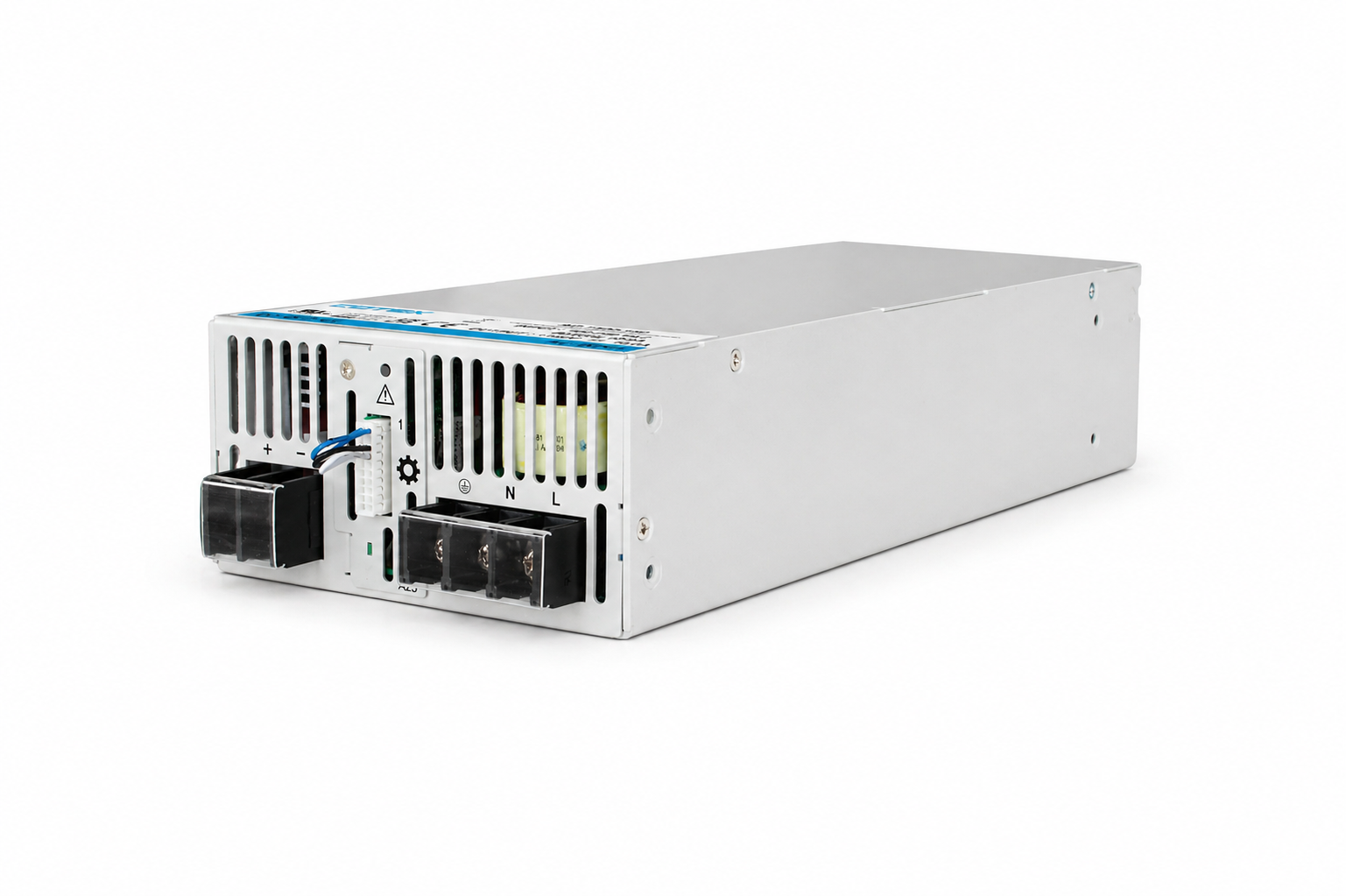

The Cotek AD-1500-HV series is a programmable AC-DC power supply platform engineered for high-performance industrial and automation applications. Delivering a 1500 W output across multiple options of high voltage variants (120 Vdc, 150 Vdc, 250 Vdc, 400 Vdc), the series enables flexible system design with precise voltage and current control.
With programmable output from 0–105%, integrated communication protocols, and support for parallel operation via CANBus, the AD-1500-HV is suited to scalable and networked power architectures. Built-in intelligent monitoring, remote control capability, and comprehensive protection features ensure reliable operation in demanding environments.
key features
- 1500 W programmable AC-DC power supply platform
- Universal input range: 90–264 Vac / 127–370 Vdc
- Programmable output voltage and current (0–105%)
- Multiple output options: 120 Vdc, 150 Vdc, 250 Vdc, 400 Vdc
- Parallel operation with current sharing via CANBus
- High efficiency: up to 92% typical
- RS-485, MODBUS, PMBus and Ethernet communication options
- Remote on/off control and Power OK signal
- Built-in OR’ing FETs and auxiliary output: +5 V / 1.0 A
- Protection: OVP, OCP, OLP, OTP, fan failure
applications
- Industrial automation and control systems
- Test and measurement equipment
- Telecom and network infrastructure
- Battery charging and energy systems
- High-voltage DC bus architectures
compliance & safety
- UL 62368-1 / EN 62368-1
- EN 55032, EN 61204-3, EN 61000-6-3
- EN 61000-3-2 / EN 61000-3-3
- EN 55035, IEC 61000-4 series
environmental & mechanical
- Operating temperature: -25°C to +60°C
- Cooling: temperature-controlled fan
- Dimensions: 127.8mm x 64mm x 296.3mm
- Isolation: up to 3 kVac input to output
Combining high power density, digital programmability, and flexible communication interfaces, the AD-1500-HV series supports advanced system integration while maintaining stable and efficient power delivery in industrial environments.
Explore the AD-1500-HV at www.relec.co.uk or contact Relec to discuss your power continuity requirements.
