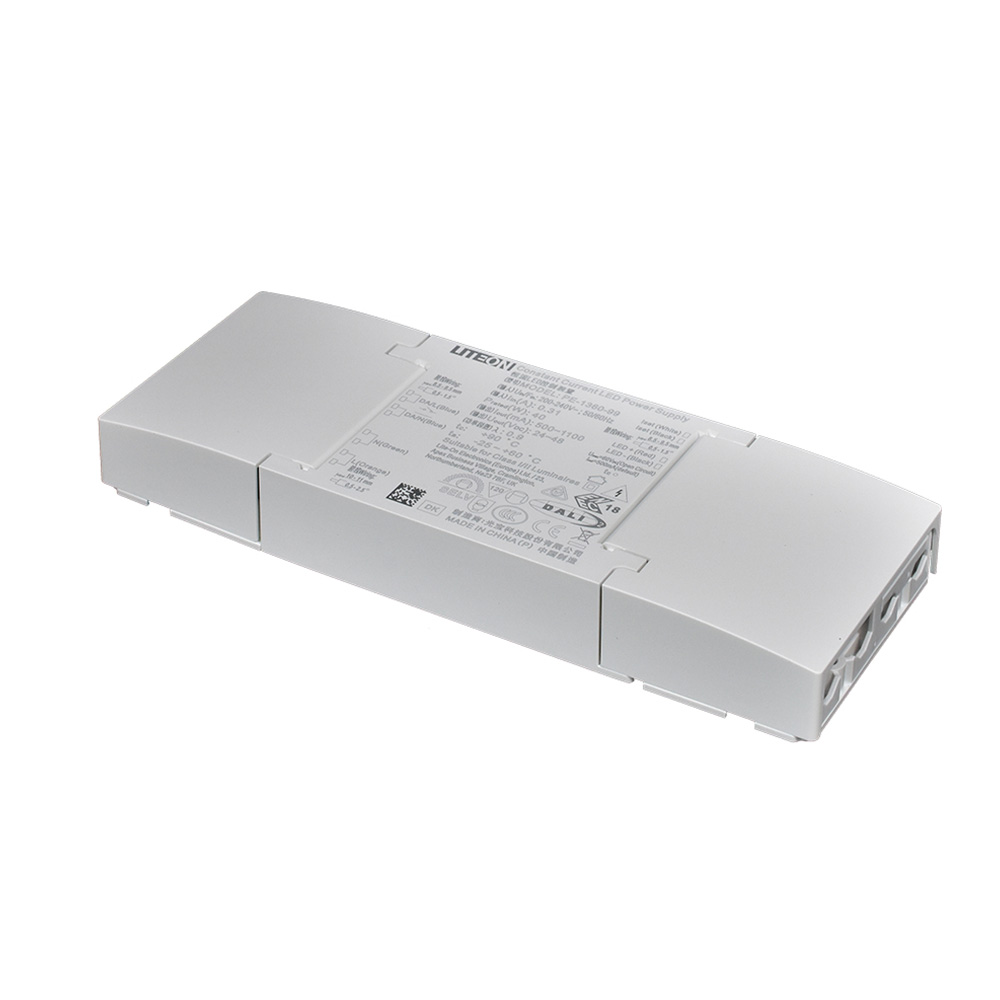

PE-1360-99DK

The PE-1360-99DK is a 40 W DALI-2 LED driver designed for constant-current control in professional lighting systems. It accepts 180–264 Vac or 180–264 Vdc and provides an adjustable 0.5–1.1 A output across a 24–48 Vdc range. DALI-2 and Push Dim interfaces enable dimming from 1–100%, while AC loop-through simplifies the connection of multiple drivers within a lighting installation. The Class II, IP20 design provides high power factor, standby consumption below 0.5 W and efficiency of up to 89%. Integrated overvoltage, short-circuit and overtemperature protection, emergency-lighting support and a rated lifetime of up to 100,000 hours make it suitable for commercial, architectural and indoor industrial luminaires.

Category:
Brands:

Access detailed specifications, performance data, and technical drawings for the PE-1360-99DK in our comprehensive datasheet.

Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

We’re online and ready to chat.

PE-1360-99DK

The PE-1360-99DK constant current LED driver delivers 40W with an output range of 24-48 V dc and 0.5-1.1 A, achieving up to 88% efficiency and >0.9 power factor. It supports DALI-2 and Push Dim control and includes short-circuit, over-voltage, and thermal protection. Class II isolation makes it suitable for commercial and architectural luminaires with emergency function. Certified to IEC 61347, ENEC, CE, and RCM.

FEATURES

Rated Power 40W
Input Voltage 180-264 V ac
Output Voltage 24-48 V dc
Output Current 0.5-1.1 A
Dimming Function DALI-2 / Push Dim (1-100 %)
Certifications CE, ENEC, RCM
