PDA300F Series

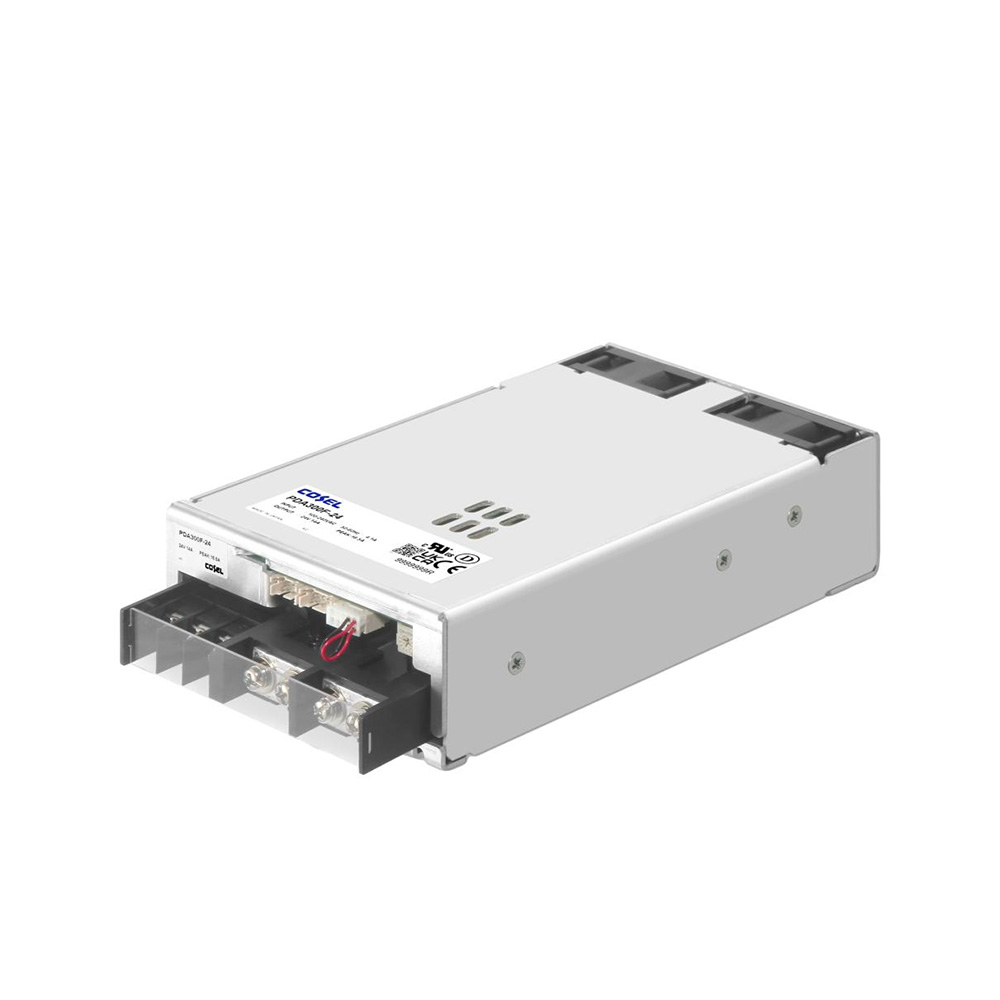

PDA300F Series from Cosel, 300W enclosed AC-DC power supply.
Compact and powerful, the PDA300F offers universal input, multiple output options, and advanced features including remote control and sensing.
download the PDA300F Series data sheet
Access detailed specifications, performance data, and technical drawings for the PDA300F Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The PDA300F Series is a 300W enclosed ac-dc power supply with universal 85-264V ac input and efficiencies up to 86%. It provides single outputs of 12V, 15V, 24V, 36V or 48V, with support for remote sense, remote on/off, current share and alarm signals. With built-in PFC, inrush limiting, overcurrent and overvoltage protection, and forced cooling, it is suited for automation, test equipment and industrial applications. Certified to UL62368-1, EN62368-1, CE, UKCA, RoHS and complies with DEN-AN.
FEATURES
INDUSTRY
| Model | Input Voltage | Output Voltage | Power Rating |
|---|---|---|---|
| PDA300F-3R3 | 85-264V ac | 3.3V | 198W |
| PDA300F-5 | 85-264V ac | 5V | 300W |
| PDA300F-5 | 85-264V ac | 48V | 300W |
| PDA300F-12 | 85-264V ac | 12V | 324W |
| PDA300F-15 | 85-264V ac | 15V | 330W |
| PDA300F-24 | 85-264V ac | 24V | 336W |
| PDA300F-36 | 85-264V ac | 36V | 324W |
| PDA300F-48 | 85-264V ac | 48V | 336W |
Need something a little more bespoke?
For the right projects, we offer custom power solutions tailored to specific requirements. Get in touch to see if your brief fits the bill.
Decades of know-how guiding every recommendation, because good advice beats guesswork. Speak to real engineers, not sales scripts. From design concepts to installation queries, our technical team is with you every step of the way.
Contact us to find out how we can elevate your project
Downloads
Click on the download button for an instant download.
