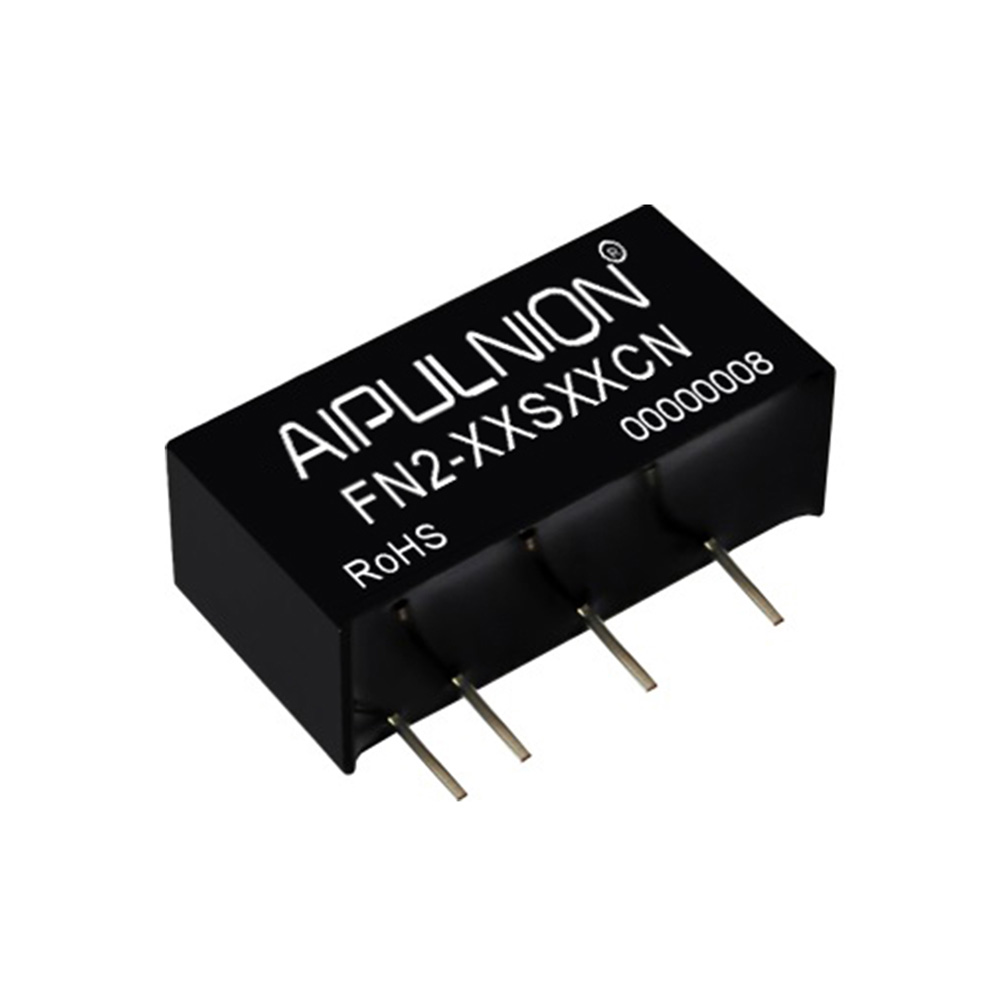

FN2-xxxxxCN Series
FN2-xxxxxCN Series from Aipu, 2W isolated dc-dc converter.
Compact 2W isolated dc-dc converter with fixed input voltage and high efficiency up to 86%, ideal for instrumentation and control applications.
download the FN2-xxxxxCN Series data sheet
Access detailed specifications, performance data, and technical drawings for the FN2-xxxxxCN Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
FN2-xxxxxCN Series dc-dc converters provide 2W of isolated, unregulated output power with efficiency up to 86% and 1500V dc isolation. Available with single or dual outputs from 3.3V to ±24V, they offer low ripple and noise, continuous short-circuit protection, and a wide operating temperature range from -40°C to +85°C. Compact SIP packaging ensures space-saving installation in communication systems, relay drives, sensors, and industrial equipment. Certified to UL94 V-0 safety standard.
FEATURES
INDUSTRY
| Model | Input Voltage | Output Voltage | Power Rating |
|---|---|---|---|
| FN2-05S3V3CN | 4.5-5.5V dc | 3.3V | 2W |
| FN2-05S05CN | 4.5-5.5V dc | 5V | 2W |
| FN2-05S12CN | 4.5-5.5V dc | 12V | 2W |
| FN2-12S05CN | 10.8-13.2V dc | 5V | 2W |
| FN2-12S12CN | 10.8-13.2V dc | 12V | 2W |
| FN2-24S15CN | 21.6-26.4V dc | 15V | 2W |
| FN2-24S24CN | 21.6-26.4V dc | 24V | 2W |
| FN2-05D12CN | 4.5-5.5V dc | ±12V | 2W |
| FN2-12D15CN | 10.8-13.2V dc | ±15V | 2W |
| FN2-24D12CN | 21.6-26.4V dc | ±12V | 2W |
