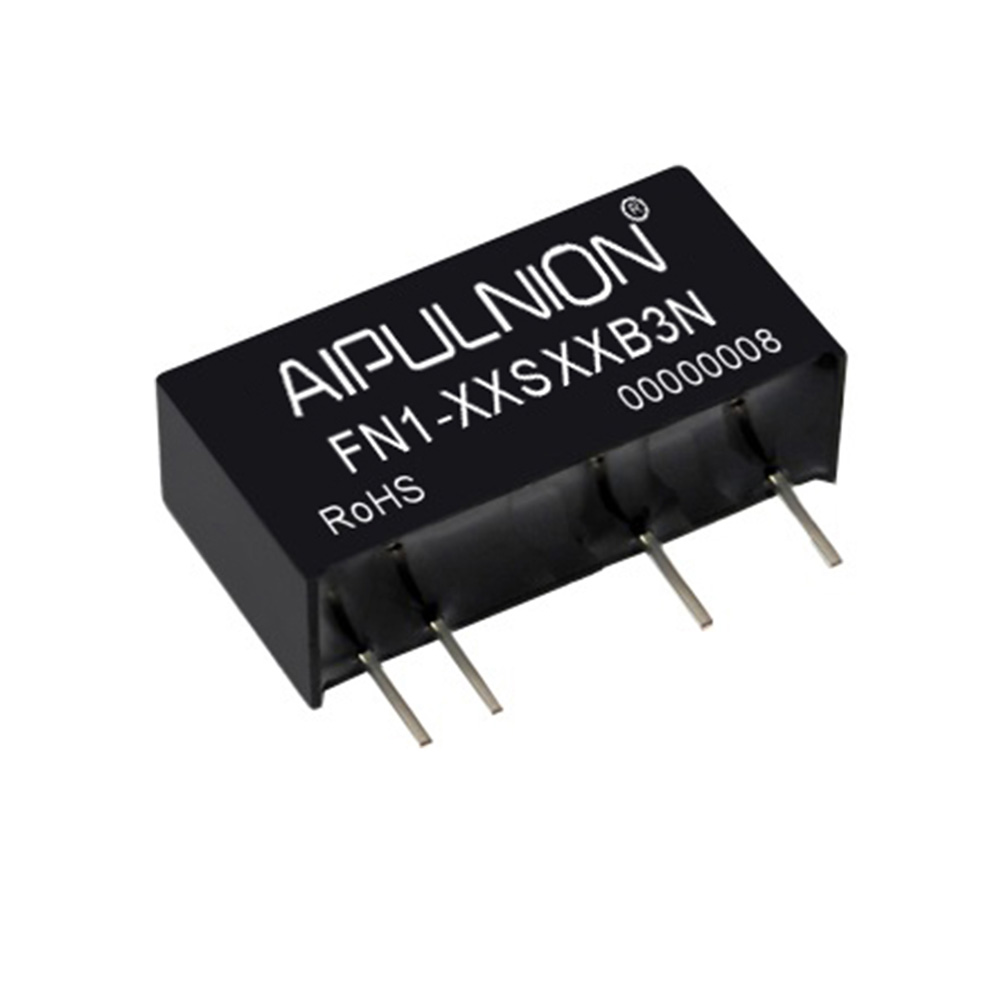

FN1-B3N Series
FN1-B3N Series from Aipu, 1W isolated unregulated dc-dc converter.
Compact 1W isolated unregulated converter with up to 83% efficiency and 3000V dc isolation for communication and instrumentation applications.
download the FN1-B3N Series data sheet
Access detailed specifications, performance data, and technical drawings for the FN1-B3N Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The FN1-B3N Series dc-dc converters provide 1W of isolated output power in a SIP package with fixed input voltages of 3.3V, 5V, 12V, 15V, or 24V dc. Designed for board-level isolation, they offer efficiencies up to 83%, low ripple and noise, and continuous short-circuit protection. With -40°C to +105°C operation, plastic casing meeting UL94 V-0, and 3000V dc isolation, they suit control circuits, relay driving, data exchange, and communication systems.
FEATURES
INDUSTRY
| Model | Input Voltage | Output Voltage | Power Rating |
|---|---|---|---|
| FN1-05S05B3N | 5V dc | 5V | 1W |
| FN1-05S12B3N | 5V dc | 12V | 1W |
| FN1-05S15B3N | 5V dc | 15V | 1W |
| FN1-12S05B3N | 12V dc | 5V | 1W |
| FN1-12S12B3N | 12V dc | 12V | 1W |
| FN1-12D15B3N | 12V dc | ±15V | 1W |
| FN1-24S05B3N | 24V dc | 5V | 1W |
| FN1-24S24B3N | 24V dc | 24V | 1W |
| FN1-24D12B3N | 24V dc | ±12V | 1W |
| FN1-24D24B3N | 24V dc | ±24V | 1W |
