EM1024 Series

EM1024 Series from EDAC POWER, 16-36W AC-DC medical desktop adaptors
Compact medical adaptors with universal input, IEC case options and full protection features.

Add to Quote

Add to Compare

Category: Desktop Power Supplies

Brands: EDAC POWER

download the EM1024 Series data sheet

Access detailed specifications, performance data, and technical drawings for the EM1024 Series in our comprehensive datasheet.

View downloads

Need a 3D drawing?

Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

request a drawing

Stuck on specs? Let’s chat

We’re online and ready to chat.

Open chat

APPLICATION

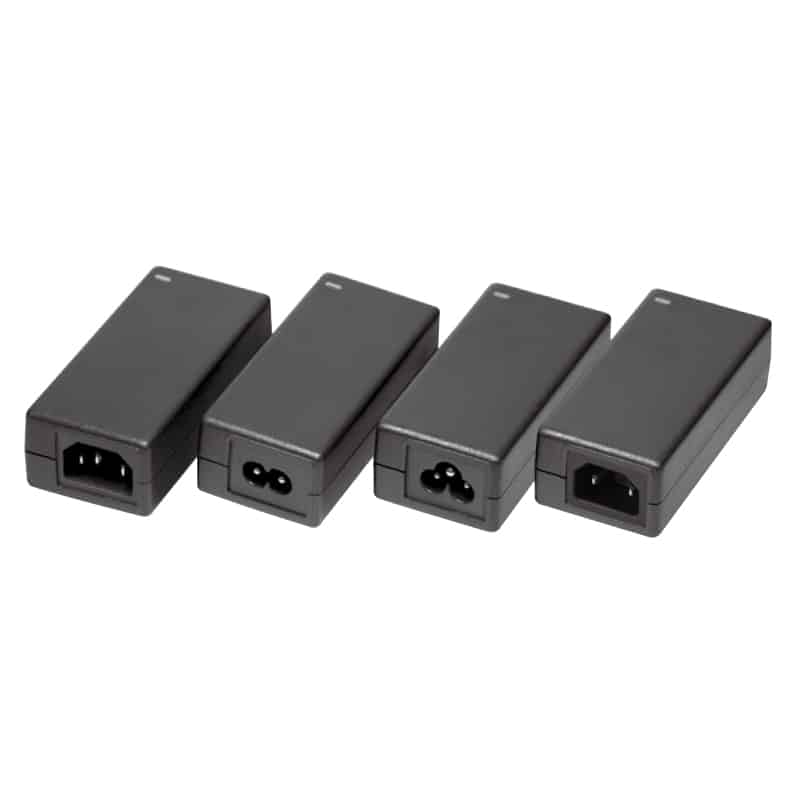

The EM1024 Series delivers 16W to 36W from a 100-240V ac input, with outputs from 5V to 48V. With high efficiency to DOE Level VI and low no-load power consumption, these adaptors meet international medical safety approvals. Built-in protections include overvoltage and short circuit protection, with auto recovery. Multiple IEC case options (C14, C8, C6, C18) are available. Certified to UL60601-1, TUV EN60601-1, IEC60601-1, CB, CE and FCC.

FEATURES

Input Range 100-240V ac

Output Range 5-48V

Power 16-36W

Form Factor Medical desktop adaptor

Cooling Method Convection

Certifications UL60601-1, TUV EN60601-1, IEC60601-1, CB, CE, FCC

INDUSTRY

Medical

Model	Input Voltage	Output Voltage	Power Rating
EM1024A	100-240V ac	5-8V	16W
EM1024B	100-240V ac	5-8V	20W
EM1024C	100-240V ac	5-8V	24W
EM1024D	100-240V ac	9-11V	18W
EM1024E	100-240V ac	9-11V	24W
EM1024F	100-240V ac	9-11V	27W
EM1024G	100-240V ac	12-17V	20W
EM1024H	100-240V ac	12-17V	30W
EM1024J	100-240V ac	18-24V	24W
EM1024K	100-240V ac	18-24V	30W
EM1024M	100-240V ac	36-48V	20W
EM1024N	100-240V ac	36-48V	30W
EM1024P	100-240V ac	12V	36W
EM1024Q	100-240V ac	12V	24W
EM1024R	100-240V ac	24V	36W
