EC70A-TGU

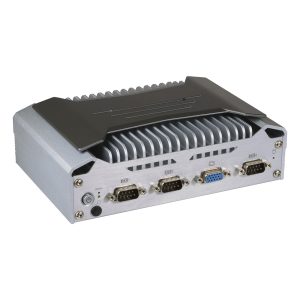

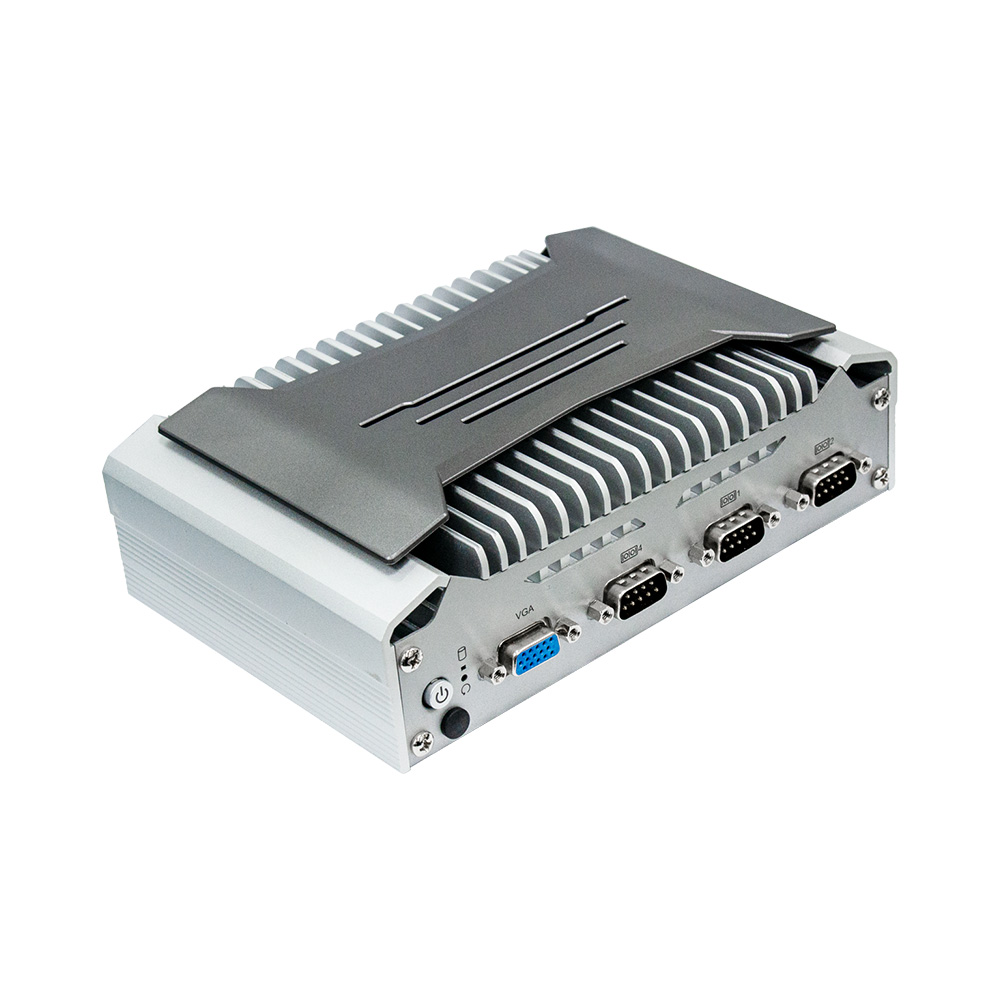

EC70A-TGU from DFI, a compact fanless embedded system powered by 11th Gen Intel Core processors.
It’s optimised for industrial automation and edge computing, combining high CPU and GPU performance in a rugged design.
download the EC70A-TGU data sheet
Access detailed specifications, performance data, and technical drawings for the EC70A-TGU in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The DFI EC70A-TGU is a robust fanless embedded system featuring Intel 11th Gen Tiger Lake UP3 processors (up to i7-1185G7E/1185GRE) with on-board memory plus one SO-DIMM DDR4 slot. It supports triple independent displays via dual HDMI and VGA, up to 4K resolution. The system includes up to four LAN ports, up to six USB 3.1 ports, and RS-232/422/485 serial interfaces. It offers M.2 expansion for 5G, Wi-Fi, and NVMe storage, and operates on 9-36V dc input. Its compact aluminium chassis supports wall, VESA, or DIN-rail mounting and operates from −20°C to 60°C, making it ideal for factory automation and edge control.
