Home Computing Industrial Computers Compact Fanless PCEC700/EC710-ADN

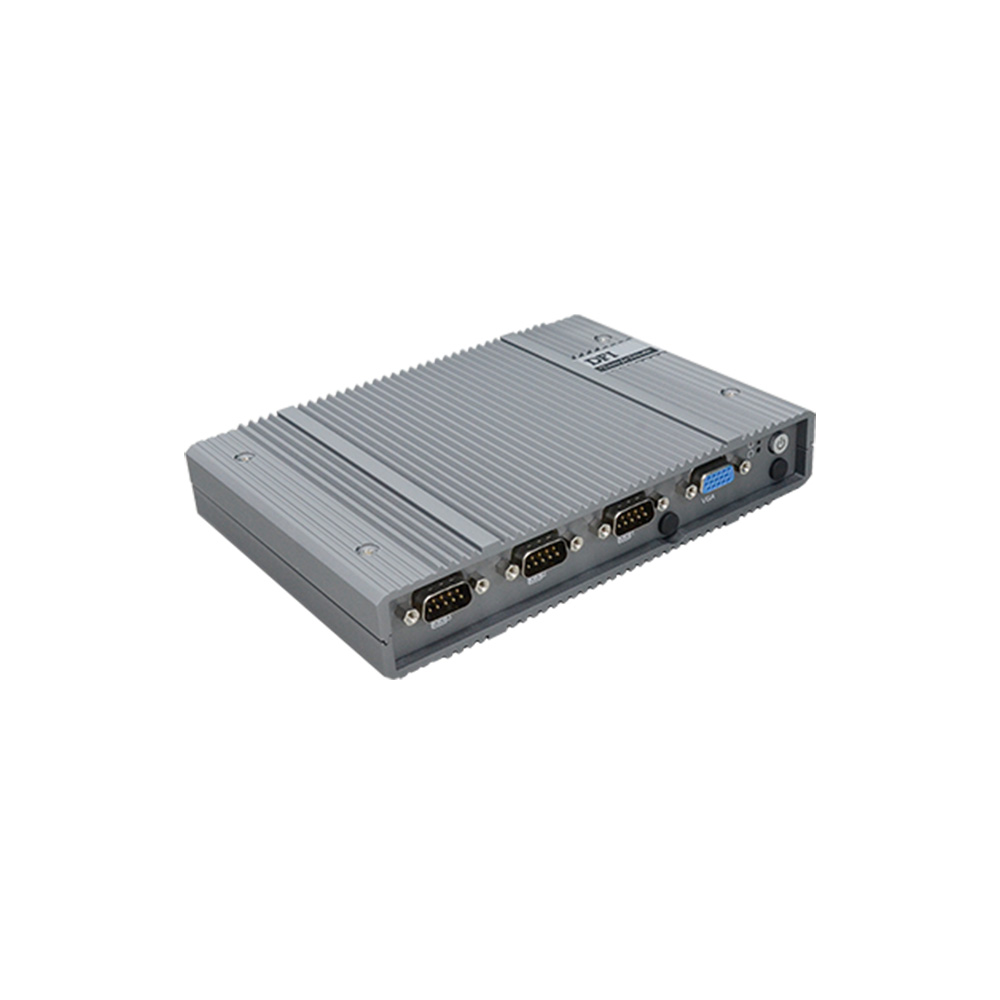

EC700/EC710-ADN

EC700/EC710-ADN from DFI, a compact and reliable fanless embedded system powered by Intel Atom processors.
Designed for industrial automation and IoT applications, it provides efficient performance, flexible expansion, and rugged durability.

Add to Quote

Add to Compare

Category: Compact Fanless PC

Brands: DFI

download the EC700/EC710-ADN data sheet

Access detailed specifications, performance data, and technical drawings for the EC700/EC710-ADN in our comprehensive datasheet.

View downloads

Need a 3D drawing?

Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.

request a drawing

Stuck on specs? Let’s chat

We’re online and ready to chat.

Open chat

The EC700/EC710-ADN is a fanless embedded box PC from DFI featuring Intel Atom x7000RE / x7000E Series processors (Alder Lake-N). It supports DDR5 memory up to 32GB, M.2 and SATA storage, and offers modular expandability with various I/O and PCIe options. The system provides multiple display outputs, rich serial connectivity, and wide 9-36V dc power input for stable operation in industrial settings. With a compact design and extended operating temperature range, the EC700/EC710-ADN meets CE, FCC, and UKCA standards, making it ideal for factory control, digital signage, and edge AI applications.

FEATURES

Computing Type Embedded Box PC

Processor Intel Atom x7000RE / x7000E Series

Memory Support 1 x DDR5 SO-DIMM up to 32GB

Storage Support 1 x M.2 2280 NVMe, 1 x 2.5″ SATA

Operating Temperature -20°C to 60°C

Cooling Method Fanless

Form Factor Compact Embedded Box PC

INDUSTRY

Industrial Automation Computing

No product variations found. This content will display product models when used on a WooCommerce variable product page.

Computing Type:Compact Fanless PCs

Operating System Compatibility:Windows 11 IoT Enterprise, Windows 10 IoT Enterprise, Linux Ubuntu 22.04

Processor:Intel Atom x7425E / x7433RE / x7211E

Chipset:Intel SoC

Memory Support:1 x DDR5 SO-DIMM up to 32GB

Storage Support:1 x M.2 2280 NVMe, 1 x 2.5″ SATA

Expansion Slots:1 x M.2 2230, 1 x M.2 2280, 1 x Mini PCIe

I O Ports:4 x USB 3.2 Gen 2, 2 x LAN, 1 x HDMI, 1 x DP++, 1 x COM, Audio I/O

Form Factor:Compact Embedded Box PC

Operating Temperature:-20°C to 60°C

Ingress Protection:IP20

Safety Approvals:CE, FCC, UKCA

Compliance Standards:Class A

Application Specific Ratings:Industrial grade

Manufacturer:DFI

Warranty:2 years

Cooling Method:Fanless

Mounting Options:Wall mount or DIN-rail mount

Weight:2.2 kg

Dimensions:181.6 x 57 x 118.4 mm

Lan Ports:2 x Intel i226-LM

Edge Interface:GPIO, RS-232, RS-485, DIO, TPM 2.0, SIM slot for 4G/5G

Longevity:10 years supply guarantee
