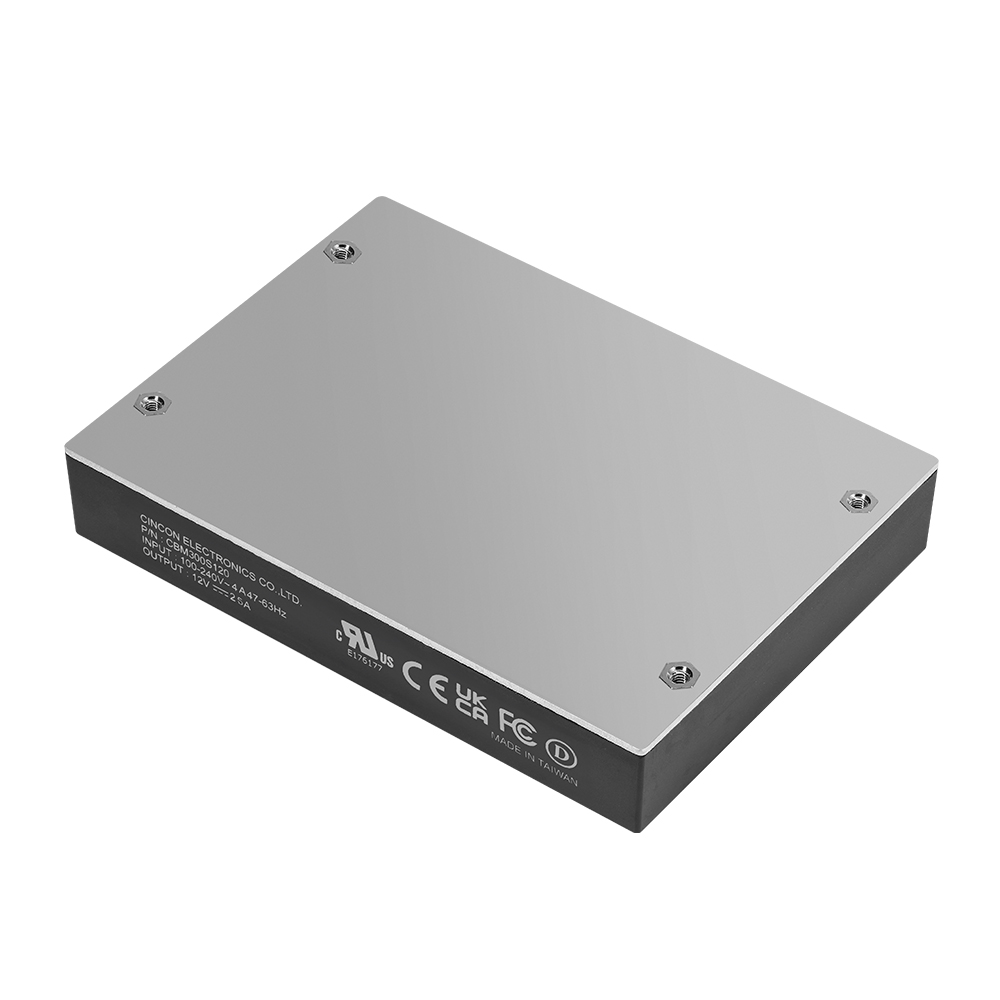

CBM300S Series
CBM300S Series from Cincon, 300W AC-DC brick power supply with PFC.
Ultra-low 19.7mm profile, high efficiency up to 94% and baseplate cooling for fanless operation.
download the CBM300S Series data sheet
Access detailed specifications, performance data, and technical drawings for the CBM300S Series in our comprehensive datasheet.
Need a 3D drawing?
Our engineers can provide detailed 3D drawings to help you visualise dimensions, mounting, and integration before production.
Stuck on specs? Let’s chat
We’re online and ready to chat.
APPLICATION
The CBM300S Series is a 300W ac-dc brick power supply with universal 90-264V ac input and efficiencies up to 94%. With output options from 12V to 54V, the series offers 24.95W/in³ power density and supports peak power of 360W for 5 seconds. Designed with baseplate cooling, it delivers full load without forced air and features OVP, OCP, OTP and continuous short circuit protection. Applications include industrial equipment, communications and control systems. Certified to IEC/EN/UL62368-1, EN55032 Class B, CISPR/FCC Class B.
